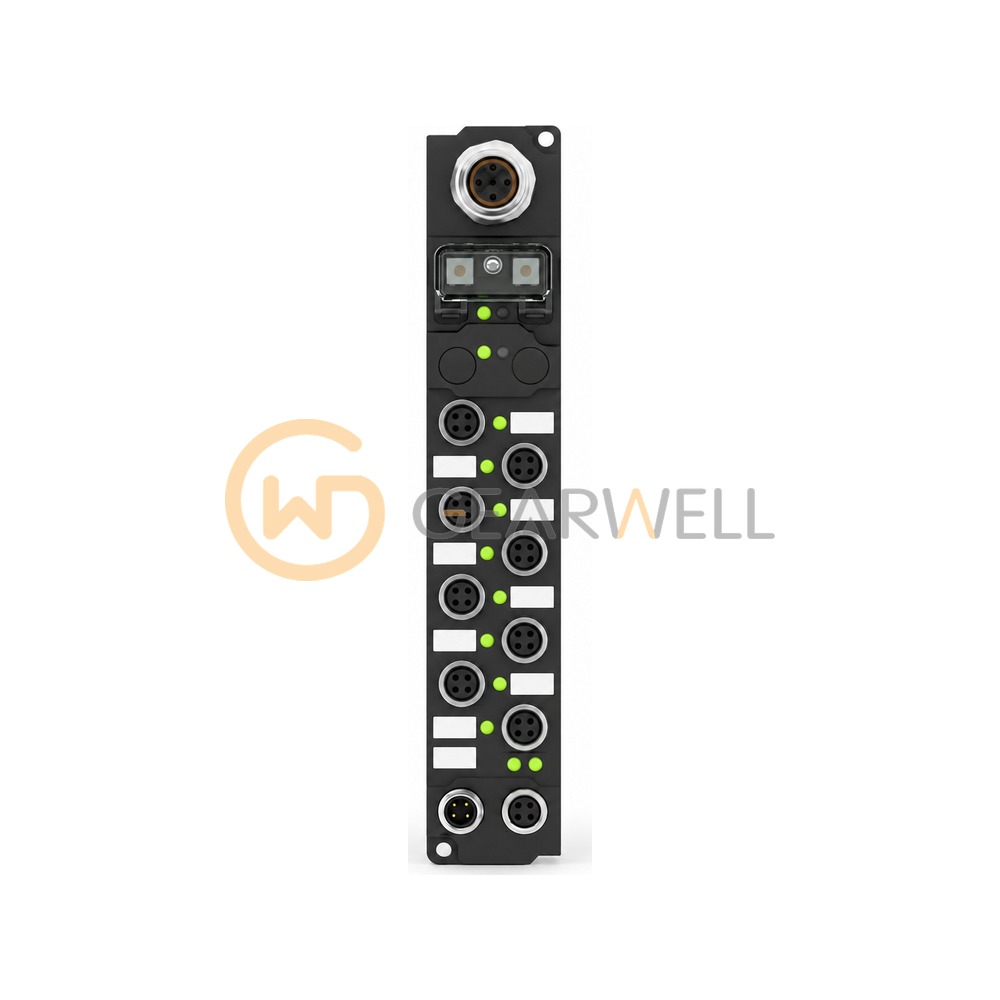

BECKHOFF IP2401-B310 PROFIBUS Fieldbus Box 16-Channel Digital I/O
- Brand
- BECKHOFF
- Model
- IP2401-B310
- GEARWELL SKU
- GWP-000015319
- Category
- PLCs & I/O
Key specifications
- Channels
- 16, usable as input or output
- Fieldbus
- PROFIBUS, up to 12 Mbaud, M12 socket B-coded
- Input filter
- 3 ms
- Protection rating
- IP65/66/67
- Max. output current
- 0.5 A per channel, short-circuit proof
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BECKHOFF IP2401-B310 PROFIBUS Fieldbus Box 16-Channel Digital I/O |
|---|---|
| Brand | BECKHOFF |
| Model | IP2401-B310 |
| Category | PLCs & I/O |
| Channels | 16, usable as input or output |
| Fieldbus | PROFIBUS, up to 12 Mbaud, M12 socket B-coded |
| Input filter | 3 ms |
| Protection rating | IP65/66/67 |
| Max. output current | 0.5 A per channel, short-circuit proof |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Dimensions (W x H x D) | 30 x 175 x 26.5 mm |
