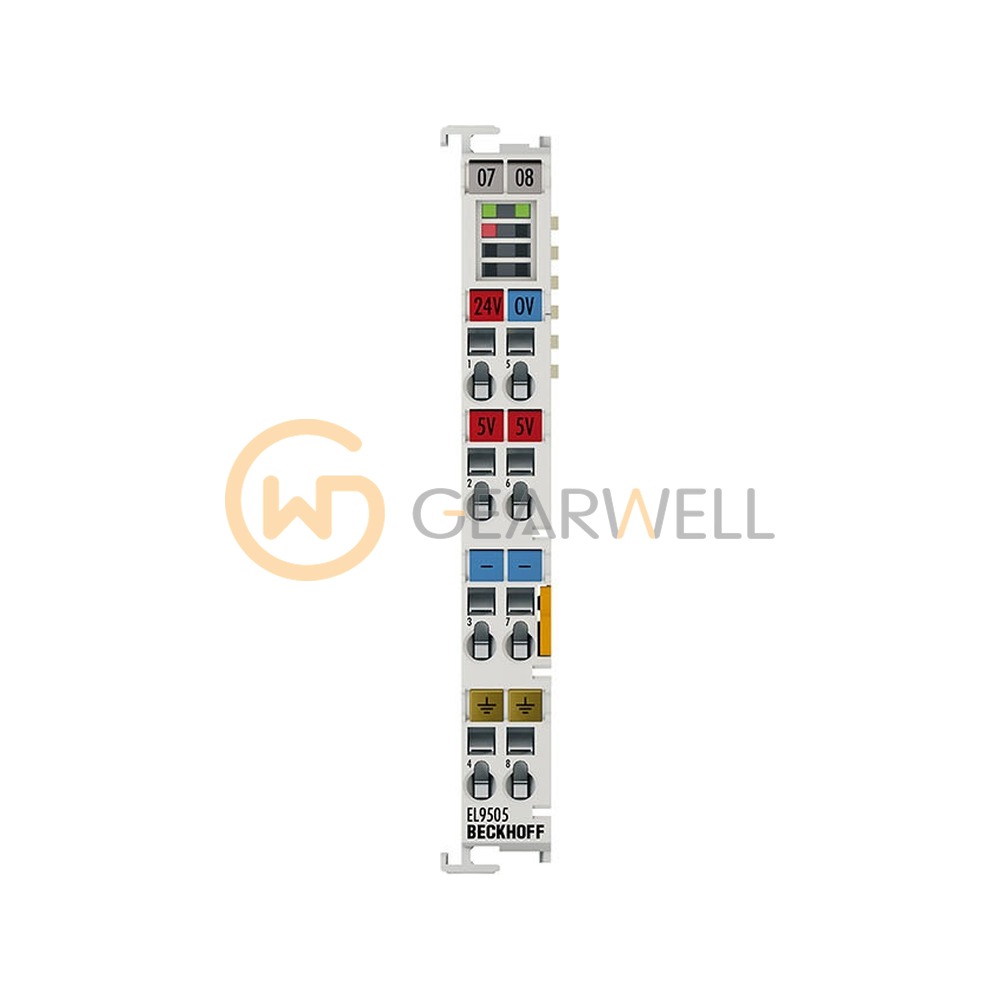

BECKHOFF EL9505 EtherCAT Power Supply Terminal
- Brand
- BECKHOFF
- Model
- EL9505
- GEARWELL SKU
- GWP-000008117
- Category
- PLCs & I/O
Key specifications
- Technology
- power supply terminal with diagnostics and overcurrent LED
- Input voltage
- 24 V DC (-15%/+20%)
- Output current
- 0.5 A
- Output voltage
- 5 V DC ±1%
- Residual ripple
- < 5 mV
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9505 is an EtherCAT power supply terminal that generates a stabilized 5 V DC ±1 % output of up to 0.5 A from a 24 V DC input. The output is short-circuit proof, and diagnostics are reported in the process image. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9505 EtherCAT Power Supply Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9505 |
| Category | PLCs & I/O |
| Technology | power supply terminal with diagnostics and overcurrent LED |
| Input voltage | 24 V DC (-15%/+20%) |
| Output current | 0.5 A |
| Output voltage | 5 V DC ±1% |
| Residual ripple | < 5 mV |
| Short-circuit proof | yes |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption E-bus | 90 mA |
