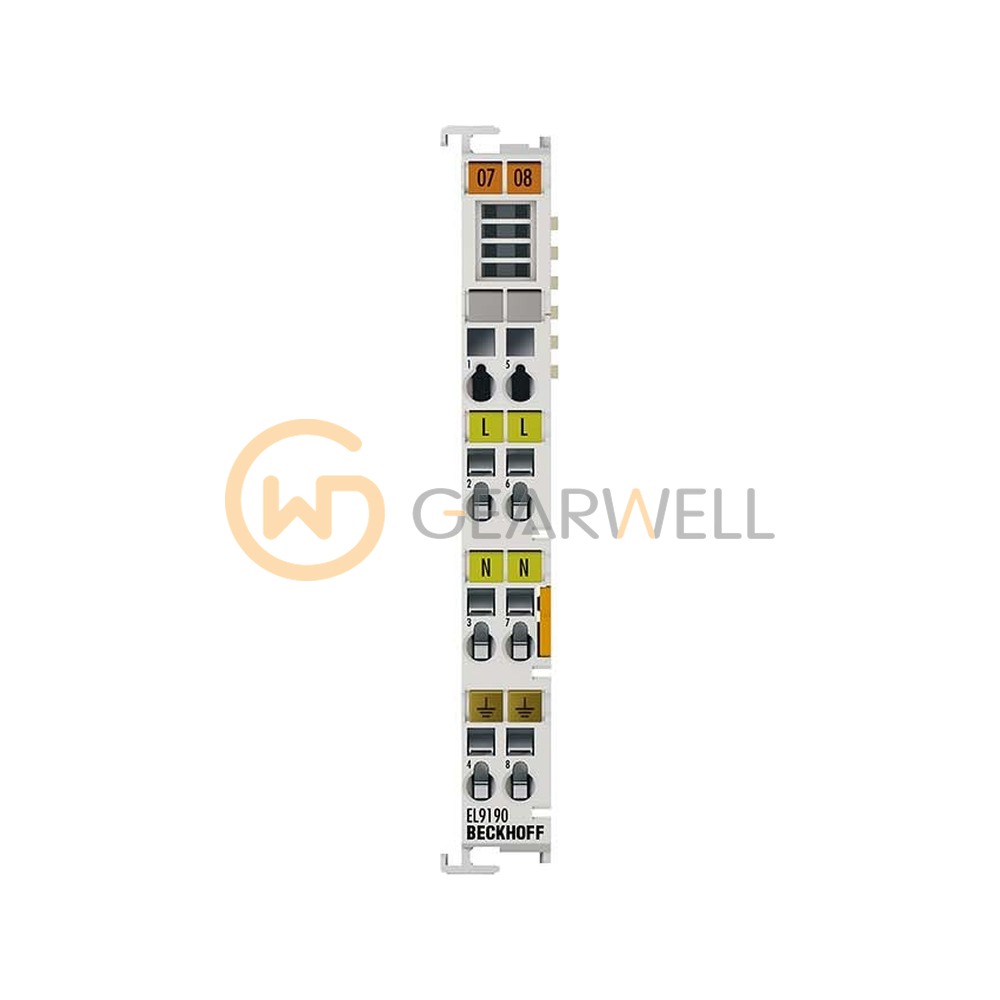

BECKHOFF EL9190 EtherCAT Potential Supply Terminal
- Brand
- BECKHOFF
- Model
- EL9190
- GEARWELL SKU
- GWP-000007144
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 50 g
- Technology
- potential supply terminal
- Current load
- ≤ 10 A
- Housing width
- 12 mm
- Nominal voltage
- arbitrary up to 230 V AC/DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9190 is a potential supply terminal for EtherCAT for any voltage up to 230 V AC/DC, feeding up to 10 A to the power contacts within a terminal station. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9190 EtherCAT Potential Supply Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9190 |
| Category | PLCs & I/O |
| Weight | approx. 50 g |
| Technology | potential supply terminal |
| Current load | ≤ 10 A |
| Housing width | 12 mm |
| Nominal voltage | arbitrary up to 230 V AC/DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| Operating temperature | -25…+60 °C |
| Bit width in the process image | 0 |
