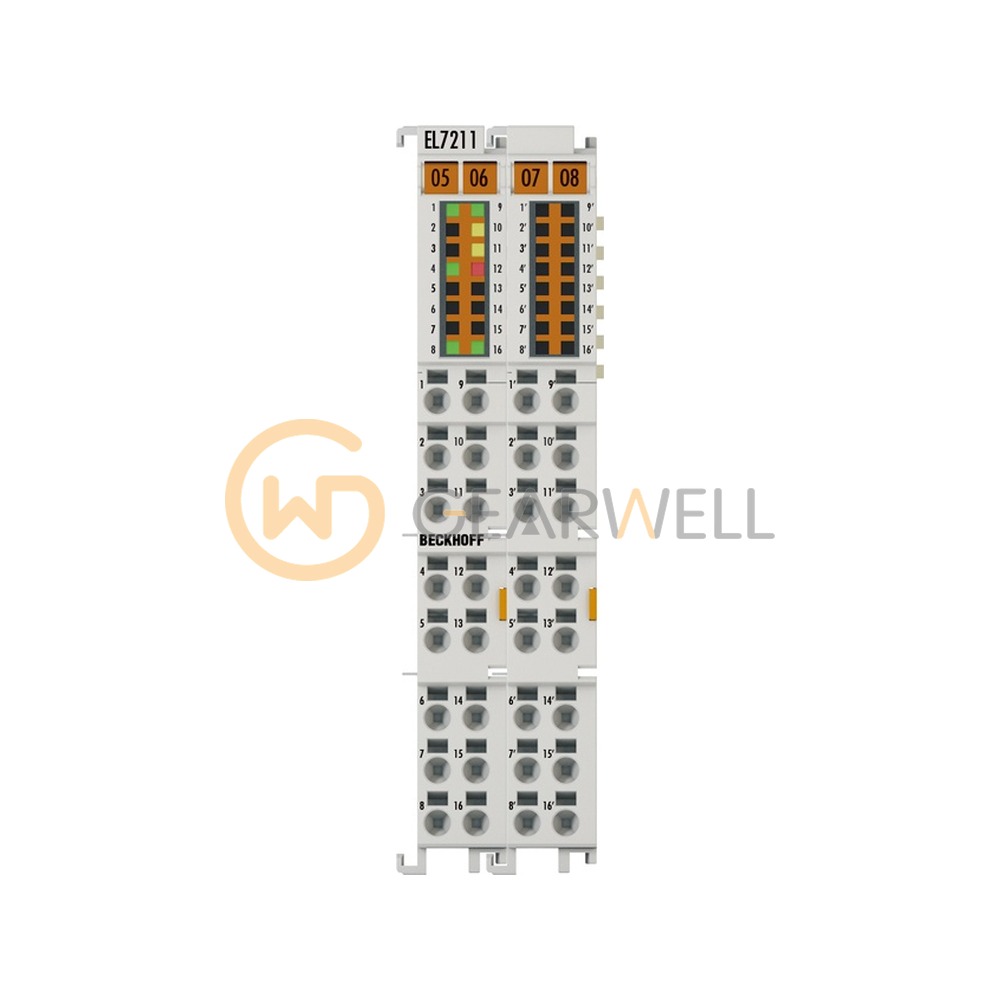

BECKHOFF EL7211 EtherCAT 1-Channel Servo Motor Terminal
- Brand
- BECKHOFF
- Model
- EL7211
- GEARWELL SKU
- GWP-000008109
- Category
- PLCs & I/O
Key specifications
- Load type
- permanent magnet synchronous motor (PMSM)
- Technology
- compact drive technology
- Number of inputs
- 1 x feedback
- Number of outputs
- 1 x servomotor, 1 x motor brake
- Number of channels
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL7211 is a 1-channel servo motor terminal for EtherCAT for permanent magnet synchronous motors with resolver feedback, at 8 to 48 V DC. It delivers 4.5 A rms (9 A peak for 1 s) and has a 24 V DC motor brake output. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL7211 EtherCAT 1-Channel Servo Motor Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL7211 |
| Category | PLCs & I/O |
| Load type | permanent magnet synchronous motor (PMSM) |
| Technology | compact drive technology |
| Number of inputs | 1 x feedback |
| Number of outputs | 1 x servomotor, 1 x motor brake |
| Number of channels | 1 |
| Supply voltage power | 8…48 V DC (external) |
| Connection technology | direct motor connection + feedback |
| Supply voltage electronics | 24 V DC (via power contacts) |
