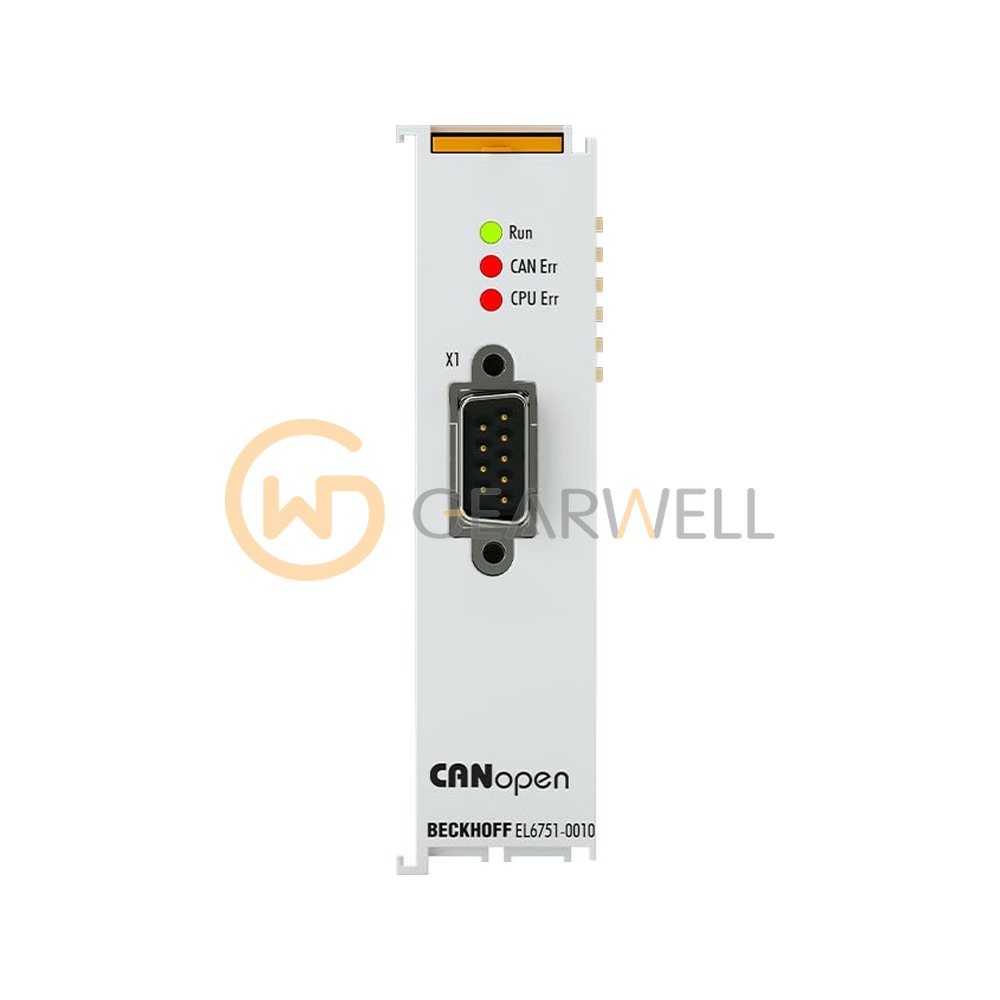

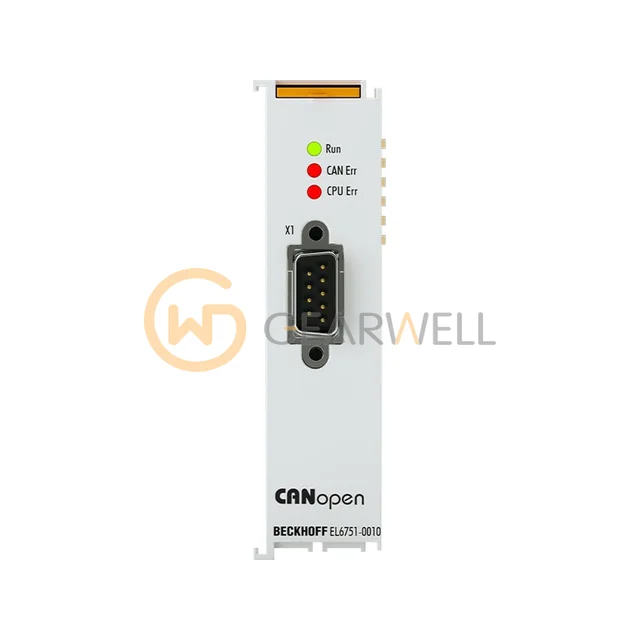

BECKHOFF EL6751-0010 EtherCAT 1-Channel CANopen Interface Terminal
- Brand
- BECKHOFF
- Model
- EL6751-0010
- GEARWELL SKU
- GWP-000008107
- Category
- PLCs & I/O
Key specifications
- Fieldbus
- CANopen
- Technology
- CANopen slave terminal
- Communication
- CANopen network master and CANopen manager, optionally CANopen slave
- Number of devices
- max. 127 slaves
- Transmission rate
- 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL6751-0010 is the CANopen slave version of the EL6751 interface terminal for EtherCAT, for 10 to 1,000 kbaud via a galvanically decoupled 9-pin D-sub connector. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL6751-0010 EtherCAT 1-Channel CANopen Interface Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL6751-0010 |
| Category | PLCs & I/O |
| Fieldbus | CANopen |
| Technology | CANopen slave terminal |
| Communication | CANopen network master and CANopen manager, optionally CANopen slave |
| Number of devices | max. 127 slaves |
| Transmission rate | 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud |
| Number of channels | 1 |
| Hardware diagnostics | status LEDs |
| Current consumption E-bus | typ. 230 mA |
