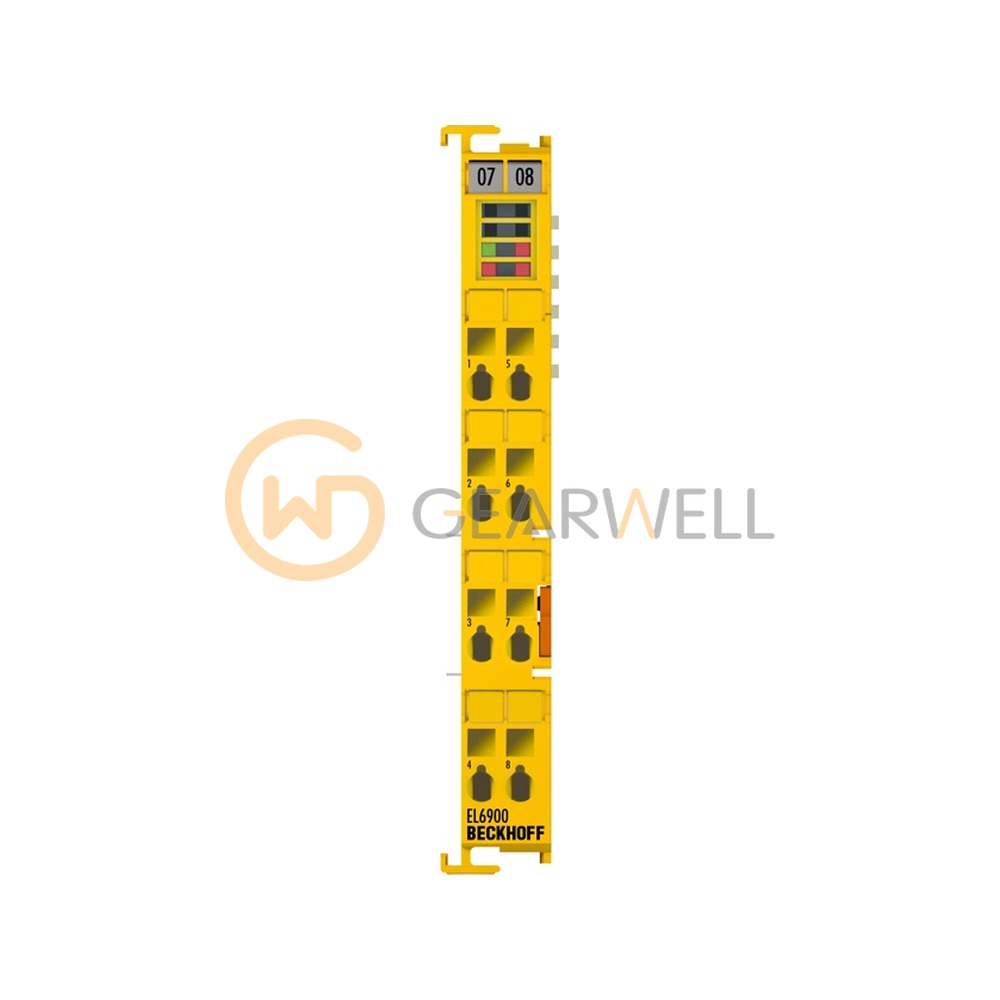

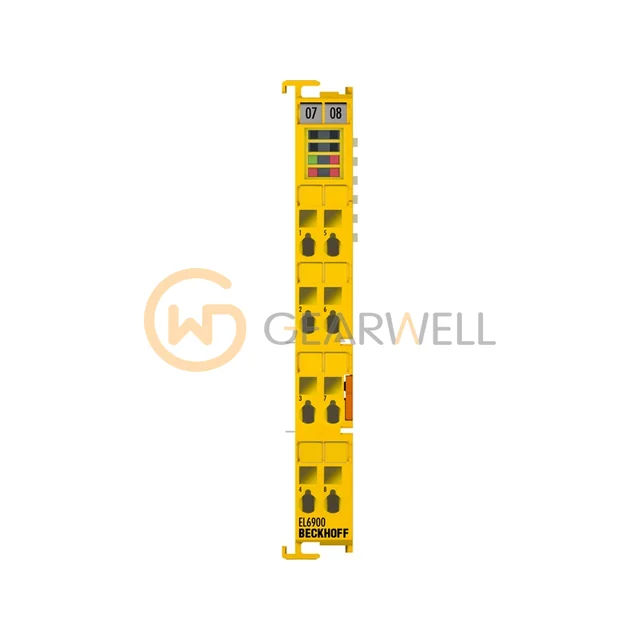

BECKHOFF EL6900 EtherCAT TwinSAFE Logic Terminal
- Brand
- BECKHOFF
- Model
- EL6900
- GEARWELL SKU
- GWP-000008108
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 50 g
- Protocol
- TwinSAFE/Safety over EtherCAT
- Cycle time
- approx. 500 µs/according to project size
- Safety standard
- DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
- Protection rating
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL6900 is a TwinSAFE logic terminal for EtherCAT that runs the safety program and links the TwinSAFE inputs and outputs via Safety over EtherCAT. It is certified to EN ISO 13849-1 Cat. 4/PL e and EN 61508 SIL 3. Check the full order number and the TwinSAFE project of the existing machine when requesting a quote.
Technical reference
| Product name | BECKHOFF EL6900 EtherCAT TwinSAFE Logic Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL6900 |
| Category | PLCs & I/O |
| Weight | approx. 50 g |
| Protocol | TwinSAFE/Safety over EtherCAT |
| Cycle time | approx. 500 µs/according to project size |
| Safety standard | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
| Protection rating | IP20 |
| Fault response time | ≤ watchdog time (parameterizable) |
| Current consumption E-bus | typ. 188 mA |
