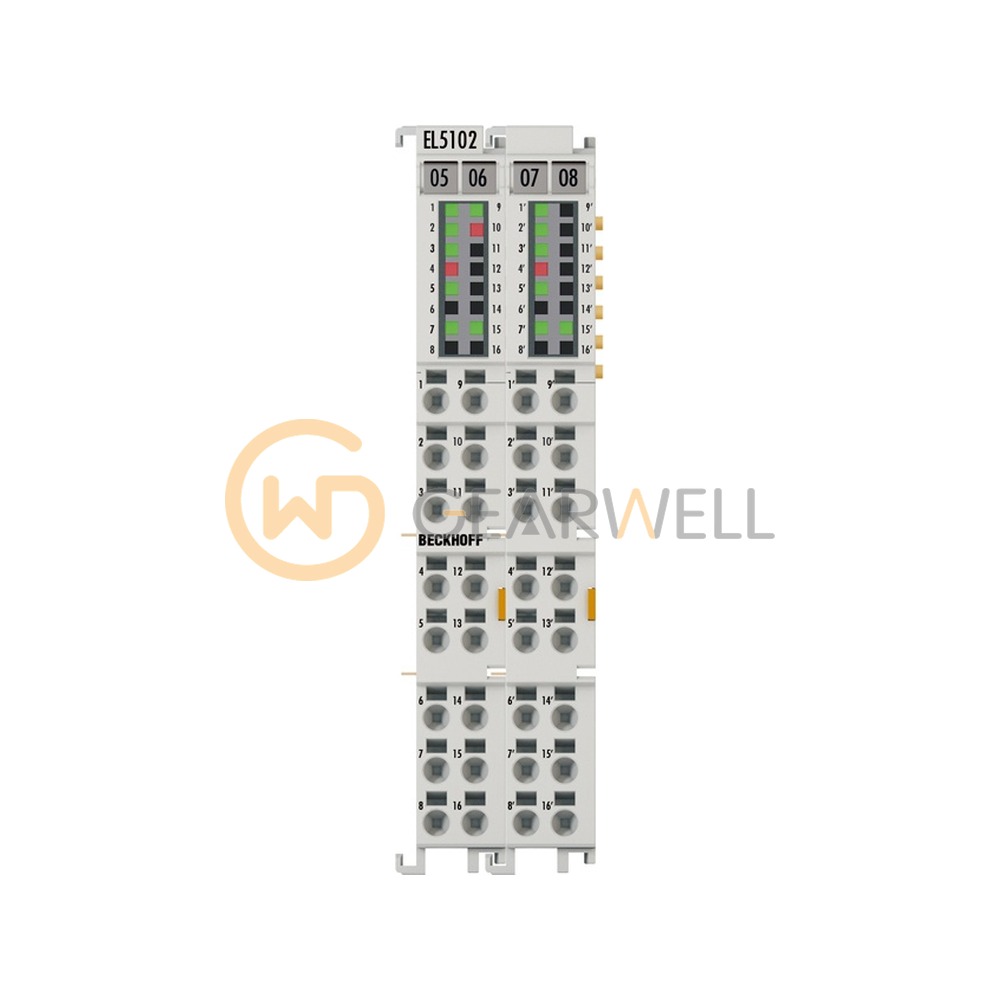

BECKHOFF EL5102 EtherCAT 2-Channel Encoder Interface Terminal
- Brand
- BECKHOFF
- Model
- EL5102
- GEARWELL SKU
- GWP-000007138
- Category
- PLCs & I/O
Key specifications
- Counter
- 32 bit (default), 16/32 bit switchable
- Resolution
- 1/256 bit microincrements
- Number of channels
- 2
- Quadrature decoder
- 4-fold evaluation (default), 2-fold, 1-fold evaluation switchable
- Electrical isolation
- 500 V (E-bus/field potential)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL5102 is a 2-channel incremental encoder interface terminal for EtherCAT for 5 V DC signals (RS422 differential, TTL or open collector) up to 5 MHz. It has a 32-bit counter with 4-fold evaluation, latch and gate inputs, wire break detection for RS422 encoders, and a switchable 5, 12 or 24 V DC encoder supply. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL5102 EtherCAT 2-Channel Encoder Interface Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL5102 |
| Category | PLCs & I/O |
| Counter | 32 bit (default), 16/32 bit switchable |
| Resolution | 1/256 bit microincrements |
| Number of channels | 2 |
| Quadrature decoder | 4-fold evaluation (default), 2-fold, 1-fold evaluation switchable |
| Electrical isolation | 500 V (E-bus/field potential) |
| Wire break detection | yes, for RS422 encoder |
| Current consumption E-bus | typ. 210 mA |
| Current consumption power contacts | typ. 20 mA + load |
