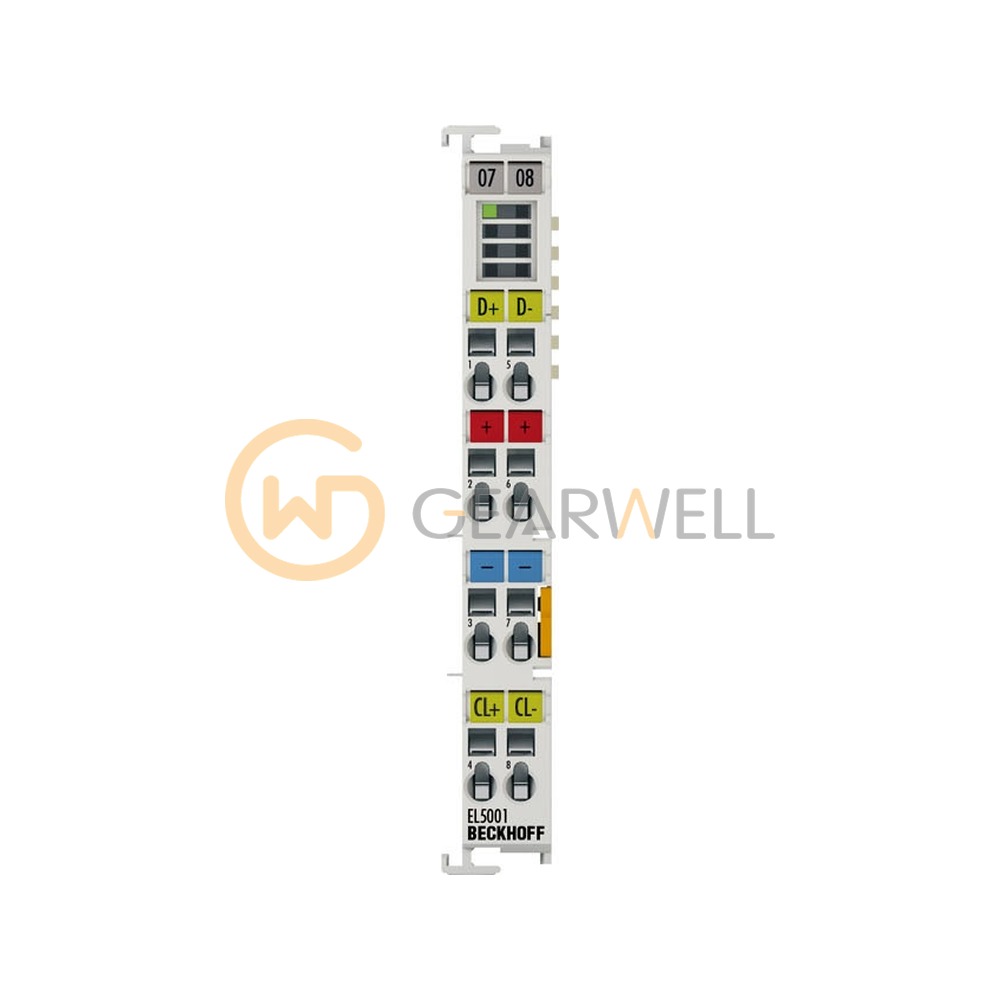

BECKHOFF EL5001 EtherCAT 1-Channel Encoder Interface Terminal
- Brand
- BECKHOFF
- Model
- EL5001
- GEARWELL SKU
- GWP-000007137
- Category
- PLCs & I/O
Key specifications
- Technology
- SSI encoder interface
- Power supply
- 24 V via power contacts
- Signal input (data)
- difference signal (RS422)
- Transmission rate
- variable up to 1 MHz, 250 kHz default
- Encoder connection
- D+, D-, Cl+, Cl-
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL5001 is a 1-channel SSI encoder interface terminal for EtherCAT, with RS422 differential clock and data lines and 24 V DC encoder supply from the power contacts. The transmission rate is variable up to 1 MHz, with data length up to 32 bit. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL5001 EtherCAT 1-Channel Encoder Interface Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL5001 |
| Category | PLCs & I/O |
| Technology | SSI encoder interface |
| Power supply | 24 V via power contacts |
| Signal input (data) | difference signal (RS422) |
| Transmission rate | variable up to 1 MHz, 250 kHz default |
| Encoder connection | D+, D-, Cl+, Cl- |
| Number of channels | 1 |
| Signal output (pulse) | difference signal (RS422) |
| Encoder operating voltage | 24 V DC (generated from the power contacts) |
