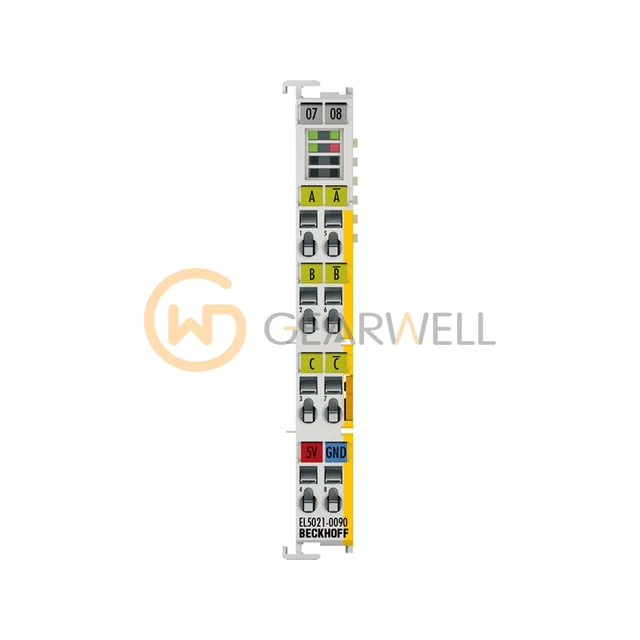

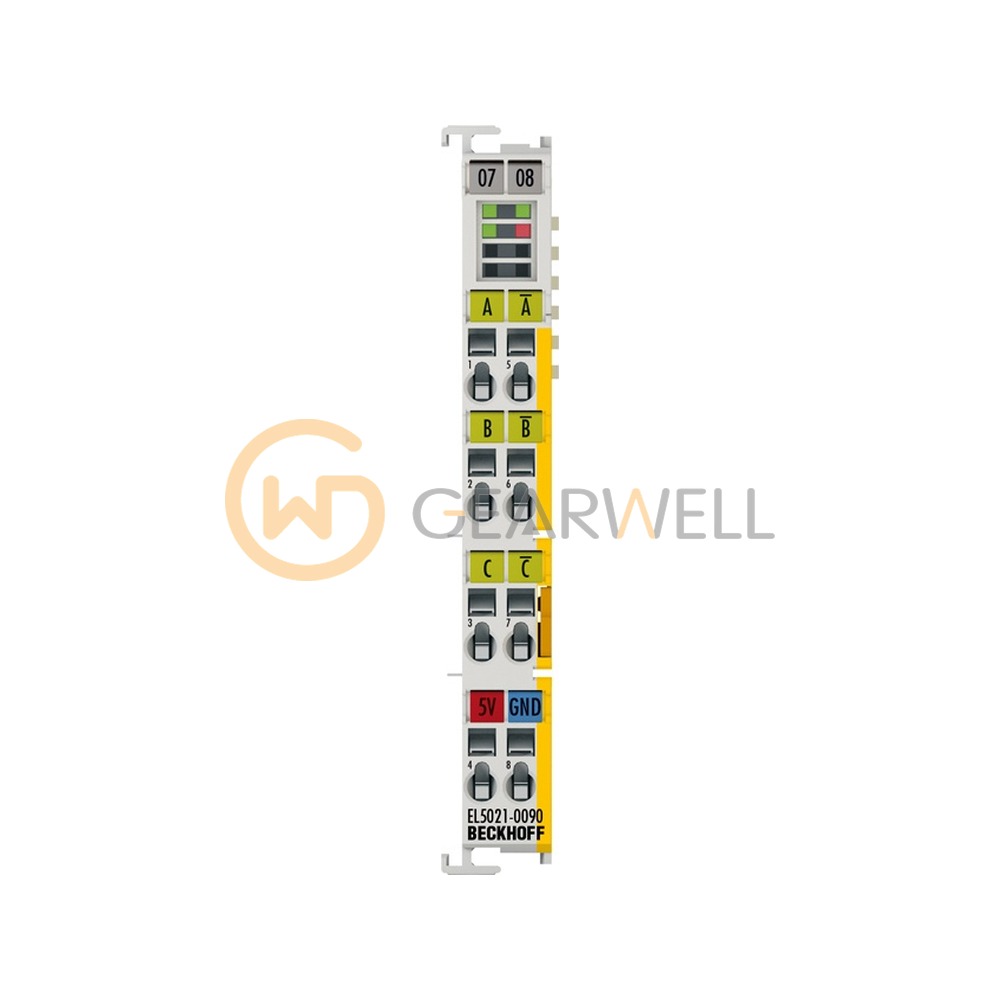

BECKHOFF EL5021-0090 EtherCAT 1-Channel Encoder Interface Terminal
- Brand
- BECKHOFF
- Model
- EL5021-0090
- GEARWELL SKU
- GWP-000008095
- Category
- PLCs & I/O
Key specifications
- Counter
- max. 24 bit (adjustable)
- Resolution
- max. 13 bit, 8192 steps per period
- Technology
- SinCos encoder interface for differential 1 V PP signal
- Input frequency
- 250 kHz (scanning of the input signals with 70 MHz)
- Nominal voltage
- 24 V DC (-15%/+20%)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL5021-0090 is a 1-channel SinCos encoder interface terminal for EtherCAT for differential 1 Vpp signals, with a 5 V DC encoder supply generated from the 24 V DC power contacts. It accepts input frequencies up to 250 kHz with up to 8,192 steps per period. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL5021-0090 EtherCAT 1-Channel Encoder Interface Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL5021-0090 |
| Category | PLCs & I/O |
| Counter | max. 24 bit (adjustable) |
| Resolution | max. 13 bit, 8192 steps per period |
| Technology | SinCos encoder interface for differential 1 V PP signal |
| Input frequency | 250 kHz (scanning of the input signals with 70 MHz) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Encoder connection | 1 x A, B, C: differential inputs 1 Vpp: A, A̅ (inv), B, B̅ (inv), C,C̅ (inv) |
| Number of channels | 1 |
| Encoder operating voltage | 5 V DC/max. 0.5 A (generated from the 24 V DC power contacts) |
