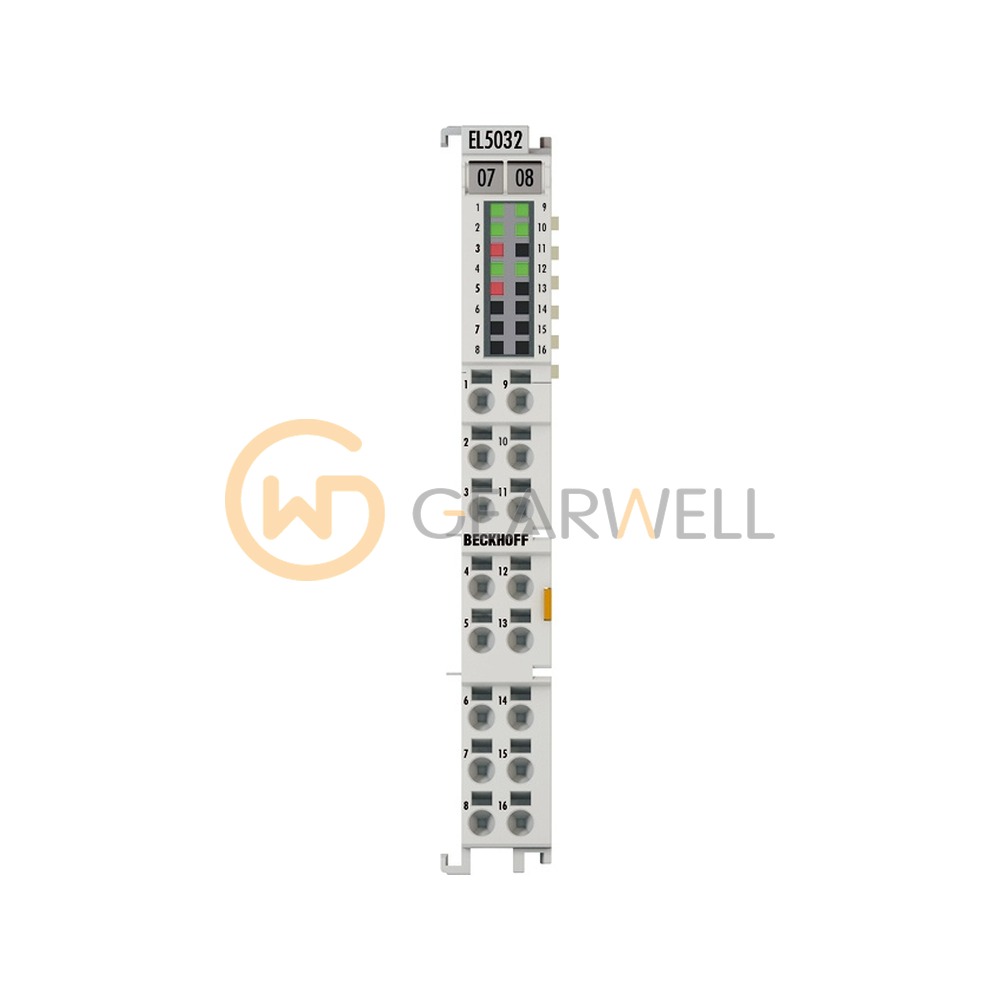

BECKHOFF EL5032 EtherCAT 2-Channel Encoder Interface Terminal
- Brand
- BECKHOFF
- Model
- EL5032
- GEARWELL SKU
- GWP-000008096
- Category
- PLCs & I/O
Key specifications
- Resolution
- max. 48 bit position
- Technology
- EnDat 2.2 ® interface (order designation EnDat22)
- Encoder connection
- D+, D-, C+, C-
- Number of channels
- 2
- Electrical isolation
- 500 V (E-bus/field potential)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL5032 is a 2-channel EnDat 2.2 encoder interface terminal for EtherCAT, with up to 48-bit position resolution and distributed clocks support. The encoder supply is selectable as 5 V or 9 V DC (0.5 A total), generated from the 24 V DC power contacts. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL5032 EtherCAT 2-Channel Encoder Interface Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL5032 |
| Category | PLCs & I/O |
| Resolution | max. 48 bit position |
| Technology | EnDat 2.2 ® interface (order designation EnDat22) |
| Encoder connection | D+, D-, C+, C- |
| Number of channels | 2 |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption E-bus | typ. 120 mA |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Current consumption power contacts | typ. 150 mA + load |
