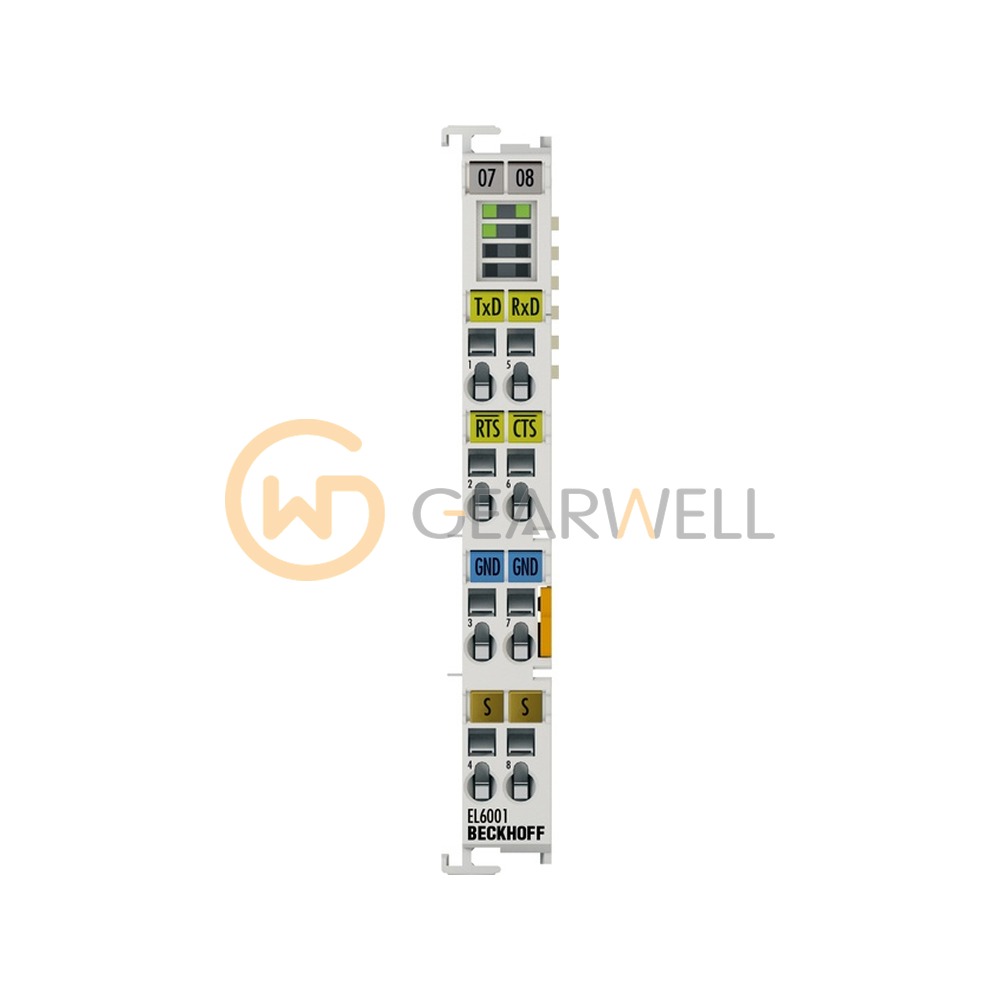

BECKHOFF EL6001 EtherCAT 1-Channel Serial Interface Terminal
- Brand
- BECKHOFF
- Model
- EL6001
- GEARWELL SKU
- GWP-000008097
- Category
- PLCs & I/O
Key specifications
- Interfaces
- 1 x RS232
- Cable length
- max. 15 m
- Power supply
- via the E-bus
- Bit distortion
- < 3%
- Transmission rate
- 2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL6001 is a 1-channel RS232 serial interface terminal for EtherCAT, at 2,400 to 115,200 baud (9,600 baud default). It supports cable lengths up to 15 m and is powered from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL6001 EtherCAT 1-Channel Serial Interface Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL6001 |
| Category | PLCs & I/O |
| Interfaces | 1 x RS232 |
| Cable length | max. 15 m |
| Power supply | via the E-bus |
| Bit distortion | < 3% |
| Transmission rate | 2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Connection technology | terminal contact |
| Data transfer channels | 2 (1/1), TxD and RxD, full duplex |
