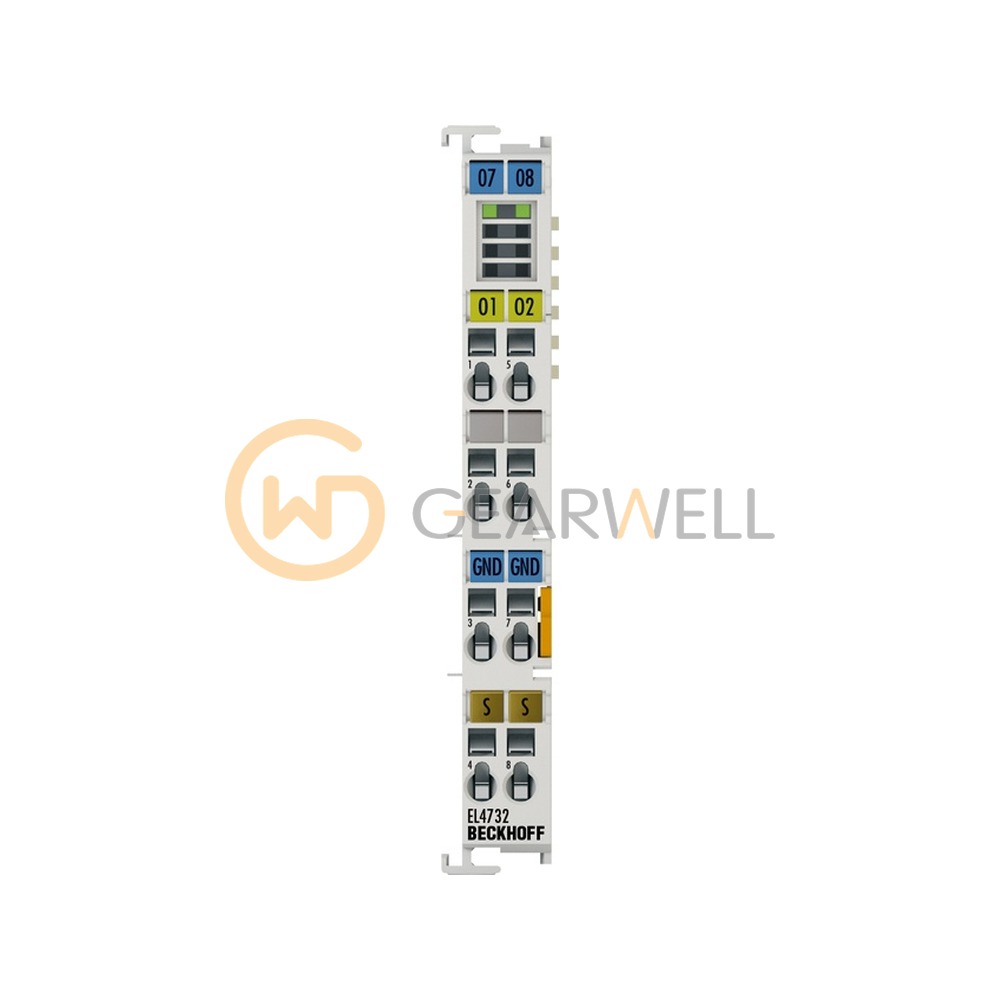

BECKHOFF EL4732 EtherCAT 2-Channel Analog Output Terminal
- Brand
- BECKHOFF
- Model
- EL4732
- GEARWELL SKU
- GWP-000008094
- Category
- PLCs & I/O
Key specifications
- Load
- > 5 kΩ (short-circuit proof)
- Resolution
- 16 bit (incl. sign)
- Output error
- < 0.1% (relative to end value)
- Power supply
- via the E-bus
- Number of outputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL4732 is a 2-channel oversampling analog output terminal for EtherCAT for -10 to +10 V signals, with 16-bit resolution and an output error below 0.1 % of the end value. It outputs up to 100 ksamples/s with an oversampling factor selectable from 1 to 100. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL4732 EtherCAT 2-Channel Analog Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL4732 |
| Category | PLCs & I/O |
| Load | > 5 kΩ (short-circuit proof) |
| Resolution | 16 bit (incl. sign) |
| Output error | < 0.1% (relative to end value) |
| Power supply | via the E-bus |
| Number of outputs | 2 |
| Oversampling factor | n = 1…100 selectable |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Distributed clock accuracy | << 1 µs |
