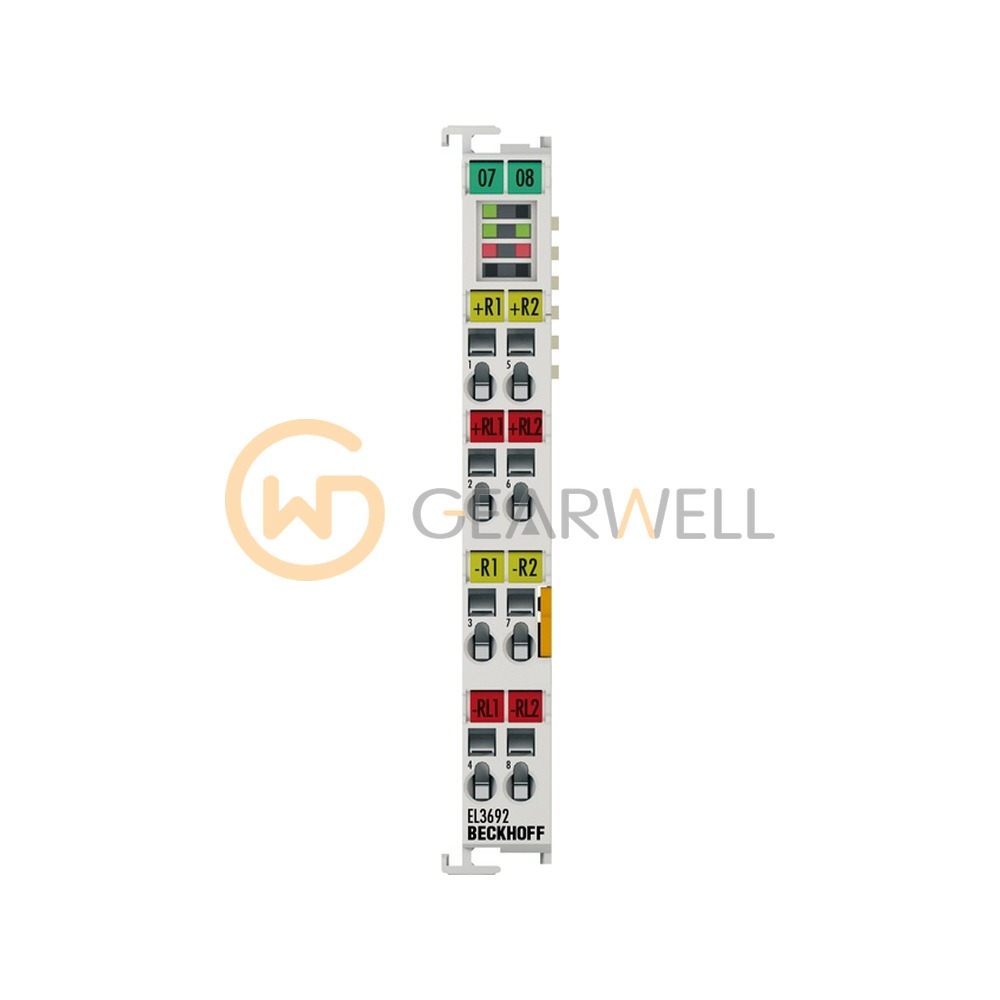

BECKHOFF EL3692 EtherCAT 2-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3692
- GEARWELL SKU
- GWP-000008071
- Category
- PLCs & I/O
Key specifications
- Power supply
- via the E-bus
- Conversion time
- typ. 10…400 ms, dependent on measuring range and settings
- Measuring range
- 100 mΩ, 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ
- Range switching
- automatic or through control
- Number of inputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3692 is a 2-channel resistance measurement terminal for EtherCAT with ranges from 100 mΩ to 10 MΩ, selected automatically or by the controller. It has 24-bit resolution and wire break detection, with an error below ±0.5 % of the range's full scale in 4-wire connection. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3692 EtherCAT 2-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3692 |
| Category | PLCs & I/O |
| Power supply | via the E-bus |
| Conversion time | typ. 10…400 ms, dependent on measuring range and settings |
| Measuring range | 100 mΩ, 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ |
| Range switching | automatic or through control |
| Number of inputs | 2 |
| Internal resistance | > 100 MΩ |
| Wire break detection | yes |
| Input filter cut-off frequency | 100 Hz |
