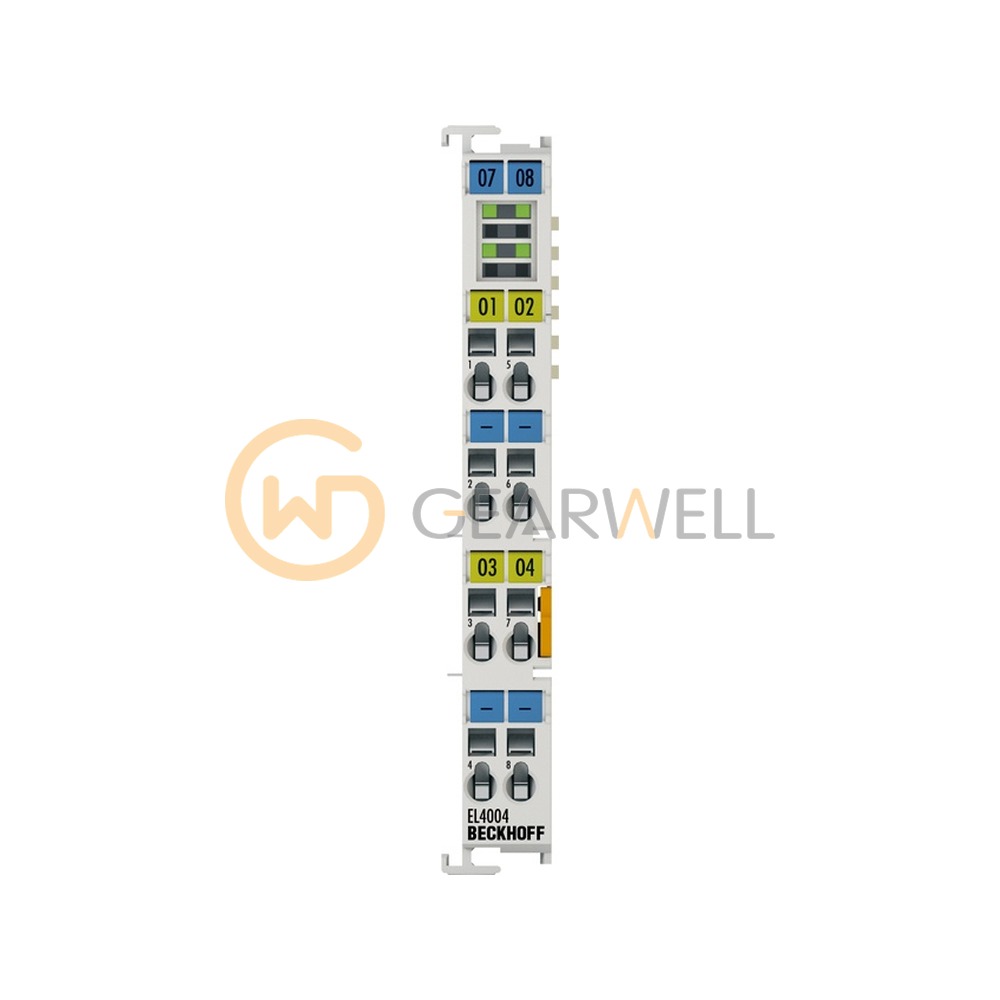

BECKHOFF EL4004 EtherCAT 4-Channel Analog Output Terminal
- Brand
- BECKHOFF
- Model
- EL4004
- GEARWELL SKU
- GWP-000008075
- Category
- PLCs & I/O
Key specifications
- Load
- > 5 kΩ (short-circuit proof)
- Resolution
- 12 bit
- Output error
- < 0.1% (relative to end value)
- Power supply
- 24 V DC via power contacts
- Conversion time
- ~ 250 µs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL4004 is a 4-channel analog output terminal for EtherCAT for 0 to 10 V signals, with 12-bit resolution and an output error below 0.1 % of the end value. Outputs are short-circuit proof for loads above 5 kΩ, and a watchdog can set a user-specific output value. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL4004 EtherCAT 4-Channel Analog Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL4004 |
| Category | PLCs & I/O |
| Load | > 5 kΩ (short-circuit proof) |
| Resolution | 12 bit |
| Output error | < 0.1% (relative to end value) |
| Power supply | 24 V DC via power contacts |
| Conversion time | ~ 250 µs |
| Number of outputs | 4 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Distributed clock accuracy | << 1 µs |
