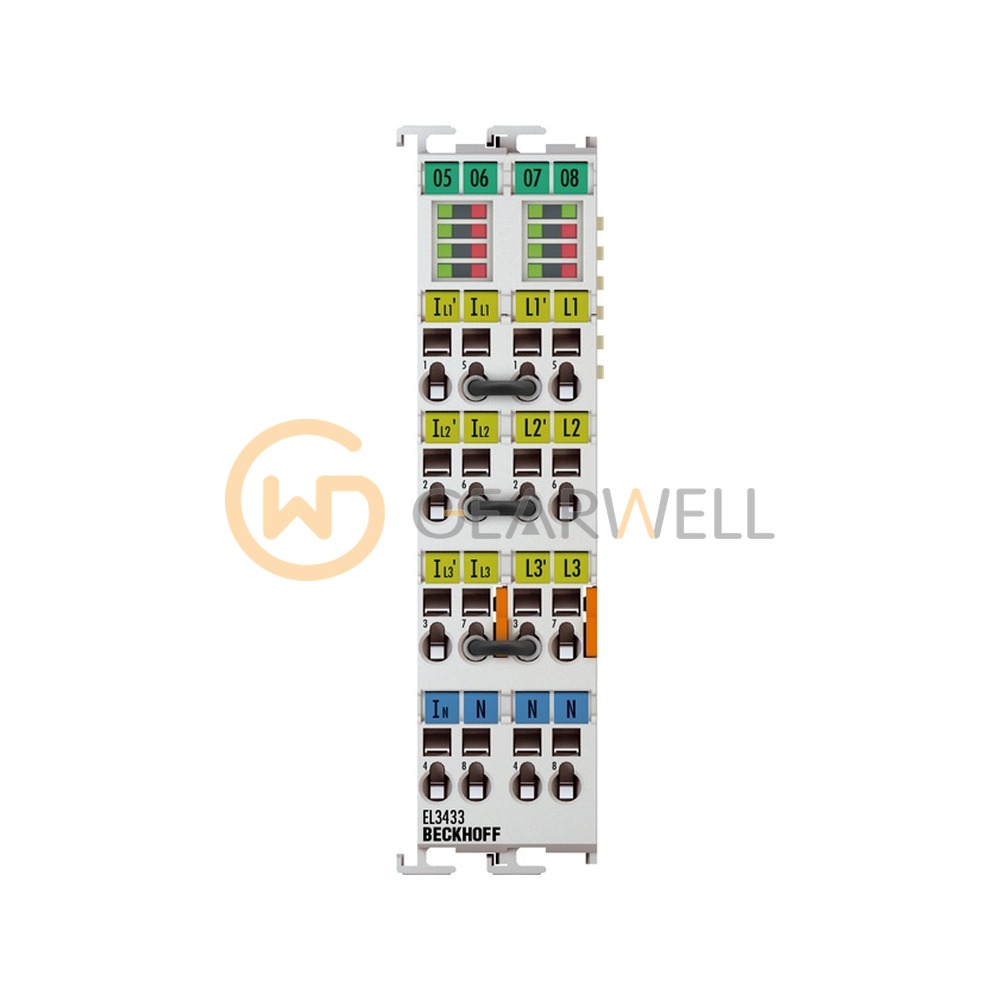

BECKHOFF EL3433 EtherCAT 3-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3433
- GEARWELL SKU
- GWP-000008017
- Category
- PLCs & I/O
Key specifications
- Resolution
- 1 μA, 0.1 mV, 10 mW
- Technology
- 3-phase power measurement for alternating voltages
- Signal type
- single-ended
- Conversion time
- mains-synchronous
- Number of inputs
- 4 x current, 3 x voltage
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3433 is a 3-phase power measurement terminal for EtherCAT with internal current transformers, measuring currents up to 10 A AC directly (I1, I2, I3 and In) and voltages up to 500 V AC 3~ (288 V AC phase to neutral). It provides voltage, effective, reactive and apparent power, energy, cos φ, frequency and harmonic analysis up to the 21st harmonic, with a resolution of 1 µA, 0.1 mV and 10 mW and a measurement error of 0.5 % of full scale (U/I) and 1 % for calculated values. It has 4500 V electrical isolation, draws typically 200 mA from the E-bus and is rated IP20 for -25 to +60 °C; Beckhoff lists it as a service-phase product. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3433 EtherCAT 3-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3433 |
| Category | PLCs & I/O |
| Resolution | 1 μA, 0.1 mV, 10 mW |
| Technology | 3-phase power measurement for alternating voltages |
| Signal type | single-ended |
| Conversion time | mains-synchronous |
| Number of inputs | 4 x current, 3 x voltage |
| Measuring current | max. 10 A (AC) |
| Measuring voltage | max. 500 V AC 3~ (UL X -N: max. 288 V AC) |
| Measurement error/uncertainty | 0.5% relative to full scale value (U/I), 1% calculated value |
