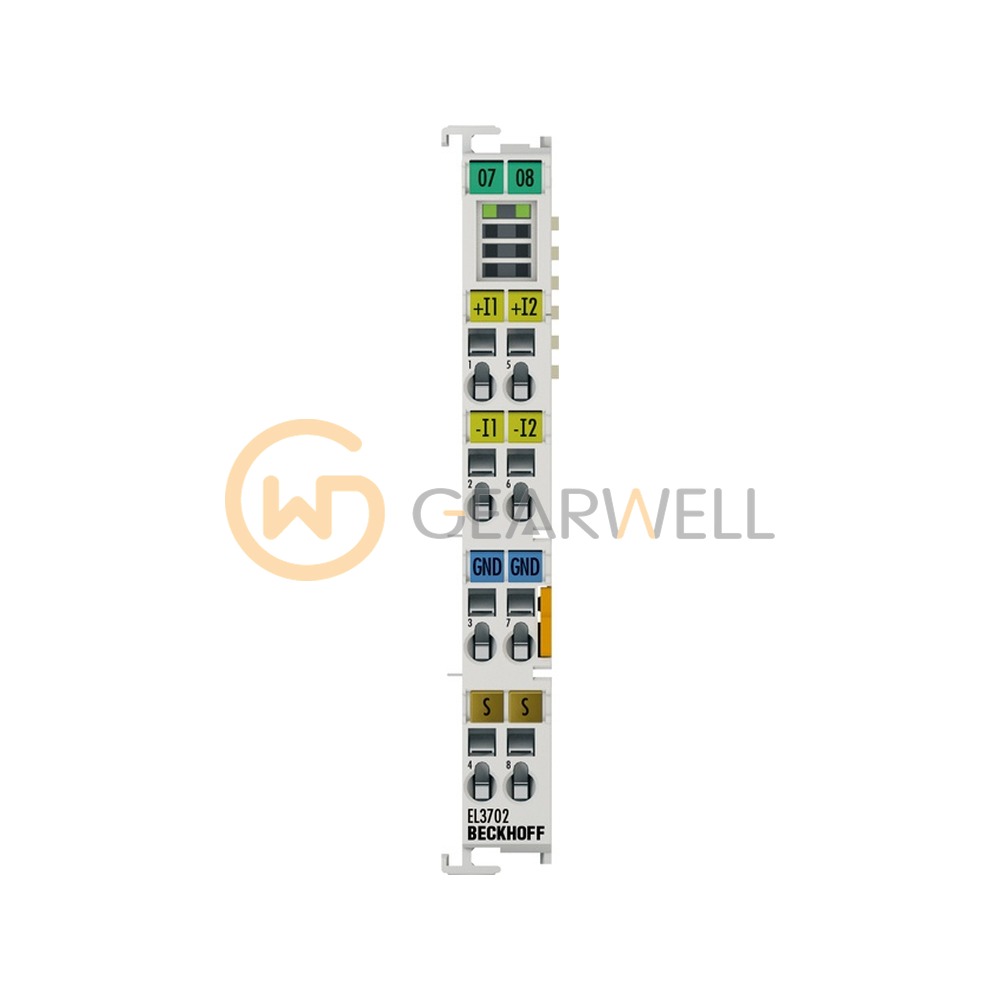

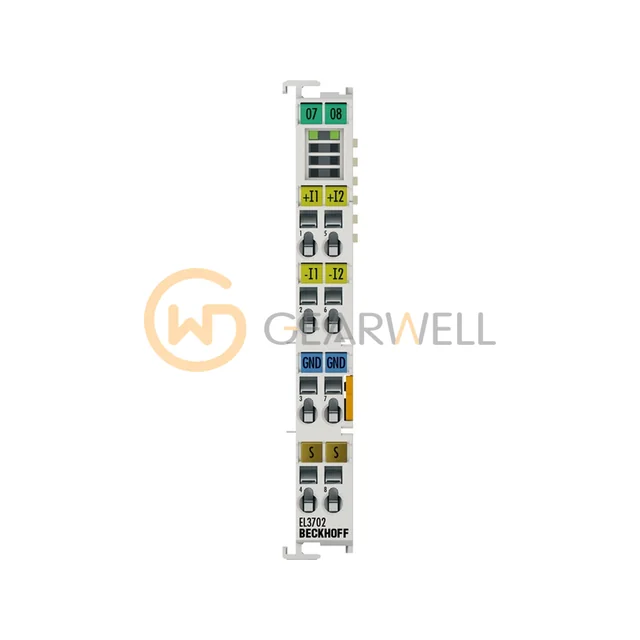

BECKHOFF EL3702 EtherCAT 2-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3702
- GEARWELL SKU
- GWP-000008072
- Category
- PLCs & I/O
Key specifications
- Power supply
- via the E-bus
- Number of inputs
- 2 (differential)
- Max. sampling rate
- max. 10 µs/100 ksps (per channel, simultaneously)
- Internal resistance
- > 200 kΩ
- Oversampling factor
- n = 1…100 selectable (max. 100 ksamples/s)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3702 is a 2-channel oversampling analog input terminal for EtherCAT for -10 to +10 V differential signals, sampling both channels simultaneously at up to 100 ksamples/s. Resolution is 16 bit, and the oversampling factor is selectable from 1 to 100. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3702 EtherCAT 2-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3702 |
| Category | PLCs & I/O |
| Power supply | via the E-bus |
| Number of inputs | 2 (differential) |
| Max. sampling rate | max. 10 µs/100 ksps (per channel, simultaneously) |
| Internal resistance | > 200 kΩ |
| Oversampling factor | n = 1…100 selectable (max. 100 ksamples/s) |
| Input signal bandwidth | 0…30 kHz recommended |
| Distributed clock accuracy | << 1 µs |
| Input filter cut-off frequency | 80 kHz |
