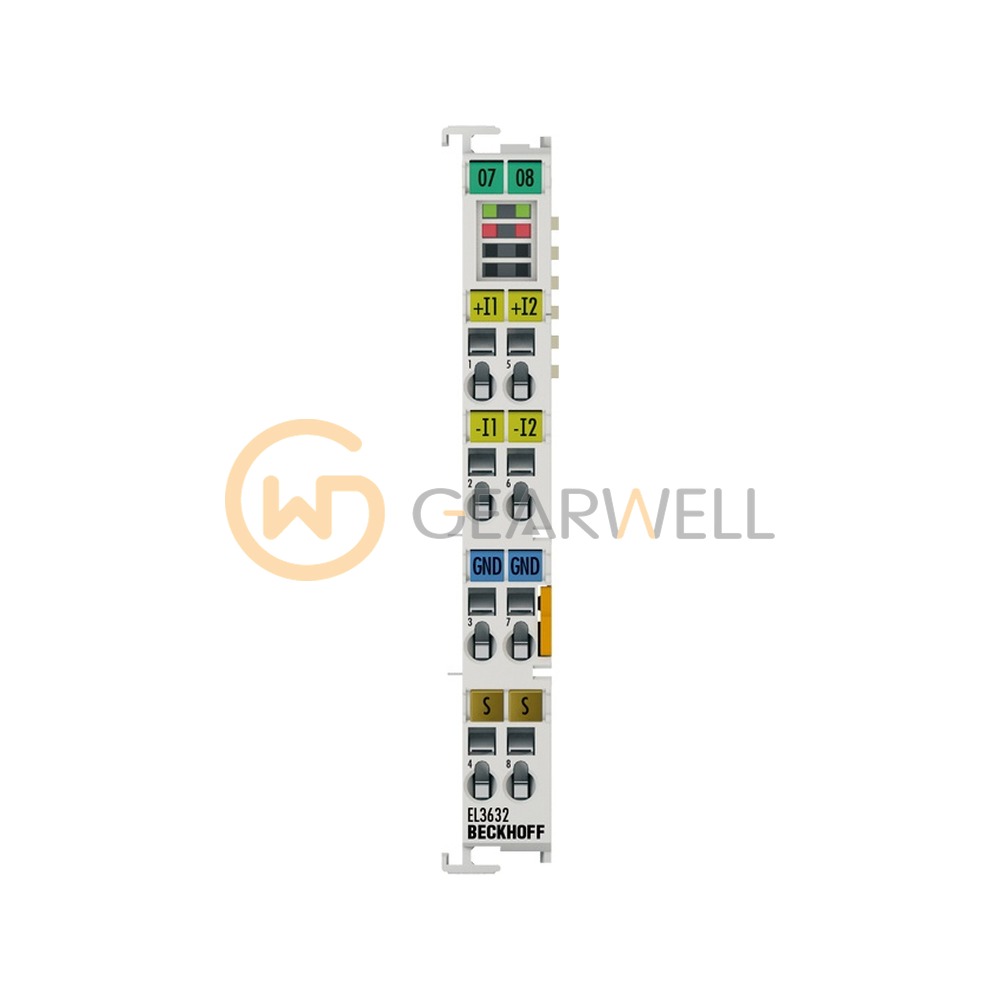

BECKHOFF EL3632 EtherCAT 2-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3632
- GEARWELL SKU
- GWP-000008019
- Category
- PLCs & I/O
Key specifications
- Resolution
- 16 bit (incl. sign)
- Sensor voltage
- max. power contact voltage less 1 V
- Conversion time
- 20 μs (max. 50 ksamples/s)
- Measuring range
- default ±5 V up to 25 kHz, ±250 mV up to 10 Hz
- Number of inputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3632 is a 2-channel analog input terminal for EtherCAT for IEPE sensors, supplying a constant current of 2, 4 or 8 mA per channel. It samples at up to 50 ksamples/s with 16-bit resolution and monitors the sensor state through the bias voltage. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3632 EtherCAT 2-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3632 |
| Category | PLCs & I/O |
| Resolution | 16 bit (incl. sign) |
| Sensor voltage | max. power contact voltage less 1 V |
| Conversion time | 20 μs (max. 50 ksamples/s) |
| Measuring range | default ±5 V up to 25 kHz, ±250 mV up to 10 Hz |
| Number of inputs | 2 |
| Power supply U V | 24 V DC via power contacts |
| Sensor state monitoring | yes, through monitoring of the bias voltage |
| Supply current I EXCITE | typ. 2/4/8 mA (separately configurable for both channels) |
