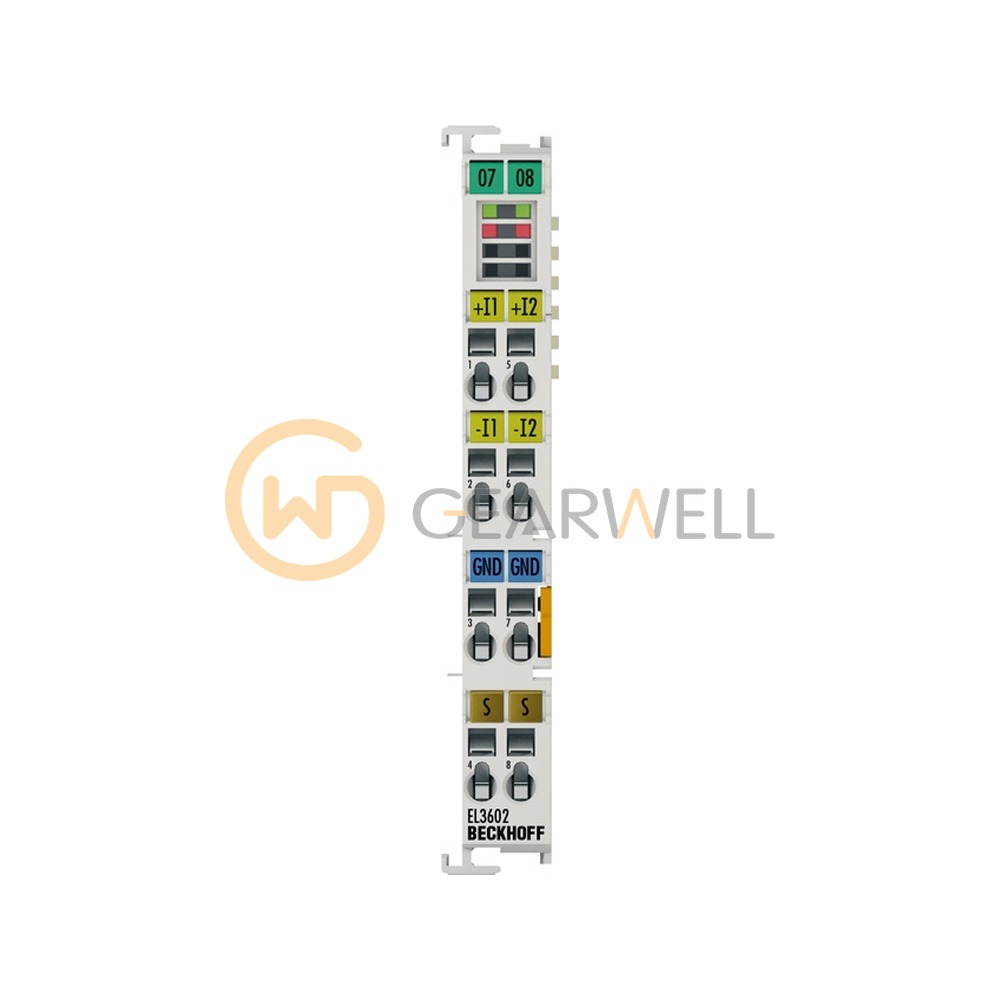

BECKHOFF EL3602 EtherCAT 2-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3602
- GEARWELL SKU
- GWP-000008018
- Category
- PLCs & I/O
Key specifications
- Resolution
- 24 bit (incl. sign)
- Power supply
- via the E-bus
- Conversion time
- 20 ms default setting, 1…400 ms configurable
- Number of inputs
- 2 (differential)
- Internal resistance
- > 200 kΩ
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3602 is a 2-channel high-precision analog input terminal for EtherCAT for differential voltage signals, with parameterizable ranges from ±1.25 V to ±10 V. It offers 24-bit resolution and an error below ±0.01 % of full scale at 25 °C with the 50 Hz filter. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3602 EtherCAT 2-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3602 |
| Category | PLCs & I/O |
| Resolution | 24 bit (incl. sign) |
| Power supply | via the E-bus |
| Conversion time | 20 ms default setting, 1…400 ms configurable |
| Number of inputs | 2 (differential) |
| Internal resistance | > 200 kΩ |
| Common mode voltage U CM | max. 35 V |
| Measurement error/uncertainty | < ±0.01% at 25°C, 50 Hz filter (relative to full scale value) |
| Input filter cut-off frequency | 3 kHz |
