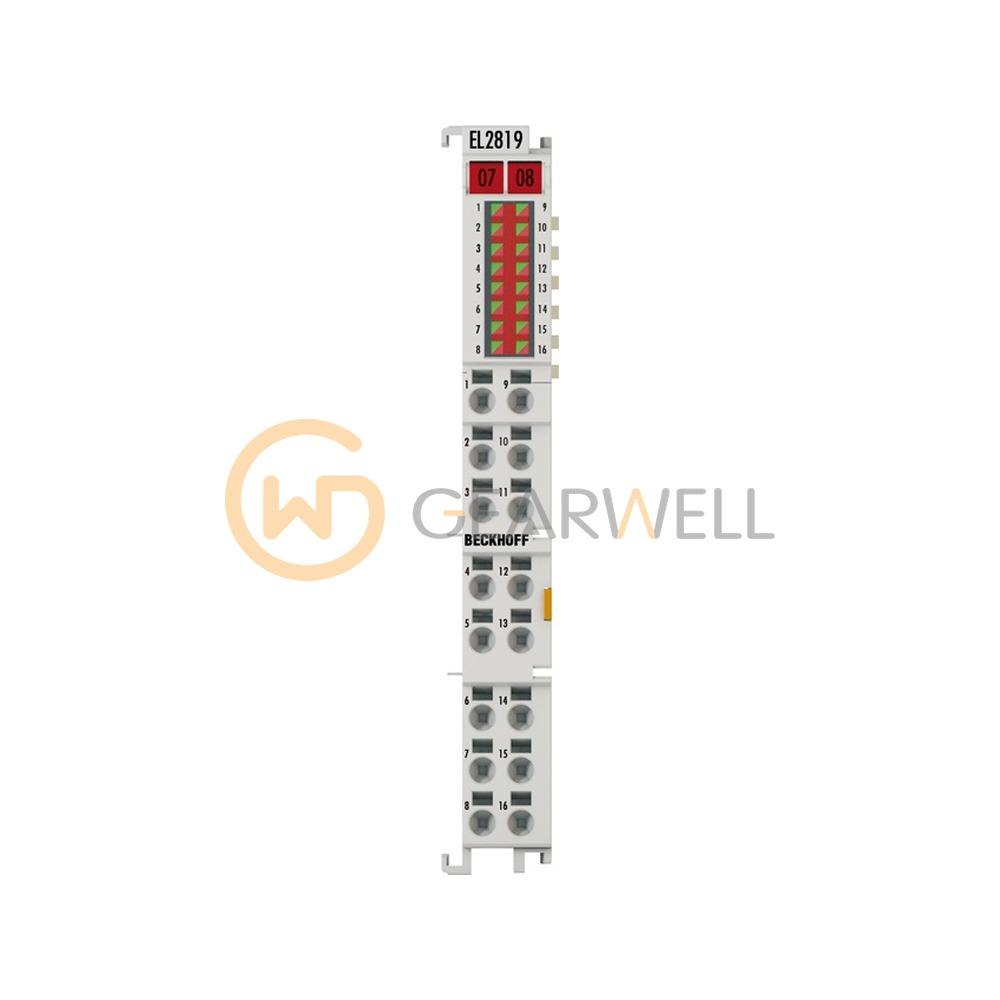

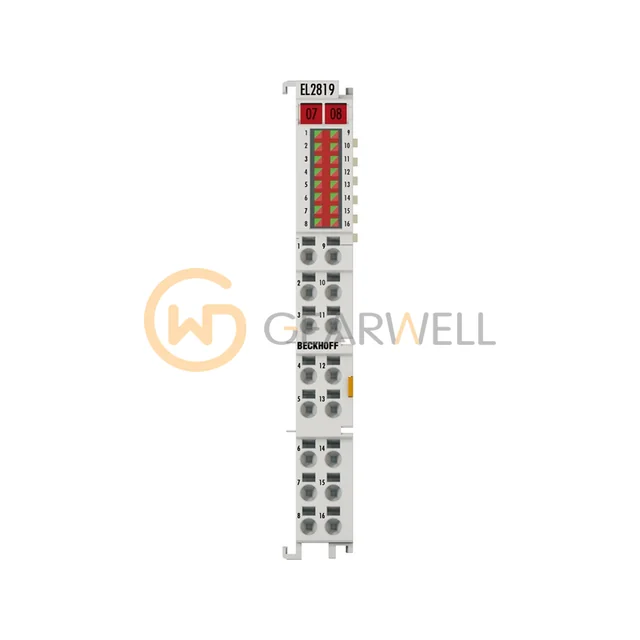

BECKHOFF EL2819 EtherCAT 16-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2819
- GEARWELL SKU
- GWP-000007990
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Output stage
- push (high-side switch)
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 16
- Max. output current
- 0.5 A (short-circuit proof) per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2819 is a 16-channel digital output terminal for EtherCAT, switching 24 V DC loads at up to 0.5 A per channel. Diagnostics for overtemperature, power fail and short circuit per channel are reported via process data and LEDs. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2819 EtherCAT 16-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2819 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Output stage | push (high-side switch) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 16 |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Connection technology | 1-wire |
| Short-circuit current | typ. < 1 A |
| Reverse polarity protection | yes |
