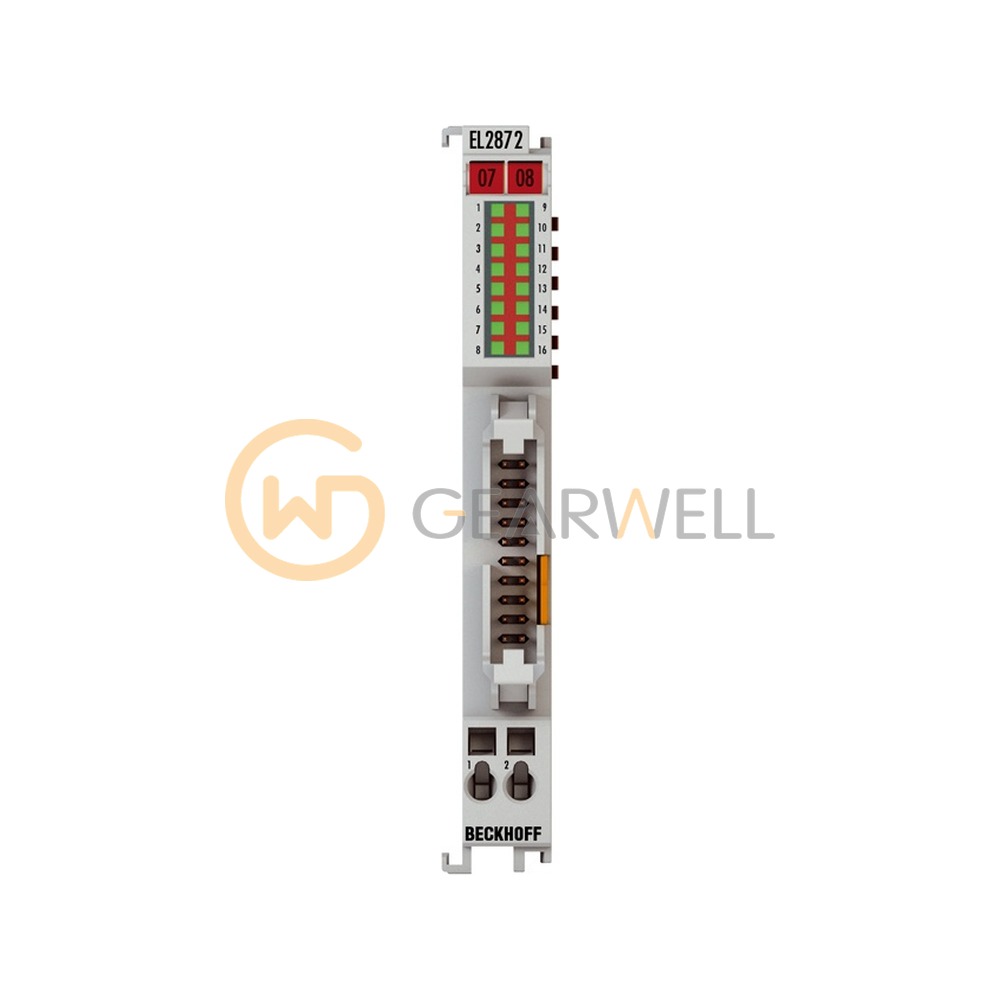

BECKHOFF EL2872 EtherCAT 16-Channel Digital Output Terminal
- Brand
- BECKHOFF
- Model
- EL2872
- GEARWELL SKU
- GWP-000007991
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of outputs
- 16
- Max. output current
- 0.5 A (short-circuit proof) per channel
- Connection technology
- flat-ribbon cable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2872 is a 16-channel digital output terminal for EtherCAT with flat-ribbon cable connection, switching 24 V DC loads at up to 0.5 A per channel. It is suited to valve terminals with multi-pin connectors. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2872 EtherCAT 16-Channel Digital Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2872 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 16 |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Connection technology | flat-ribbon cable |
| Short-circuit current | typ. < 2 A |
| Current carrying capacity | max. 1 A per connection pin |
| Reverse polarity protection | yes |
