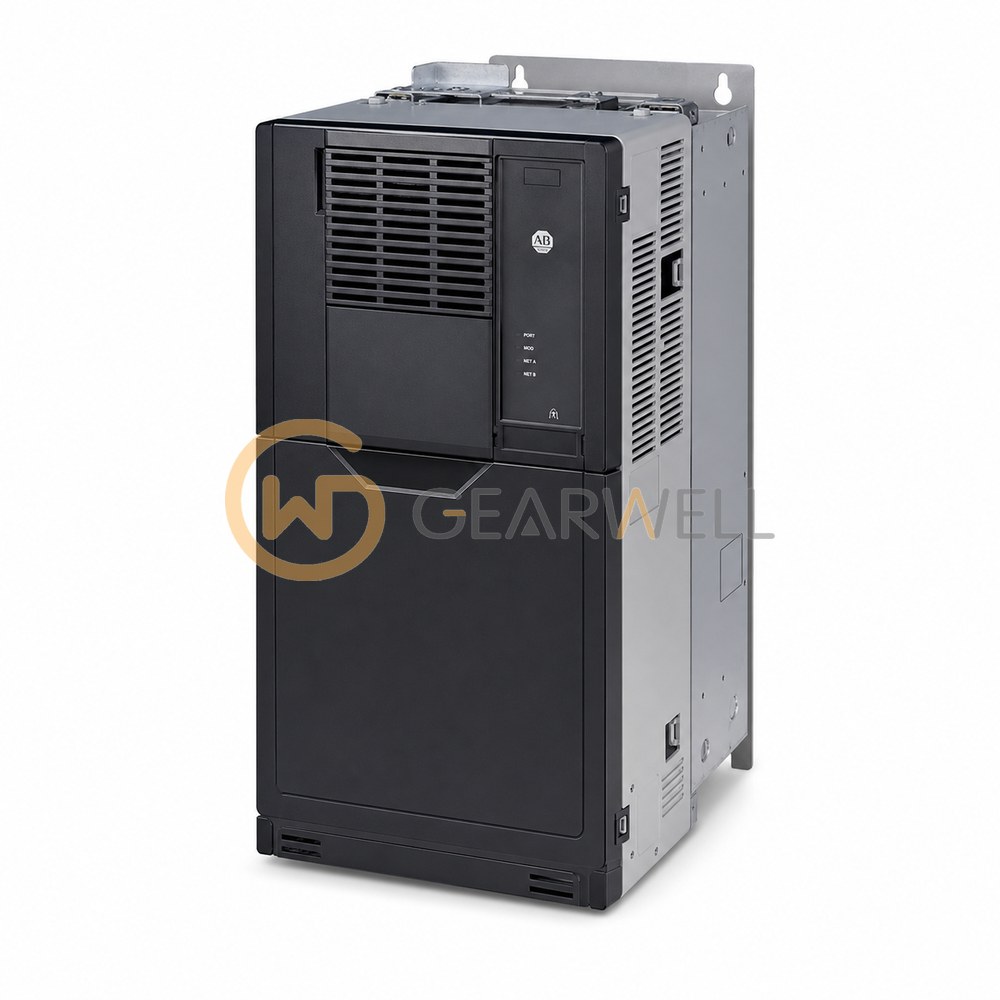

Allen-Bradley 20F14FC104JA0NNNNN PowerFlex 753 55 kW 540 V DC VFD
- Brand
- Allen-Bradley
- Model
- 20F14FC104JA0NNNNN
- GEARWELL SKU
- GWP-000003241
- Category
- Industrial Automation Parts
Key specifications
- Heavy-duty motor power
- 45 kW
- Normal-duty motor power
- 55 kW
- Normal-duty output current
- 104 A
- Nominal DC input voltage
- 540 V DC
- Enclosure
- Flange mount: front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F14FC104JA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 5, built as a flange-mount drive (front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X) with DC input with precharge (common bus). Rockwell rates it at 104 A and 55 kW for normal duty and 85 A and 45 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F14FC104JA0NNNNN PowerFlex 753 55 kW 540 V DC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14FC104JA0NNNNN |
| Category | Industrial Automation Parts |
| Heavy-duty motor power | 45 kW |
| Normal-duty motor power | 55 kW |
| Normal-duty output current | 104 A |
| Nominal DC input voltage | 540 V DC |
| Enclosure | Flange mount: front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X |
| Product family | PowerFlex 753 |
| Frame size | Frame 5 |
| Input type | DC input with precharge |
| Motor control modes | V/Hz, sensorless vector, and flux vector control (with or without feedback) |
| Dynamic braking | Internal braking transistor installed |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper installed by default |
