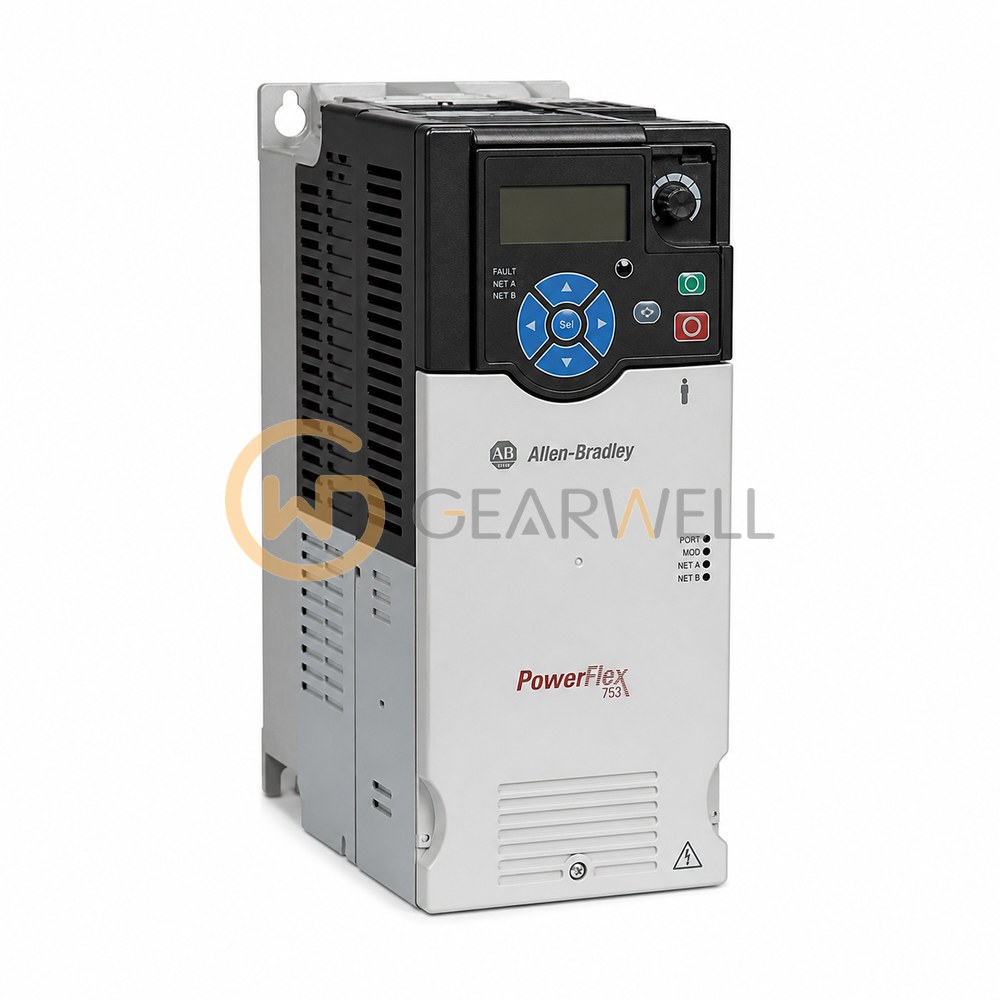

Allen-Bradley 20F11ND8P0JA0NNNNN PowerFlex 753 480 V AC 5 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F11ND8P0JA0NNNNN
- GEARWELL SKU
- GWP-000003970
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 753
- Drive frame
- 2
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- active
- Rated motor output
- 8 A continuous, normal duty; 5 hp normal duty; 5 hp heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11ND8P0JA0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 2, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 8 A and 5 Hp for normal duty and 8 A and 5 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11ND8P0JA0NNNNN PowerFlex 753 480 V AC 5 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11ND8P0JA0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 753 |
| Drive frame | 2 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | active |
| Rated motor output | 8 A continuous, normal duty; 5 hp normal duty; 5 hp heavy duty |
| Nominal input voltage | 480 V AC, three-phase |
| Configuration summary | PowerFlex 753; 480 V AC, three-phase; 8 A continuous, normal duty; 5 hp normal duty; 5 hp heavy duty; frame 2; IP20, NEMA/UL Open Type; Internal braking transistor fitted; braking resistor not included. |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Configured enclosure | IP20, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
