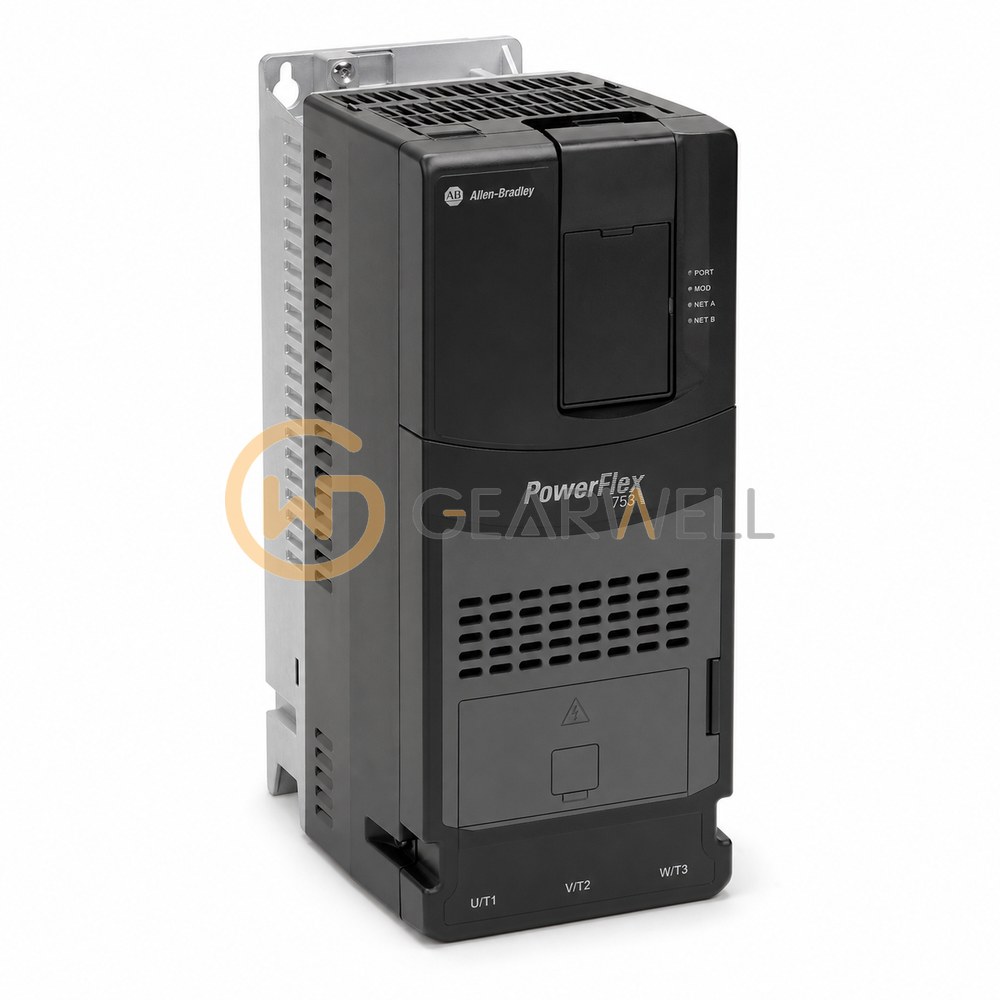

Allen-Bradley 20F11RC011JA0NNNNN PowerFlex 753 5.5 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20F11RC011JA0NNNNN
- GEARWELL SKU
- GWP-000001194
- Category
- Industrial Automation Parts
Key specifications
- Heavy-duty motor power
- 4 kW
- Normal-duty motor power
- 5.5 kW
- Normal-duty output current
- 11.5 A
- AC input voltage
- 400 V AC
- Enclosure
- IP20, NEMA/UL Type Open
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11RC011JA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 1, built as an IP20, NEMA/UL Type Open frame 1 chassis with AC input with precharge and DC terminals. Rockwell rates it at 11.5 A and 5.5 kW for normal duty and 8.7 A and 4 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11RC011JA0NNNNN PowerFlex 753 5.5 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11RC011JA0NNNNN |
| Category | Industrial Automation Parts |
| Heavy-duty motor power | 4 kW |
| Normal-duty motor power | 5.5 kW |
| Normal-duty output current | 11.5 A |
| AC input voltage | 400 V AC |
| Enclosure | IP20, NEMA/UL Type Open |
| Product family | PowerFlex 753 |
| Frame size | Frame 1 |
| Input type | AC input with precharge and DC terminals |
| Motor control modes | V/Hz, sensorless vector, and flux vector control (with or without feedback) |
| Dynamic braking | Internal braking transistor installed |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper installed by default |
