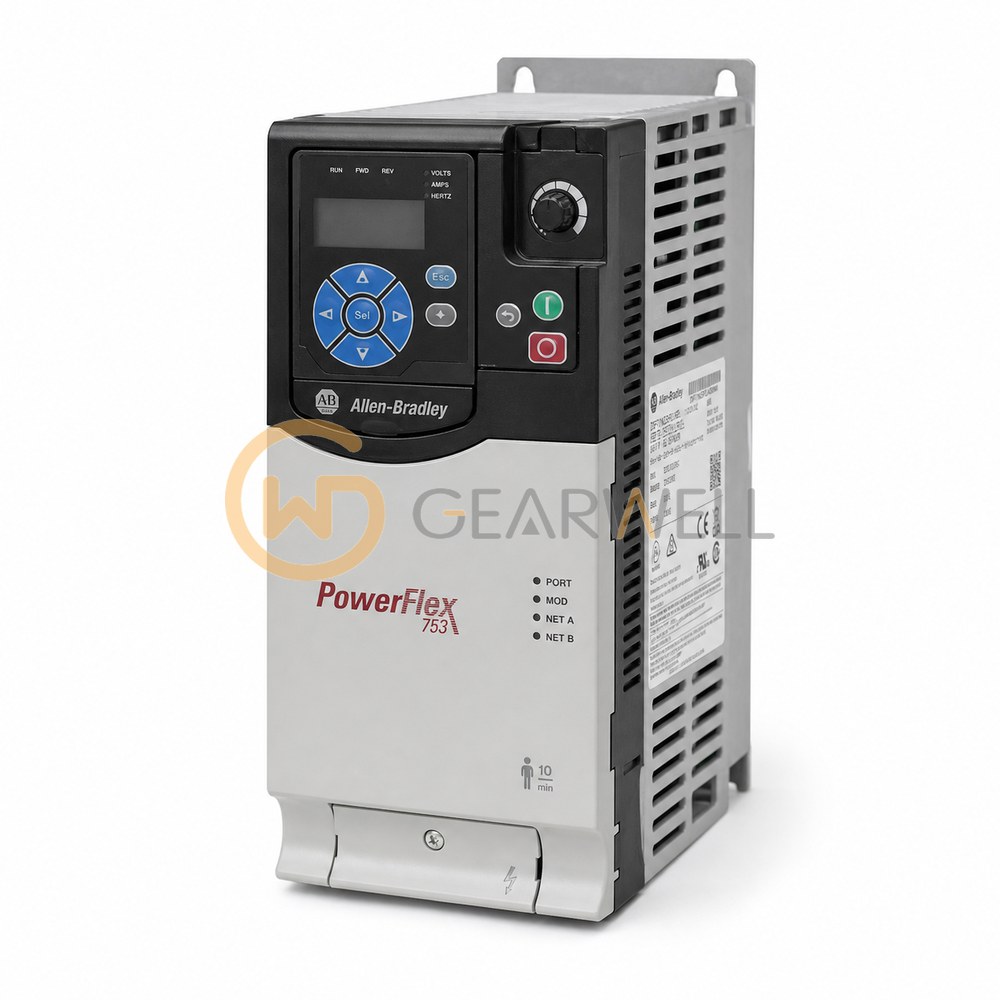

Allen-Bradley 20F11ND5P0JA0NNNNN PowerFlex 753 480 V AC 3 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F11ND5P0JA0NNNNN
- GEARWELL SKU
- GWP-000000279
- Category
- Variable Frequency Drives
Key specifications
- Heavy-duty motor power
- 3 hp, heavy duty
- Normal-duty motor power
- 3 hp, normal duty
- Normal-duty output current
- 5 A continuous, normal duty
- Nominal input voltage
- 480 V AC, three-phase
- Drive family
- PowerFlex 753
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11ND5P0JA0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 2, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 5 A and 3 Hp for normal duty and 5 A and 3 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11ND5P0JA0NNNNN PowerFlex 753 480 V AC 3 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11ND5P0JA0NNNNN |
| Category | Variable Frequency Drives |
| Heavy-duty motor power | 3 hp, heavy duty |
| Normal-duty motor power | 3 hp, normal duty |
| Normal-duty output current | 5 A continuous, normal duty |
| Nominal input voltage | 480 V AC, three-phase |
| Drive family | PowerFlex 753 |
| Drive frame | 2 |
| Operator interface | No factory-fitted HIM |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Configured enclosure | IP20, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
