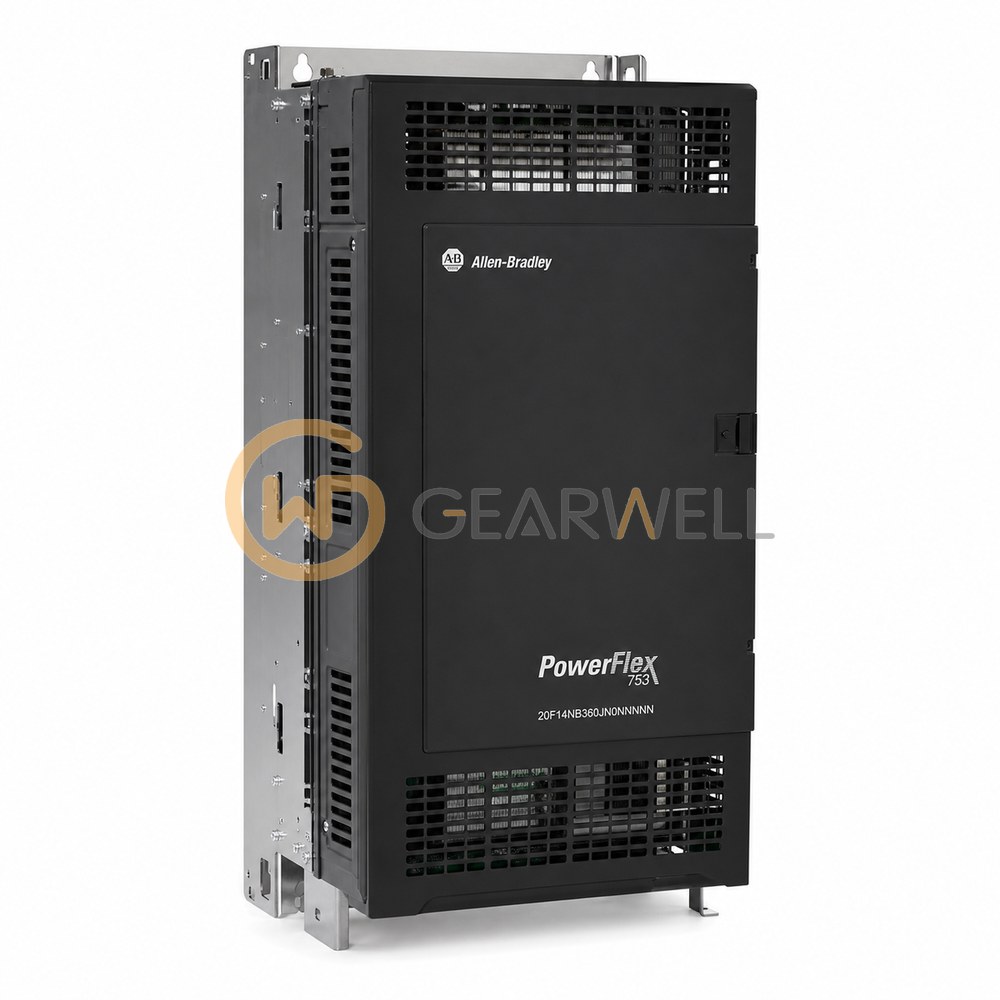

Allen-Bradley 20F14NB360JN0NNNNN PowerFlex 753 325 V DC 150 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NB360JN0NNNNN
- GEARWELL SKU
- GWP-000004424
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- Common DC bus input with precharge
- Drive frame
- 7
- Nominal input voltage
- 325 V DC nominal
- Rated motor output
- 360 A continuous, normal duty; 150 hp normal duty; 125 hp heavy duty
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NB360JN0NNNNN PowerFlex 753 325 V DC 150 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NB360JN0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 7 |
| Nominal input voltage | 325 V DC nominal |
| Rated motor output | 360 A continuous, normal duty; 150 hp normal duty; 125 hp heavy duty |
| Operator interface | No factory-fitted HIM |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
