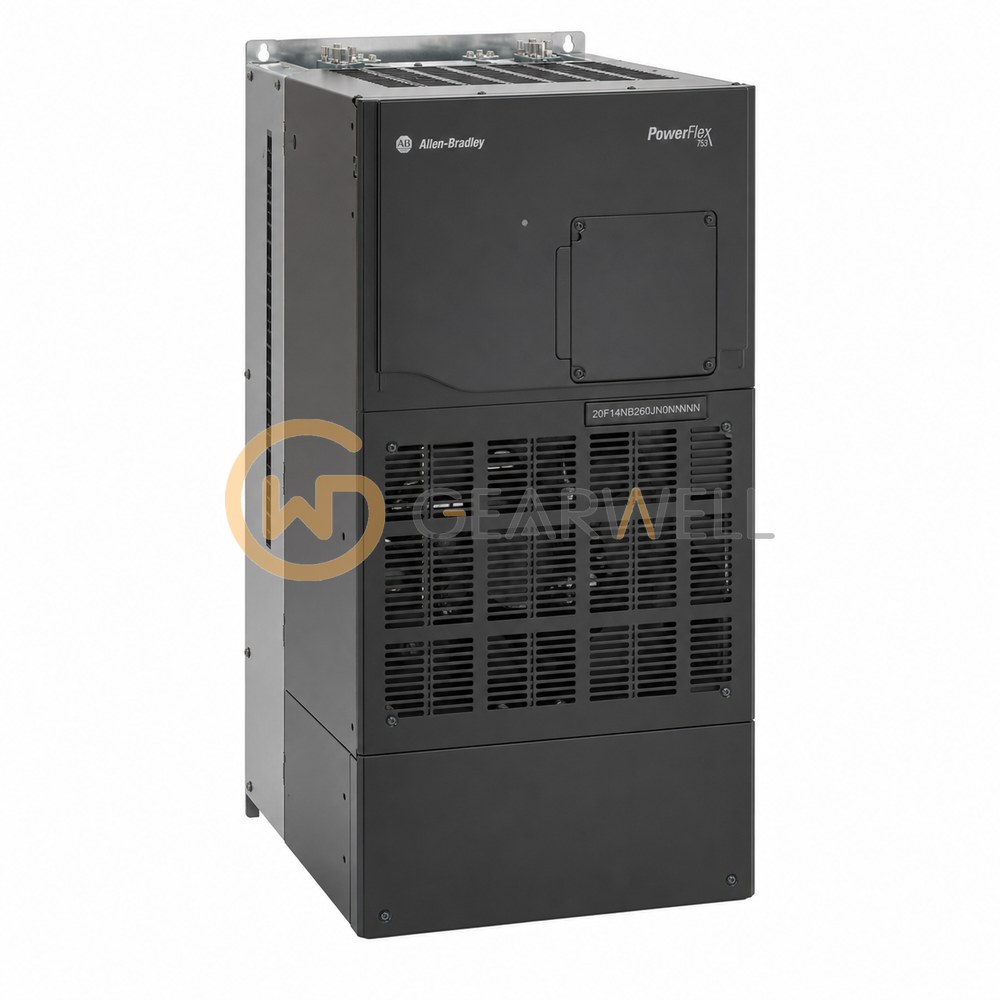

Allen-Bradley 20F14NB260JN0NNNNN PowerFlex 753 325 V DC 100 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NB260JN0NNNNN
- GEARWELL SKU
- GWP-000002603
- Category
- Variable Frequency Drives
Key specifications
- Heavy-duty motor power
- 75 hp, heavy duty
- Normal-duty motor power
- 100 hp, normal duty
- Normal-duty output current
- 260 A continuous, normal duty
- Nominal input voltage
- 325 V DC nominal
- Drive frame
- 6
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NB260JN0NNNNN PowerFlex 753 325 V DC 100 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NB260JN0NNNNN |
| Category | Variable Frequency Drives |
| Heavy-duty motor power | 75 hp, heavy duty |
| Normal-duty motor power | 100 hp, normal duty |
| Normal-duty output current | 260 A continuous, normal duty |
| Nominal input voltage | 325 V DC nominal |
| Drive frame | 6 |
| Operator interface | No factory-fitted HIM |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
