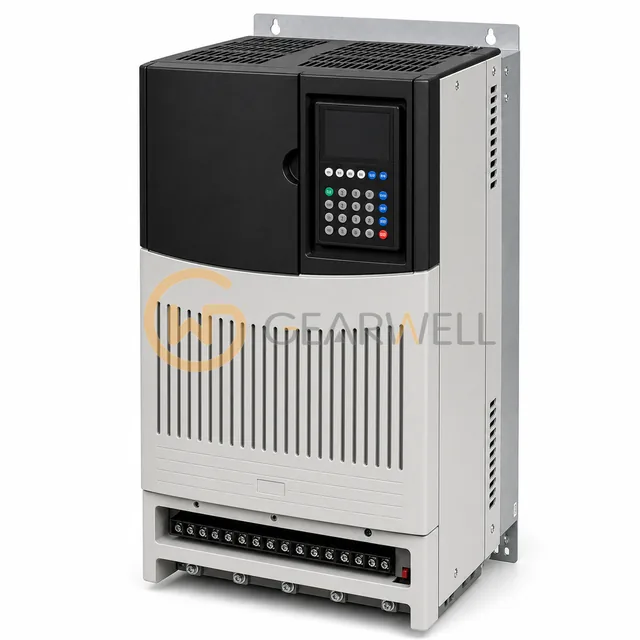

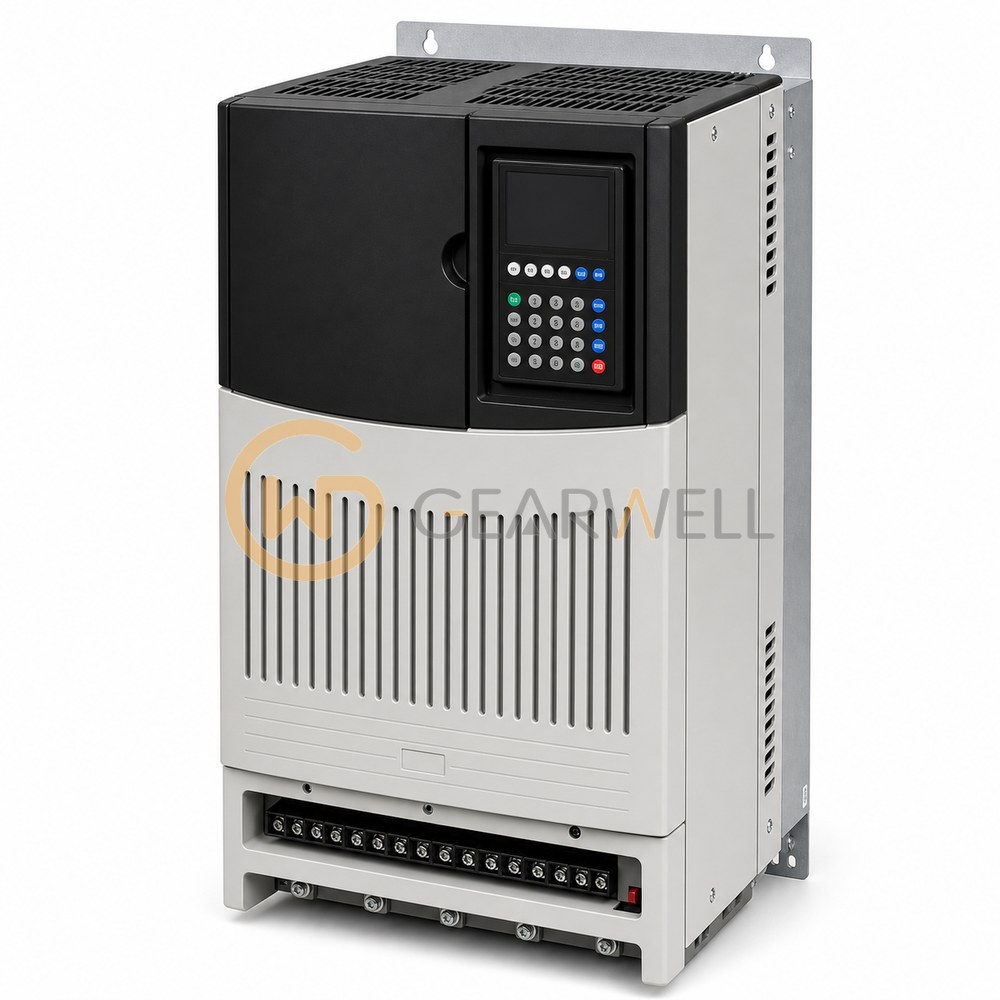

Allen-Bradley 20DM502N0NNNBNAEE PowerFlex 700S 932 V DC 500 kW Drive
- Brand
- Allen-Bradley
- Model
- 20DM502N0NNNBNAEE
- GEARWELL SKU
- GWP-000002304
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 700S
- Brake IGBT
- No brake IGBT
- Frame size
- 11
- Nominal input supply
- 932 V DC
- Internal brake resistor
- No internal brake resistor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20DM502N0NNNBNAEE PowerFlex 700S 932 V DC 500 kW Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20DM502N0NNNBNAEE |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 700S |
| Brake IGBT | No brake IGBT |
| Frame size | 11 |
| Nominal input supply | 932 V DC |
| Internal brake resistor | No internal brake resistor |
| EMC filtering | EMC filter without common-mode choke |
| Continuous output current | 502 A (normal duty at 932 V DC input) |
| Heavy-duty motor power | 400 kW (heavy duty at 932 V DC input) |
| Normal-duty motor power | 500 kW (normal duty at 932 V DC input) |
