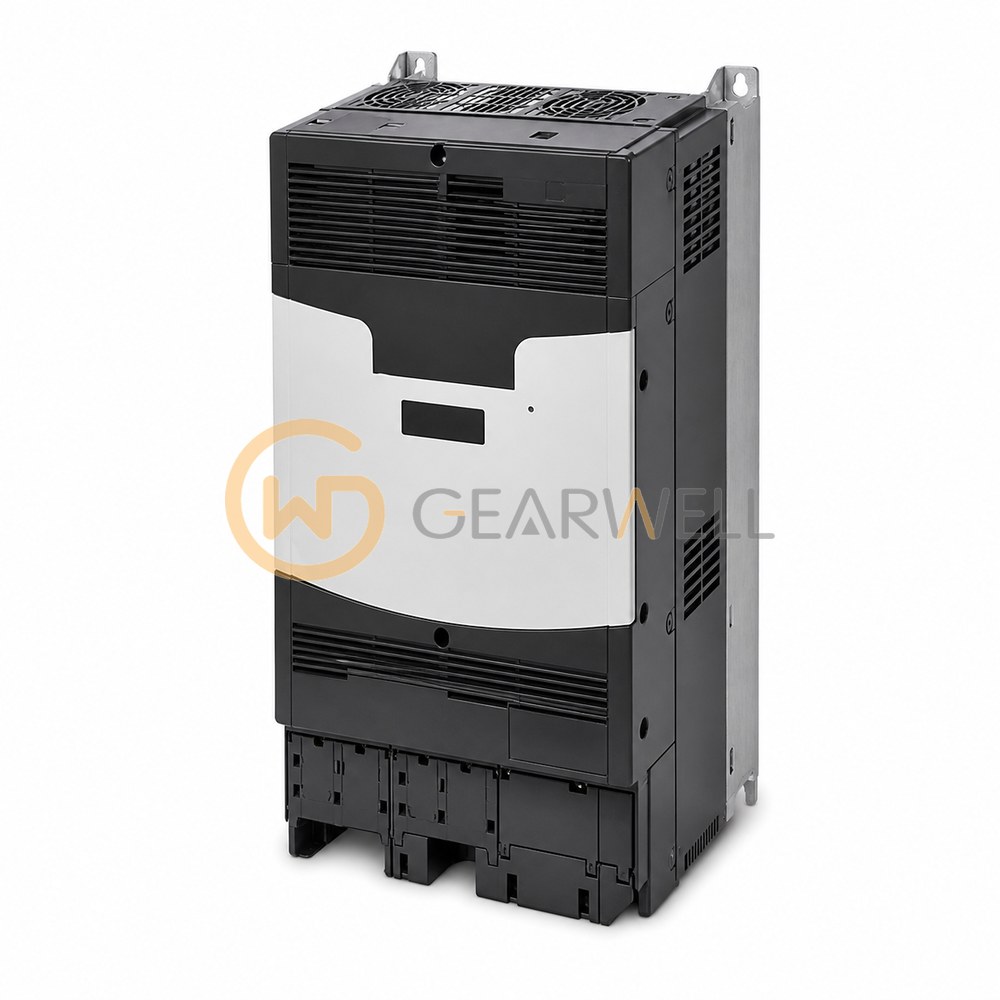

Allen-Bradley 20F11FC037AA0NNNNN PowerFlex 753 18.5 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20F11FC037AA0NNNNN
- GEARWELL SKU
- GWP-000002326
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- Flange mount: front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X
- Product family
- PowerFlex 753
- Input type
- AC input with precharge and DC terminals
- Product type
- PowerFlex 753 variable-frequency AC drive
- AC input voltage
- 400 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11FC037AA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 3, built as a flange-mount drive (front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X) with AC input with precharge and DC terminals. Rockwell rates it at 37 A and 18.5 kW for normal duty and 30 A and 15 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11FC037AA0NNNNN PowerFlex 753 18.5 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11FC037AA0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | Flange mount: front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X |
| Product family | PowerFlex 753 |
| Input type | AC input with precharge and DC terminals |
| Product type | PowerFlex 753 variable-frequency AC drive |
| AC input voltage | 400 V AC |
| Normal-duty output current | 37 A |
| Heavy-duty motor power | 15 kW |
| Lifecycle status | Discontinued |
| Normal-duty motor power | 18.5 kW |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper removed by default |
