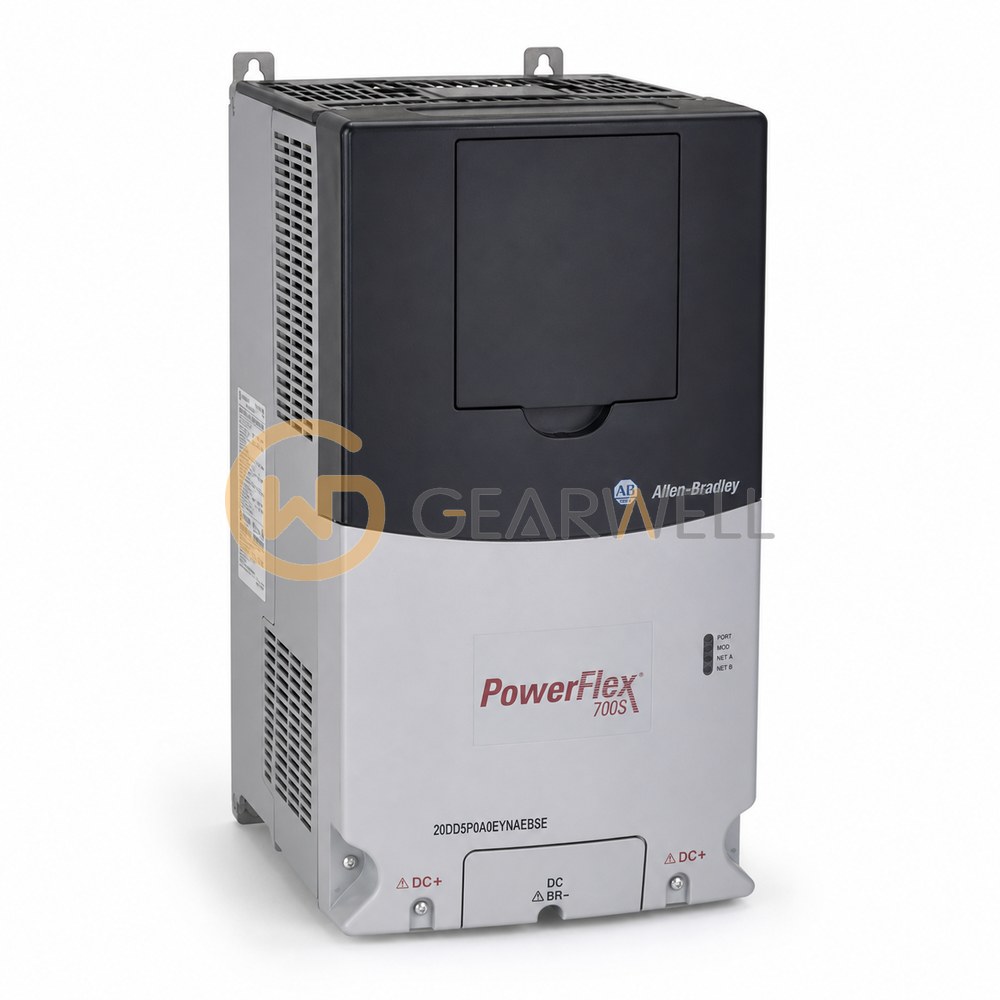

Allen-Bradley 20DD5P0A0EYNAEBSE PowerFlex 700S AC Drive, 480 V, 5 A, 3 HP ND

Product overview

The Allen-Bradley 20DD5P0A0EYNAEBSE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 3.0 HP normal duty and 2.0 HP heavy duty, with 5 A continuous output current, 5.5 A for 1 minute and 7.5 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 1, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. It includes a DPI EtherNet/IP communication adapter in the comm slot. It has the expanded control cassette with SynchLink, Safe Torque Off with a second encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
