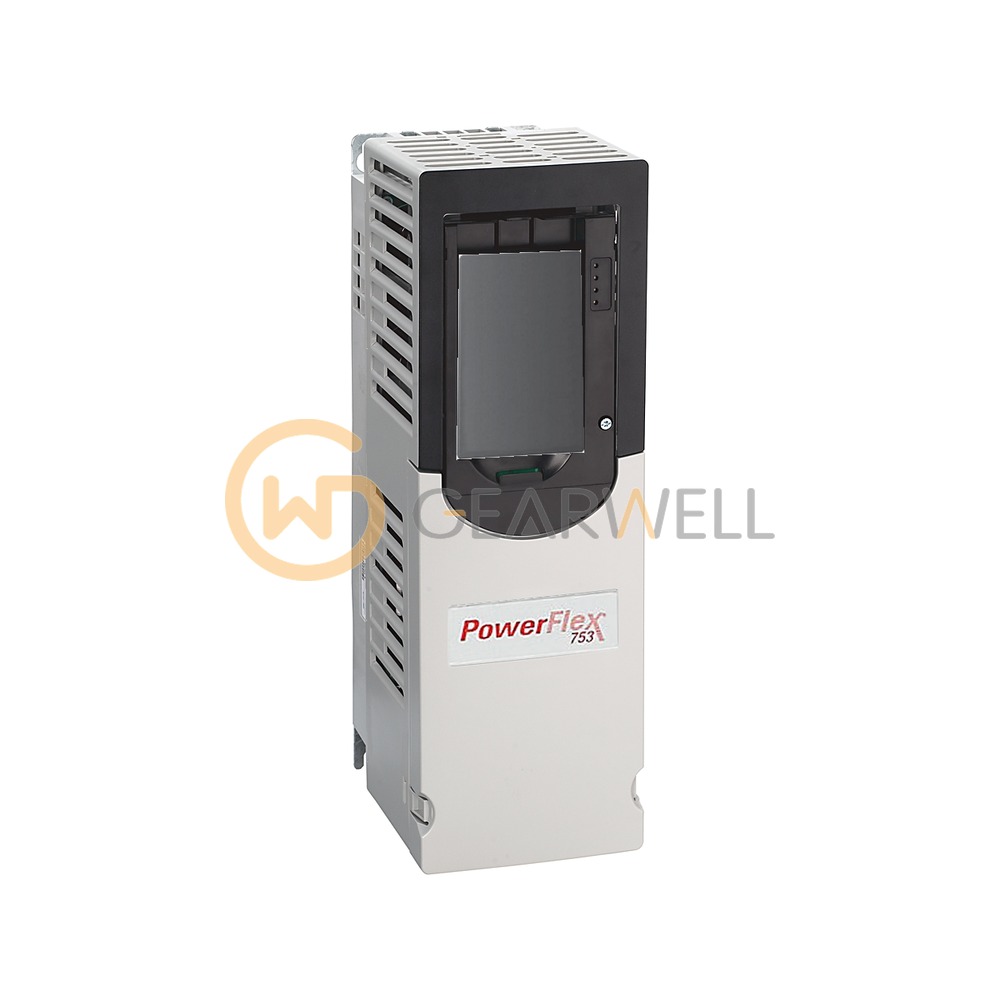

Allen-Bradley 20F11NC011AA0NNNNN PowerFlex 753 AC Drive

Product overview

The Allen-Bradley 20F11NC011AA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 2, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 11.5 A and 5.5 kW for normal duty and 11.5 A and 5.5 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
