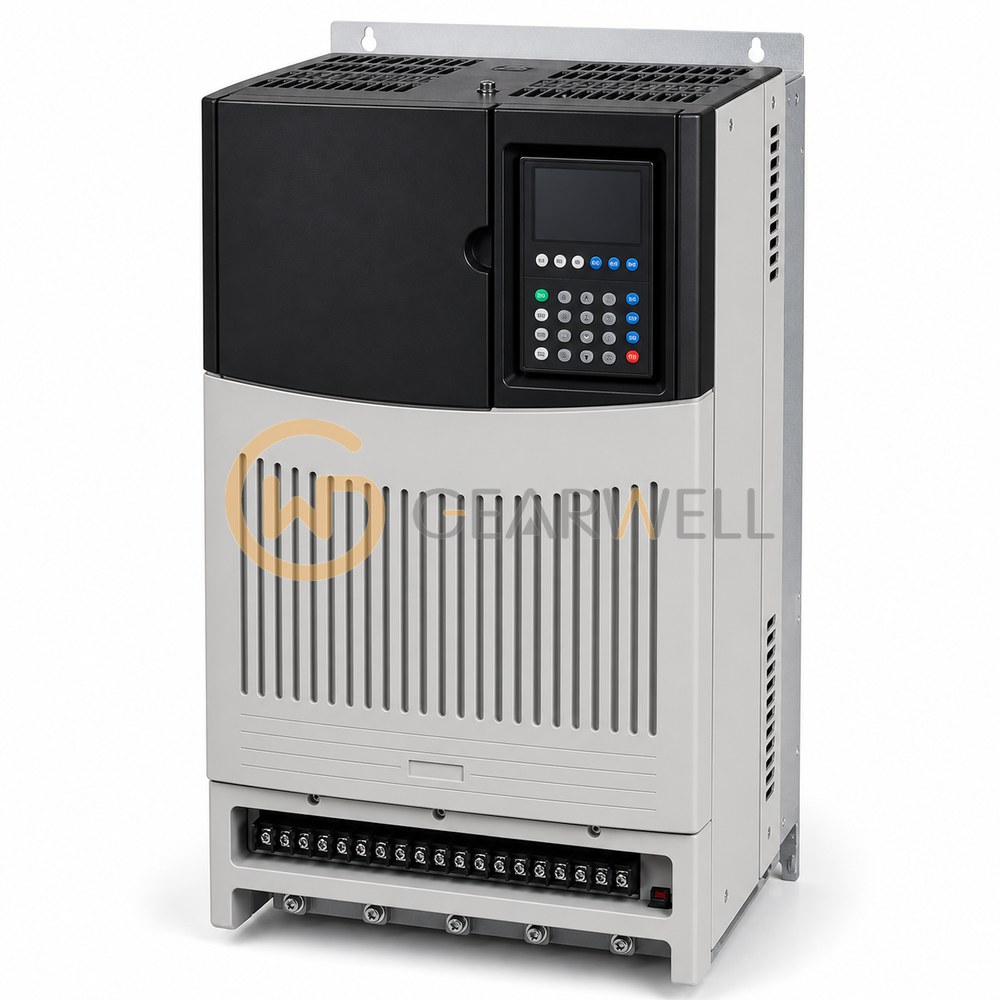

Allen-Bradley 20DD8P0A0EYNANASE PowerFlex 700S 480 V AC 5 hp Drive
- Brand
- Allen-Bradley
- Model
- 20DD8P0A0EYNANASE
- GEARWELL SKU
- GWP-000000977
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- 1
- Product type
- PowerFlex 700S AC motor drive
- Nominal input supply
- 480 V AC, three-phase
- EMC filtering
- EMC filter with common-mode choke
- Continuous output current
- 8 A (normal duty at 480 V AC input)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20DD8P0A0EYNANASE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 5.0 HP normal duty and 3.0 HP heavy duty, with 8 A continuous output current, 8.8 A for 1 minute and 12 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 1, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, Safe Torque Off with a second encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20DD8P0A0EYNANASE PowerFlex 700S 480 V AC 5 hp Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20DD8P0A0EYNANASE |
| Category | Variable Frequency Drives |
| Frame size | 1 |
| Product type | PowerFlex 700S AC motor drive |
| Nominal input supply | 480 V AC, three-phase |
| EMC filtering | EMC filter with common-mode choke |
| Continuous output current | 8 A (normal duty at 480 V AC input) |
| Feedback option | Safe Torque Off with second encoder |
| Heavy-duty motor power | 3 hp (heavy duty at 480 V AC input) |
| Manufacturer lifecycle | Discontinued |
| Normal-duty motor power | 5 hp (normal duty at 480 V AC input) |
| Communication module | No communication module |
