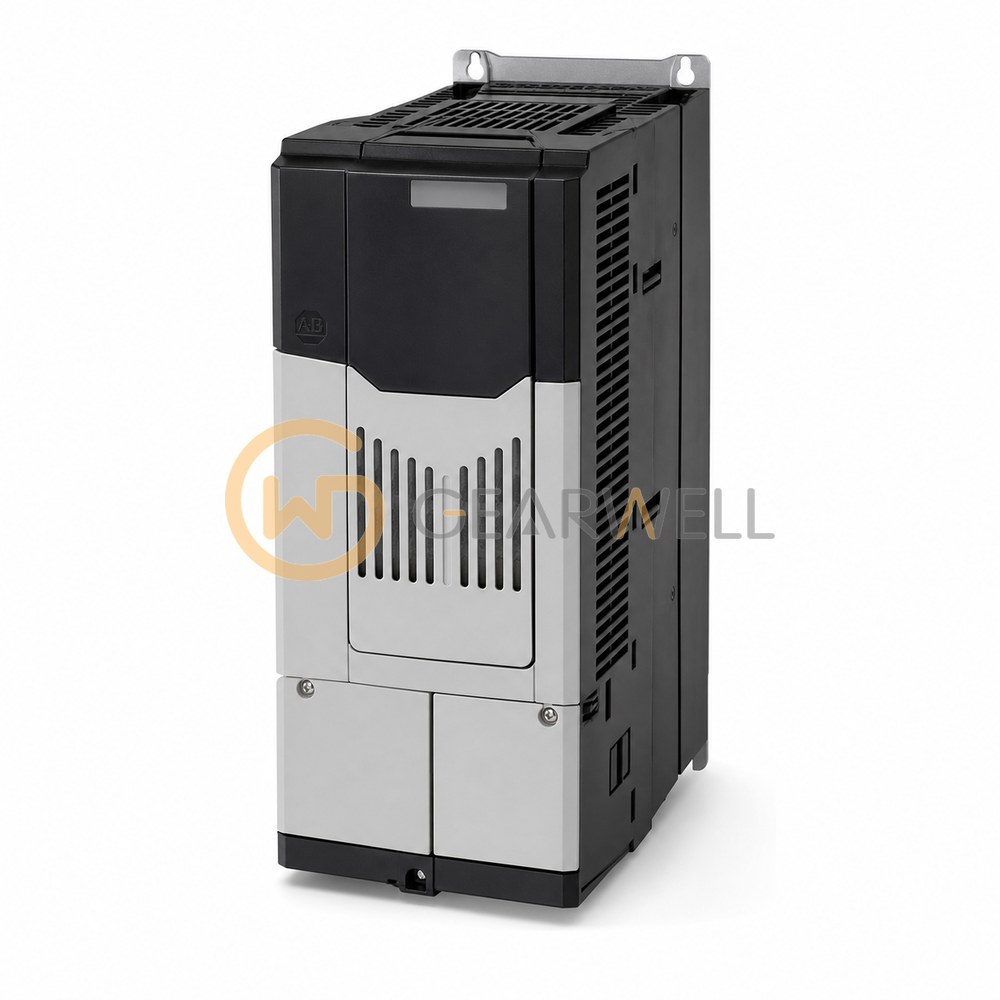

Allen-Bradley 20F11FC022AA0NNNNN PowerFlex 753 11 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20F11FC022AA0NNNNN
- GEARWELL SKU
- GWP-000001628
- Category
- Industrial Automation Parts
Key specifications
- Heavy-duty motor power
- 7.5 kW
- Normal-duty motor power
- 11 kW
- Normal-duty output current
- 22 A
- AC input voltage
- 400 V AC
- Enclosure
- Flange mount: front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11FC022AA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 2, built as a flange-mount drive (front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X) with AC input with precharge and DC terminals. Rockwell rates it at 22 A and 11 kW for normal duty and 15.4 A and 7.5 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11FC022AA0NNNNN PowerFlex 753 11 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11FC022AA0NNNNN |
| Category | Industrial Automation Parts |
| Heavy-duty motor power | 7.5 kW |
| Normal-duty motor power | 11 kW |
| Normal-duty output current | 22 A |
| AC input voltage | 400 V AC |
| Enclosure | Flange mount: front IP20, NEMA/UL Type Open; back/heatsink IP66, NEMA/UL Type 4X |
| Frame size | Frame 2 |
| Input type | AC input with precharge and DC terminals |
| Motor control modes | V/Hz, sensorless vector, and flux vector control (with or without feedback) |
| Dynamic braking | Internal braking transistor installed |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper removed by default |
