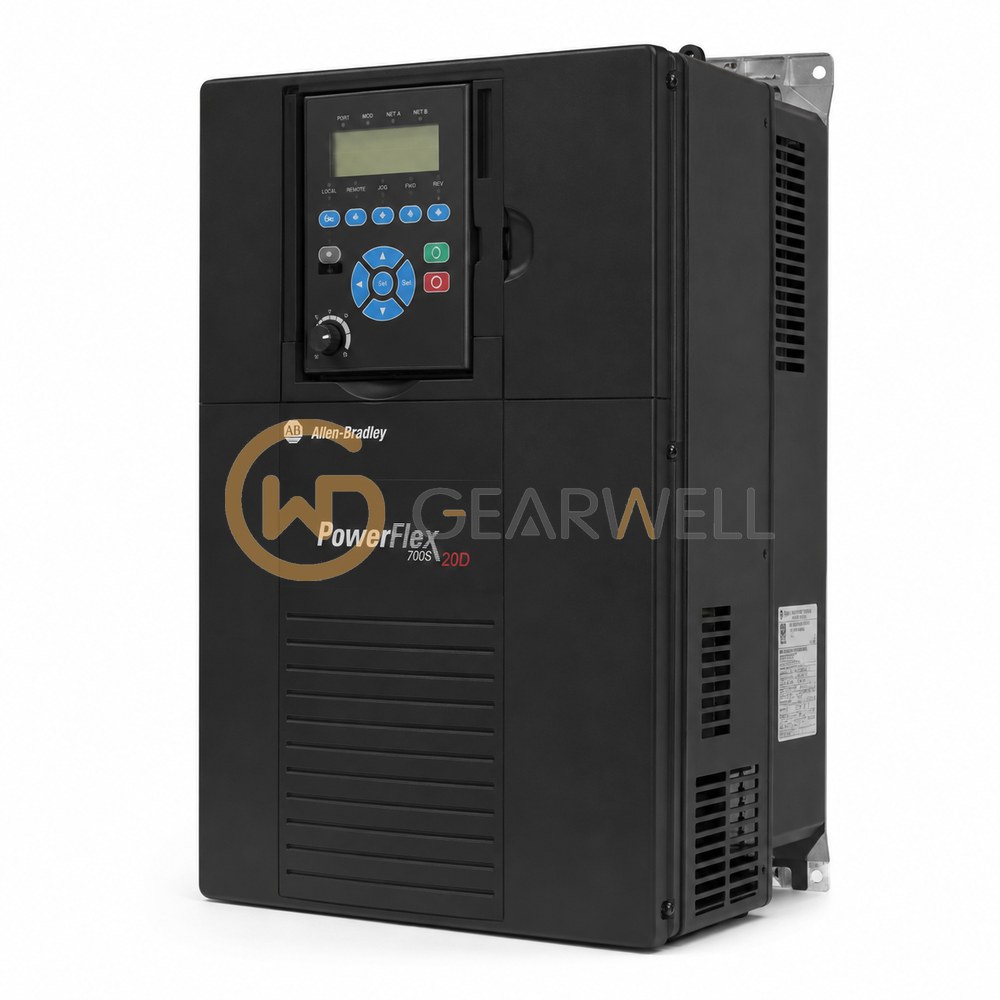

Allen-Bradley 20DD460A3ENNBEANE PowerFlex 700S 480 V AC 350 hp Drive

Product overview

The Allen-Bradley 20DD460A3ENNBEANE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 350 HP normal duty and 300 HP heavy duty, with 460 A continuous output current, 506 A for 1 minute and 770 A for 3 seconds; in heavy duty it delivers 385 A continuous, 578 A for 1 minute and 770 A for 3 seconds. It is an IP21, NEMA/UL Type 1 drive with conformal coating in frame 10. It comes with a full numeric LCD HIM with a 7 line by 21 character backlit display. It is supplied without the brake IGBT, which is optional on frames 4…9. It has an integral CE EMC filter without the common mode choke. It includes a DPI EtherNet/IP communication adapter in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
