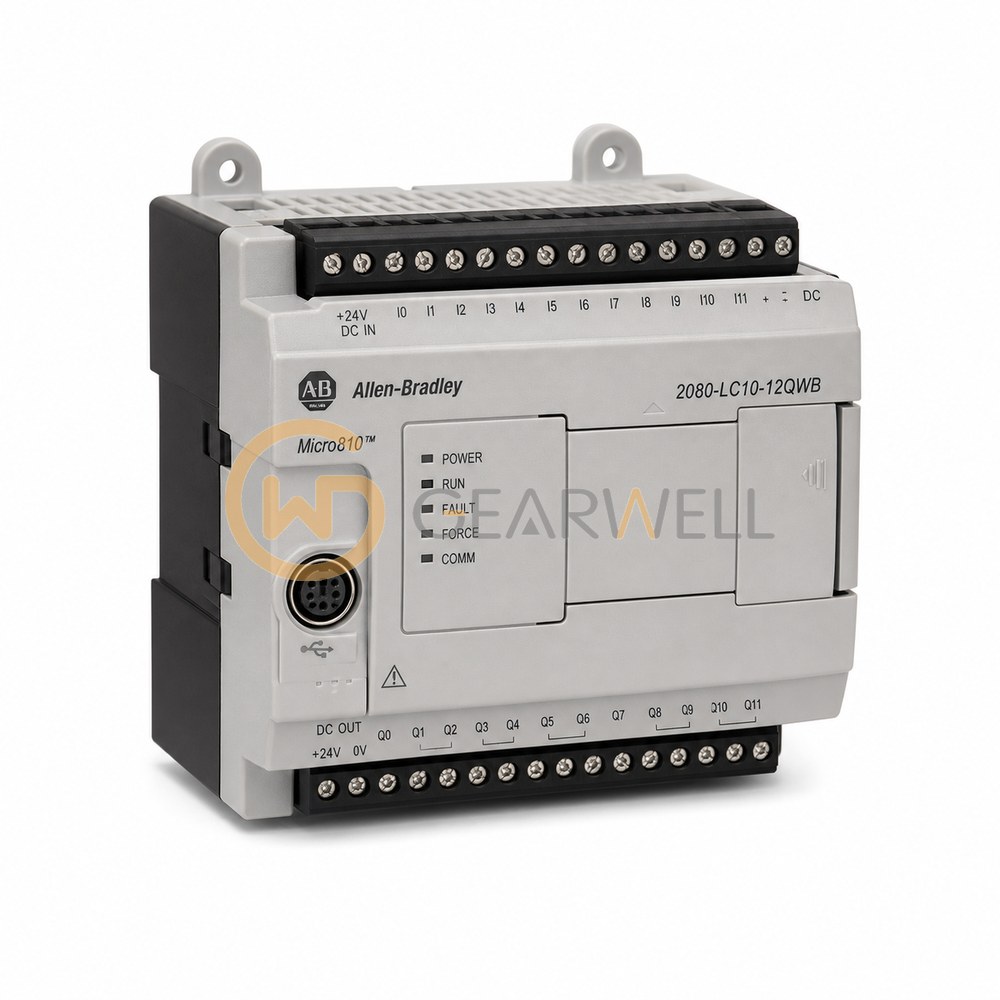

Allen-Bradley 2080-LC10-12QWB Micro810 12-Point Smart Relay PLC, 24 V DC

Brand: Allen-Bradley
Model: 2080-LC10-12QWB
GEARWELL SKU: GWP-000002514
Category: PLCs & I/O

Key specifications

Dimensions (H x W x D): 91 x 75 x 59 mm.
Controller supply: 24 V DC nominal; 20.4…26.4 V DC, Class 2.
Approximate shipping weight: 0.203 kg.
Digital input configuration: 8 digital inputs; 24 V DC nominal. AC input operation is limited to isolated I0…I3 (12/24 V AC, 50/60 Hz); I4…I7 are non-isolated DC/shared analog inputs.
Digital Output type: Relay

Micro800 2080 catalog number list (PDF, 114 KB)

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 2080-LC10-12QWB is a Micro810 12-point controller that works as a smart relay with micro PLC programming. It runs on 24V DC and has 8 inputs for 12…24V DC, 4 of which can be used as 0…10V analog inputs, and 4 relay outputs (two 8 A and two 4 A). Smart relay function blocks such as timers and time-of-day can be set from the optional 1.5" LCD and keypad, or the controller can be programmed over USB with Connected Components Workbench software.

Technical reference

Product name	Allen-Bradley 2080-LC10-12QWB Micro810 12-Point Smart Relay PLC, 24 V DC
Brand	Allen-Bradley
Model	2080-LC10-12QWB
Category	PLCs & I/O
Dimensions (H x W x D)	91 x 75 x 59 mm.
Controller supply	24 V DC nominal; 20.4…26.4 V DC, Class 2.
Approximate shipping weight	0.203 kg.
Digital input configuration	8 digital inputs; 24 V DC nominal. AC input operation is limited to isolated I0…I3 (12/24 V AC, 50/60 Hz); I4…I7 are non-isolated DC/shared analog inputs.
Digital Output type	Relay
Analog input resolution	10-bit; input data count 0…1023.
Shared analog inputs	4 inputs, I4…I7, configurable as 0…10 V DC analog inputs; included within the 8 inputs, not additional channels.
Number of Input Points available	8
Number of Output Points Available	4
