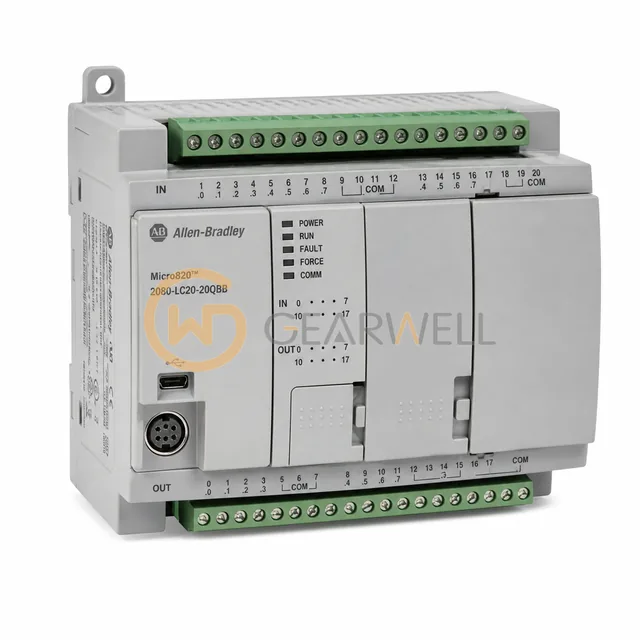

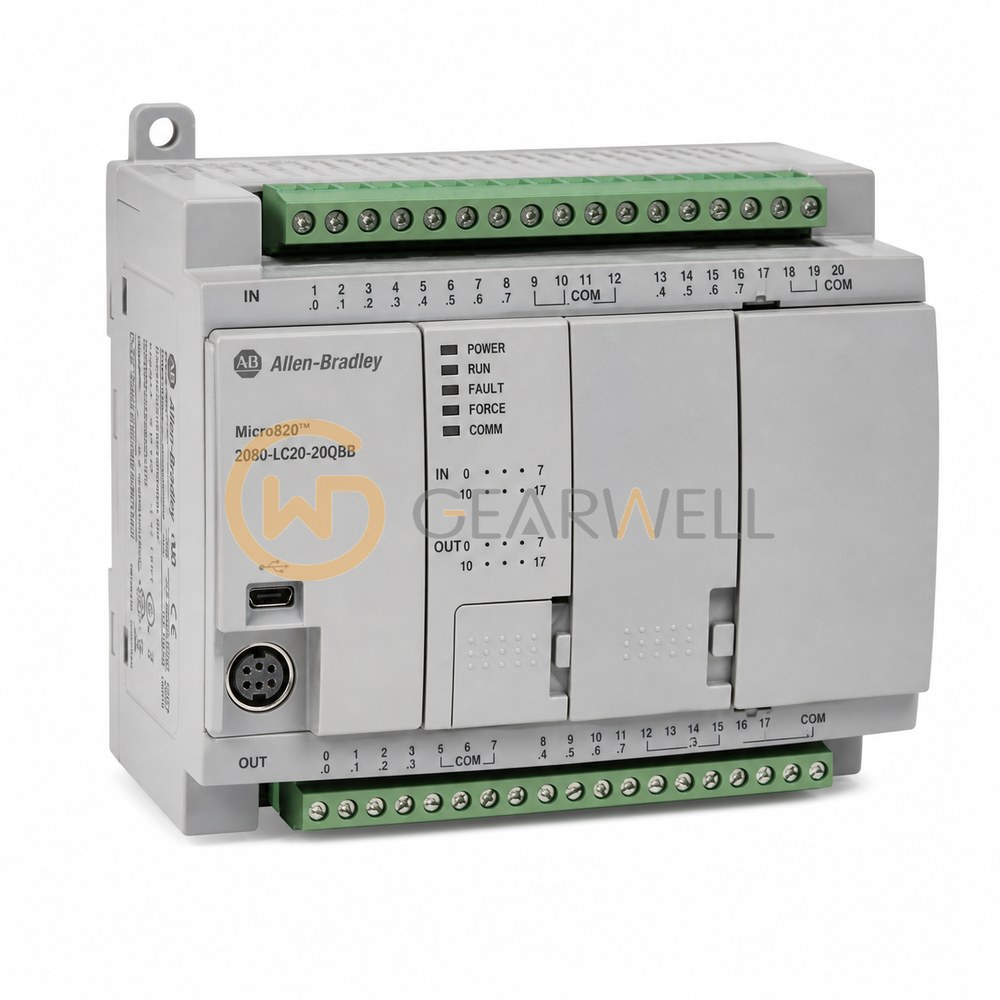

Allen-Bradley 2080-LC20-20QBB Micro820 20-Point Ethernet PLC, Transistor Outputs
- Brand
- Allen-Bradley
- Model
- 2080-LC20-20QBB
- GEARWELL SKU
- GWP-000000891
- Category
- PLCs & I/O
Key specifications
- Built-in I/O total
- 20 points: 12 inputs, 7 digital outputs and 1 analog output; analog input channels share 4 of the inputs.
- Dimensions (H x W x D)
- 90 x 104 x 75 mm
- Controller supply
- 24 V DC nominal; 20.4…26.4 V DC, Class 2.
- Product type
- Micro820 20-point programmable logic controller
- Product series
- Micro820
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-LC20-20QBB is a Micro820 20-point controller with 12 inputs for 24V DC (4 can be used as 0…10V analog inputs), 7 source outputs for 24V DC (1 usable as PWM), and 1 analog output for 0…10V DC. It has an embedded 10/100 Base-T Ethernet port, an RS-232/RS-485 serial port, a microSD card slot for backup, data logging and recipes, and 2 plug-in module slots, with about 10K program steps and 20 KB of data.
Technical reference
| Product name | Allen-Bradley 2080-LC20-20QBB Micro820 20-Point Ethernet PLC, Transistor Outputs |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080-LC20-20QBB |
| Category | PLCs & I/O |
| Built-in I/O total | 20 points: 12 inputs, 7 digital outputs and 1 analog output; analog input channels share 4 of the inputs. |
| Dimensions (H x W x D) | 90 x 104 x 75 mm |
| Controller supply | 24 V DC nominal; 20.4…26.4 V DC, Class 2. |
| Product type | Micro820 20-point programmable logic controller |
| Product series | Micro820 |
| Shipping weight | 0.38 kg approximately |
| Serial interface | Embedded non-isolated RS-232/RS-485 combo port; only one interface operates at a time. |
| Network interface | Embedded Ethernet |
| Plug-in module capacity | Up to 2 Micro800 plug-in modules; 2080-MEMBAK-RTC and 2080-MEMBAK-RTC2 are not supported. |
| Built-in input configuration | 12 digital inputs; I-00…I-03 can instead be configured as 4 shared 0…10 V DC analog inputs, not additional channels. |
| Terminal block type | Fixed terminal blocks. |
| Built-in output configuration | 7 digital sourcing transistor outputs, 24 V DC; 1 analog output, 0…10 V DC. |
| Official catalog number | 2080-LC20-20QBB |
