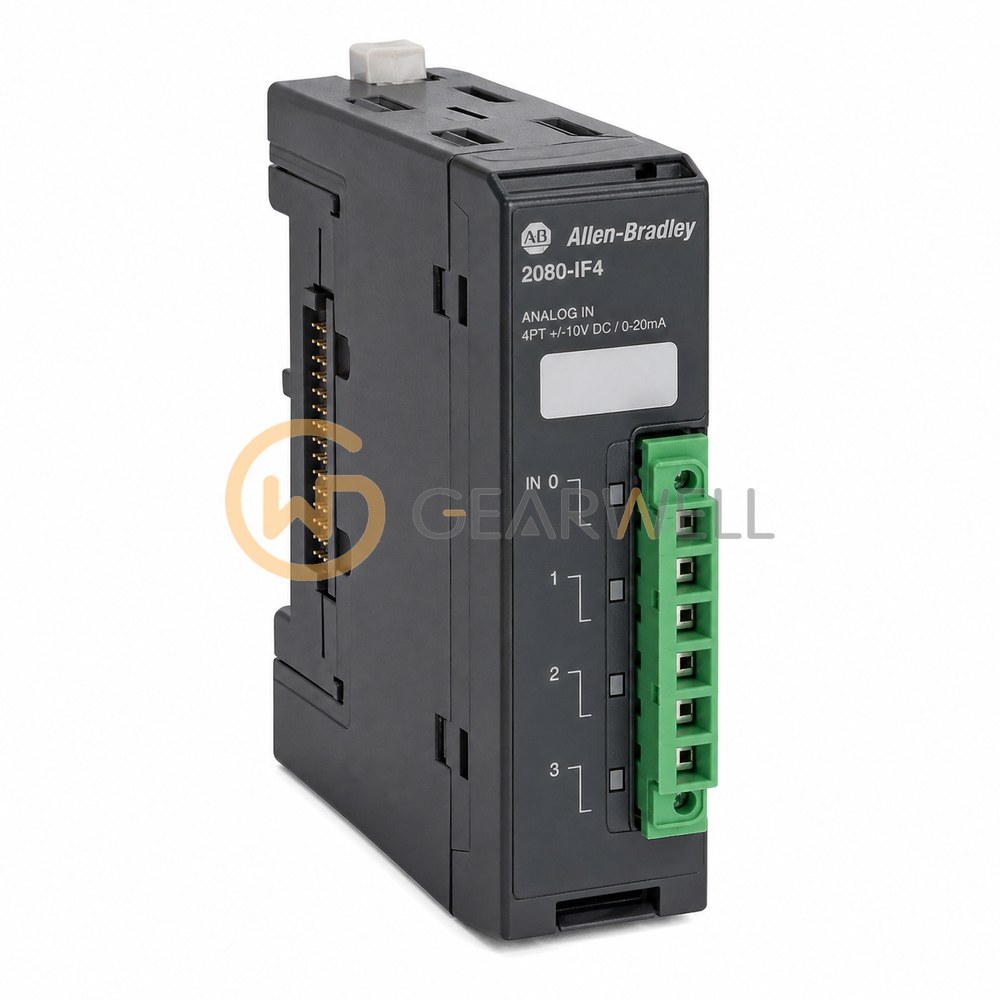

Allen-Bradley 2080-IF4 Micro800 4-Channel Analog Input Plug-in Module
- Brand
- Allen-Bradley
- Model
- 2080-IF4
- GEARWELL SKU
- GWP-000003978
- Category
- PLCs & I/O
Key specifications
- Data range
- 0 to 65535
- Input update time
- 180 ms per enabled channel.
- Current input range
- 0…20 mA, unipolar.
- Voltage input range
- 0…10 V DC, unipolar.
- Maximum ADC resolution
- 12 bits, unipolar; data is represented over 0…65535.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-IF4 is a Micro800 analog plug-in module with 4 non-isolated unipolar inputs for 0…10V or 0…20 mA at 12-bit resolution, on a 12-pin terminal block. Because it is non-isolated, cables should ideally be shorter than 3 m. It fits any plug-in slot of a Micro820, Micro830, Micro850 or Micro870 controller.
Technical reference
| Product name | Allen-Bradley 2080-IF4 Micro800 4-Channel Analog Input Plug-in Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080-IF4 |
| Category | PLCs & I/O |
| Data range | 0 to 65535 |
| Input update time | 180 ms per enabled channel. |
| Current input range | 0…20 mA, unipolar. |
| Voltage input range | 0…10 V DC, unipolar. |
| Maximum ADC resolution | 12 bits, unipolar; data is represented over 0…65535. |
| Input impedance | Voltage mode: >100 kΩ; current mode: 250 Ω. |
| Overall accuracy at 25 °C | ±1% of full scale for voltage and current inputs at 25 °C. |
| Field input calibration | Not required |
| Analog input channels | 4 non-isolated inputs. |
| Analog input configuration | Configurable through software or the user program. |
| Channel-to-channel isolation | None. |
| Input group to bus isolation | No isolation |
| Configurable analog outputs | None; this is an input module. |
