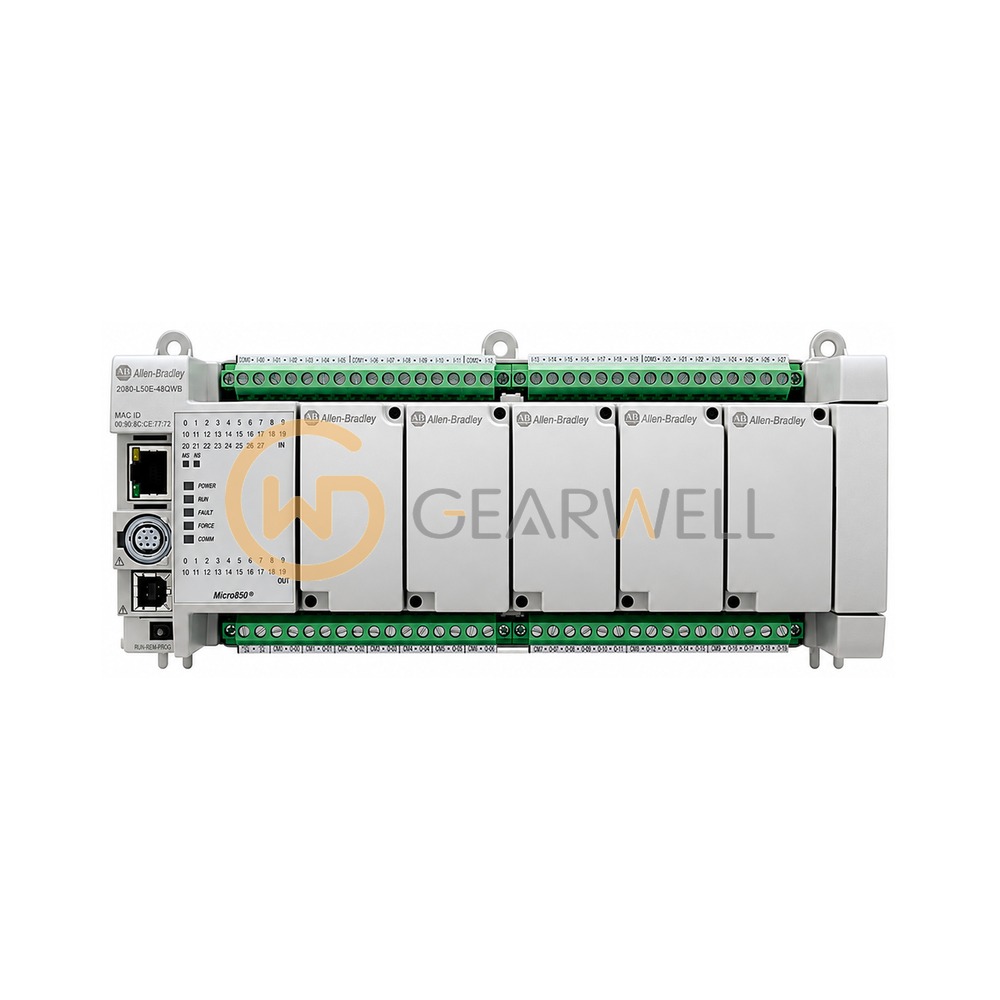

Allen-Bradley 2080-L50E-48QWB Micro850 Programmable Controller
- Brand
- Allen-Bradley
- Model
- 2080-L50E-48QWB
- GEARWELL SKU
- GWP-000000299
- Category
- PLCs & I/O
Key specifications
- Total I/O
- 48
- Communication
- EtherNet/IP
- Input voltage
- 24 V DC/AC
- Relay outputs
- 20
- Input channels
- 28
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-L50E-48QWB is a Micro850 48-point controller with 28 inputs for 24V DC/V AC and 20 relay outputs, with 6 embedded high-speed counters. It has an embedded 10/100 Base-T Ethernet port, USB programming and RS-232/RS-485 serial ports, 5 plug-in slots and support for up to four expansion I/O modules, with about 10K program steps and 20 KB of data. With firmware 21.011 or later it supports Class 1 EtherNet/IP connections to up to 8 nodes. It takes a class 2 24V DC supply, such as the optional Micro800 power supply.
Technical reference
| Product name | Allen-Bradley 2080-L50E-48QWB Micro850 Programmable Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080-L50E-48QWB |
| Category | PLCs & I/O |
| Total I/O | 48 |
| Communication | EtherNet/IP |
| Input voltage | 24 V DC/AC |
| Relay outputs | 20 |
| Input channels | 28 |
