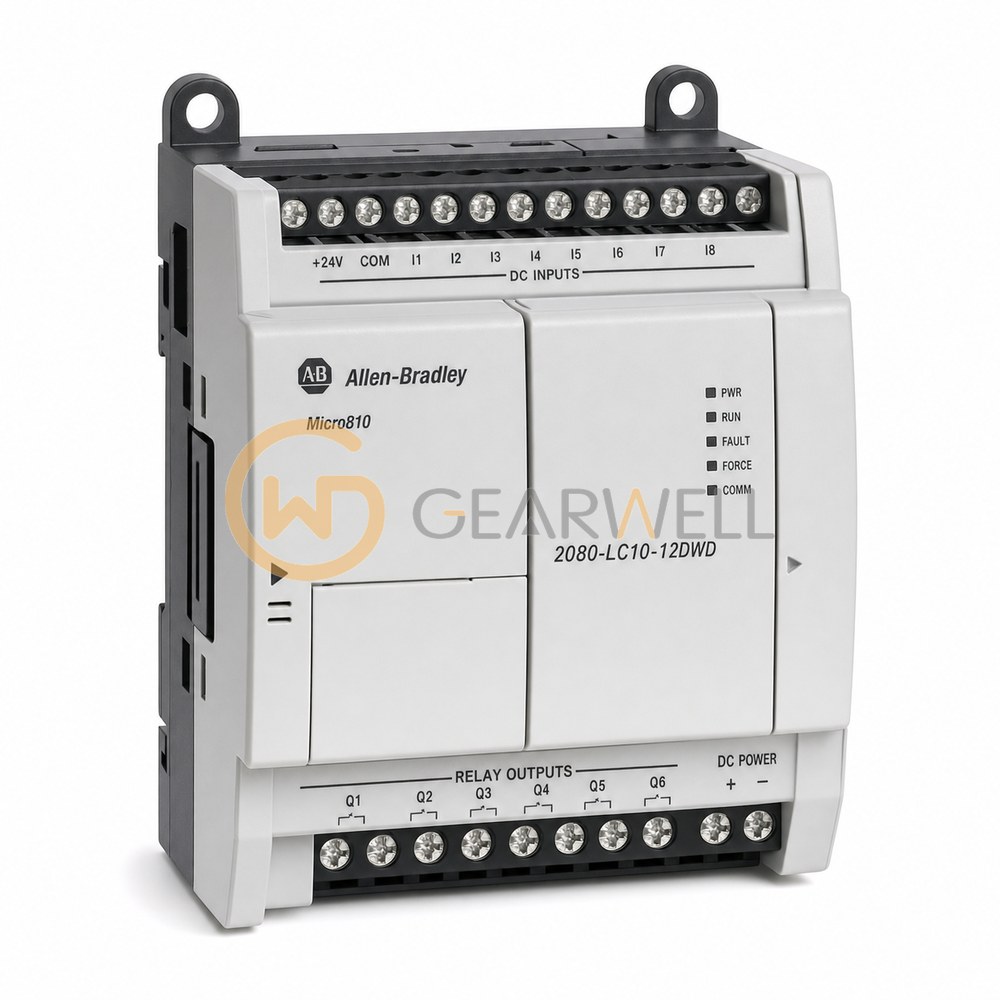

Allen-Bradley 2080-LC10-12DWD Micro810 12-Point Smart Relay PLC, 12 V DC
- Brand
- Allen-Bradley
- Model
- 2080-LC10-12DWD
- GEARWELL SKU
- GWP-000003498
- Category
- PLCs & I/O
Key specifications
- Memory
- 4KB
- Dimensions (H x W x D)
- 91 x 75 x 59 mm.
- Input Signal
- 12V DC
- Controller supply
- 12 V DC nominal; 10.8…13.2 V DC, Class 2.
- Product type
- Micro810 12-point smart relay PLC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-LC10-12DWD is a Micro810 12-point controller that works as a smart relay with micro PLC programming. It runs on 12V DC and has 8 inputs for 12…24V DC, 4 of which can be used as 0…10V analog inputs, and 4 relay outputs (two 8 A and two 4 A). Smart relay function blocks such as timers and time-of-day can be set from the optional 1.5" LCD and keypad, or the controller can be programmed over USB with Connected Components Workbench software.
Technical reference
| Product name | Allen-Bradley 2080-LC10-12DWD Micro810 12-Point Smart Relay PLC, 12 V DC |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080-LC10-12DWD |
| Category | PLCs & I/O |
| Memory | 4KB |
| Dimensions (H x W x D) | 91 x 75 x 59 mm. |
| Input Signal | 12V DC |
| Controller supply | 12 V DC nominal; 10.8…13.2 V DC, Class 2. |
| Product type | Micro810 12-point smart relay PLC |
| Approximate shipping weight | 0.203 kg. |
| Lifecycle status | Active |
| Built-in I/O | 8 digital inputs rated 12 V DC; 4 relay outputs. Four inputs can instead be configured as analog inputs. |
| Analog input resolution | 10-bit; input data count 0…1023. |
| Shared analog inputs | 4 inputs, I4…I7, configurable as 0…10 V DC analog inputs; included within the 8 inputs, not additional channels. |
