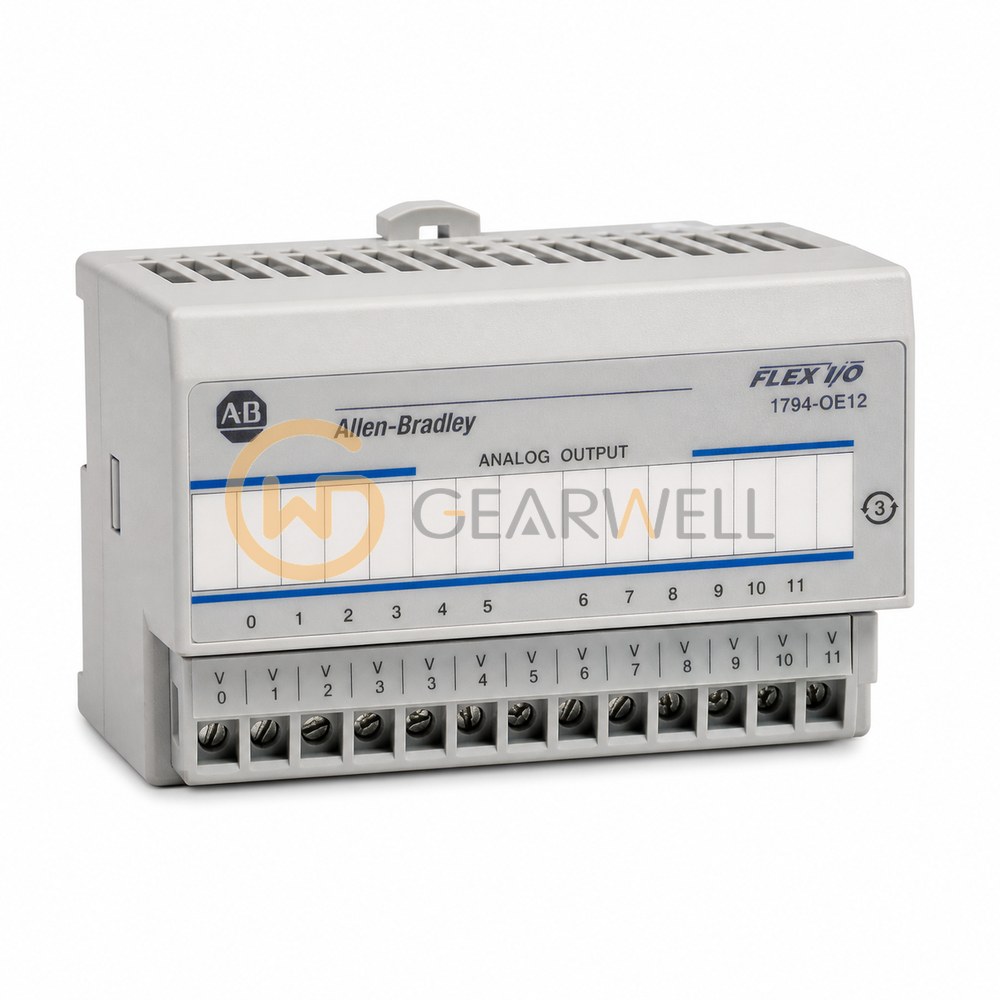

Allen-Bradley 1794-OE12 FLEX I/O 12-Channel Analog Output Module
- Brand
- Allen-Bradley
- Model
- 1794OE12
- GEARWELL SKU
- GWP-000002327
- Category
- PLCs & I/O
Key specifications
- Output channels
- 12 single-ended, nonisolated outputs
- Nominal supply voltage
- 24 V DC nominal
- Product type
- FLEX I/O 12-channel analog output module
- Output accuracy
- Voltage and current outputs: 0.1% of full scale at 25 °C (77 °F), including offset, gain, nonlinearity and repeatability errors.
- Manufacturer lifecycle status
- Active Mature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-OE12 is a FLEX I/O high-density analog output module with 12 outputs that each provide current in a 0…20 mA range or voltage in a ±10V range, with an out-of-range status bit per channel. It draws 320 mA at 24V DC and is rated for -20…+60 °C (-4…+140 °F). FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OE12 FLEX I/O 12-Channel Analog Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794OE12 |
| Category | PLCs & I/O |
| Output channels | 12 single-ended, nonisolated outputs |
| Nominal supply voltage | 24 V DC nominal |
| Product type | FLEX I/O 12-channel analog output module |
| Output accuracy | Voltage and current outputs: 0.1% of full scale at 25 °C (77 °F), including offset, gain, nonlinearity and repeatability errors. |
| Manufacturer lifecycle status | Active Mature |
| Output resolution | 16 bits |
| Operating temperature | -20…60 °C (-4…140 °F) |
| Current output load resistance | 0…750 Ω |
| Product description | FLEX I/O analog output module with 12 single-ended, nonisolated outputs. |
| Voltage output load current | 3.0 mA maximum |
