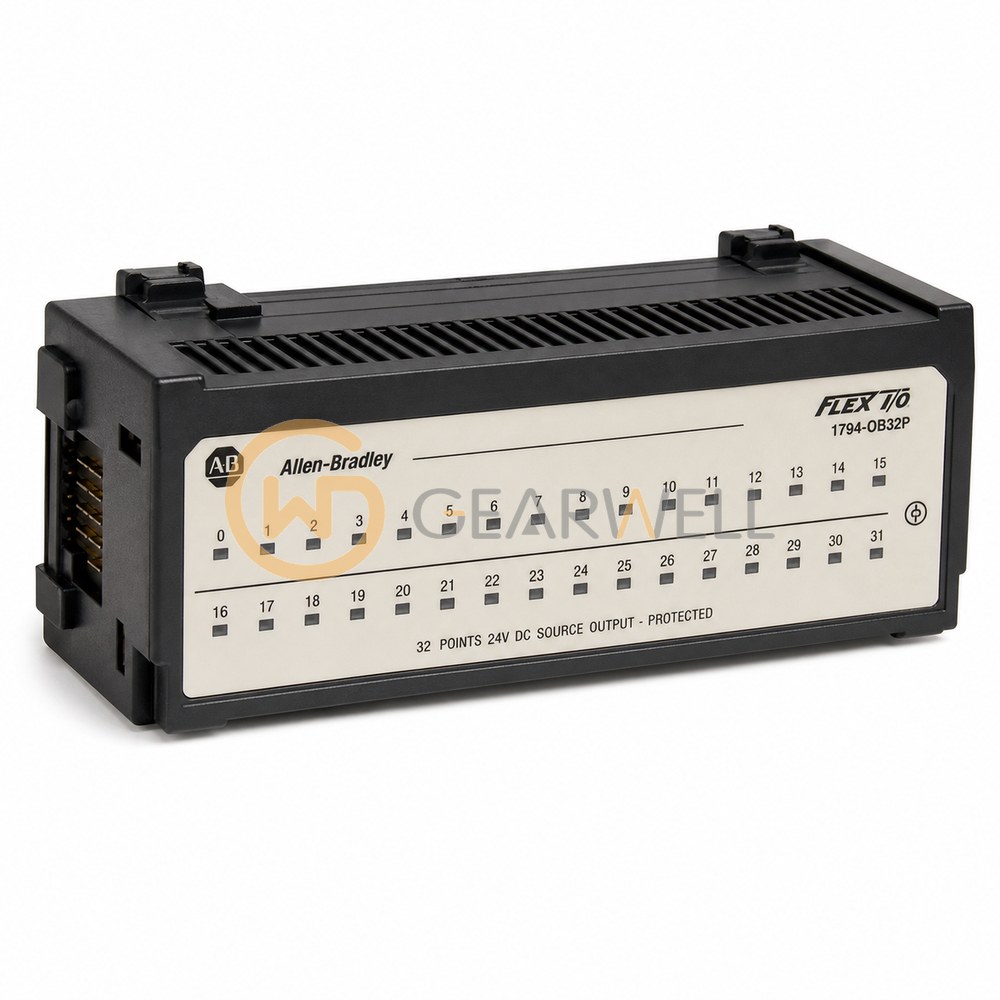

Allen-Bradley 1794-OB32P FLEX I/O 32-Point Protected DC Output Module
- Brand
- Allen-Bradley
- Model
- 1794OB32P
- GEARWELL SKU
- GWP-000000180
- Category
- PLCs & I/O
Key specifications
- Output channels
- 32 current-sourcing outputs, electronically protected
- Product type
- FLEX I/O 32-point protected DC digital output module
- Output protection
- Outputs are electronically protected.
- FlexBus current
- 80 mA at 5 V DC
- Manufacturer lifecycle status
- Active Mature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-OB32P is a FLEX I/O digital output module with 32 nonisolated, protected sourcing 24V DC outputs in groups (10…31.2V DC), up to 14 A per module. It mounts on a 1794-TB32 or 1794-TB32S terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OB32P FLEX I/O 32-Point Protected DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794OB32P |
| Category | PLCs & I/O |
| Output channels | 32 current-sourcing outputs, electronically protected |
| Product type | FLEX I/O 32-point protected DC digital output module |
| Output protection | Outputs are electronically protected. |
| FlexBus current | 80 mA at 5 V DC |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | 0…55 °C |
| Output signal delay | Off to on: 0.5 ms; on to off: 1.0 ms. |
| Product description | FLEX I/O module with 32 electronically protected current-sourcing outputs for 24 V DC systems. |
| Output current limits | Maximum 0.5 A per output; 14 A per module, limited to 6 A total for channels 0–15 and 8 A total for channels 16–31. |
