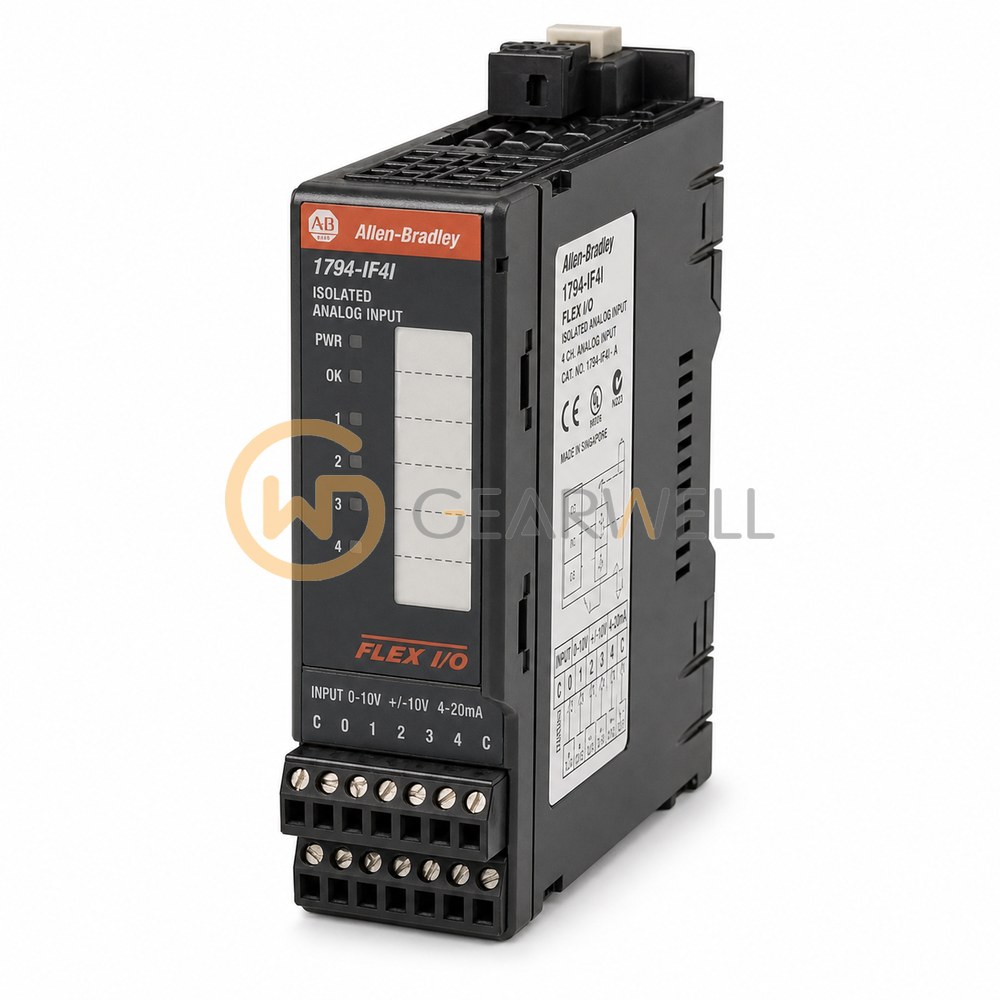

Allen-Bradley 1794-IF4I FLEX I/O 4-Channel Isolated Analog Input Module
- Brand
- Allen-Bradley
- Model
- 1794IF4I
- GEARWELL SKU
- GWP-000004058
- Category
- PLCs & I/O
Key specifications
- Selectable A/D conversion rates
- 150, 300, 600 or 1200 Hz; separate from the all-channel update interval.
- Configurable input ranges
- Current: 0…20 mA, 4…20 mA or ±20 mA. Voltage: 0…5 V, 0…10 V, ±5 V or ±10 V.
- Nominal supply voltage
- 24 V DC
- Product type
- FLEX I/O four-channel isolated analog input module
- Compatible terminal bases
- 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS or 1794-TBN.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-IF4I is a FLEX I/O isolated analog input module with 4 inputs with channel-to-channel isolation for 4…20 mA, 0…20 mA, ±20 mA, ±10V, 0…10V, ±5V or 0…5V, for 2-wire, 3-wire and 4-wire sensors. It draws 80 mA at 24V DC and is rated for 0…55 °C (32…131 °F). FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IF4I FLEX I/O 4-Channel Isolated Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IF4I |
| Category | PLCs & I/O |
| Selectable A/D conversion rates | 150, 300, 600 or 1200 Hz; separate from the all-channel update interval. |
| Configurable input ranges | Current: 0…20 mA, 4…20 mA or ±20 mA. Voltage: 0…5 V, 0…10 V, ±5 V or ±10 V. |
| Nominal supply voltage | 24 V DC |
| Product type | FLEX I/O four-channel isolated analog input module |
| Compatible terminal bases | 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS or 1794-TBN. |
| External supply | 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple. |
| Input resistance | Voltage: >10 MΩ. Current: <100 Ω with module power applied; 10 kΩ with 24 V DC removed. |
| Manufacturer lifecycle status | Active Mature |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Product description | Four isolated analog inputs; 16-bit unipolar or 15-bit-plus-sign bipolar resolution. |
