Allen-Bradley 1794-IB16XOB16P FLEX I/O 16-Input 16-Output DC Module
- Brand
- Allen-Bradley
- Model
- 1794IB16XOB16P
- GEARWELL SKU
- GWP-000004378
- Category
- PLCs & I/O
Key specifications
- Output channels
- 16 current-sourcing outputs, electronically protected
- Nominal supply voltage
- 24 V DC nominal
- Product type
- FLEX I/O 16-input 16-output protected DC digital combination module
- Output protection
- Outputs are electronically protected.
- FlexBus current
- 80 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

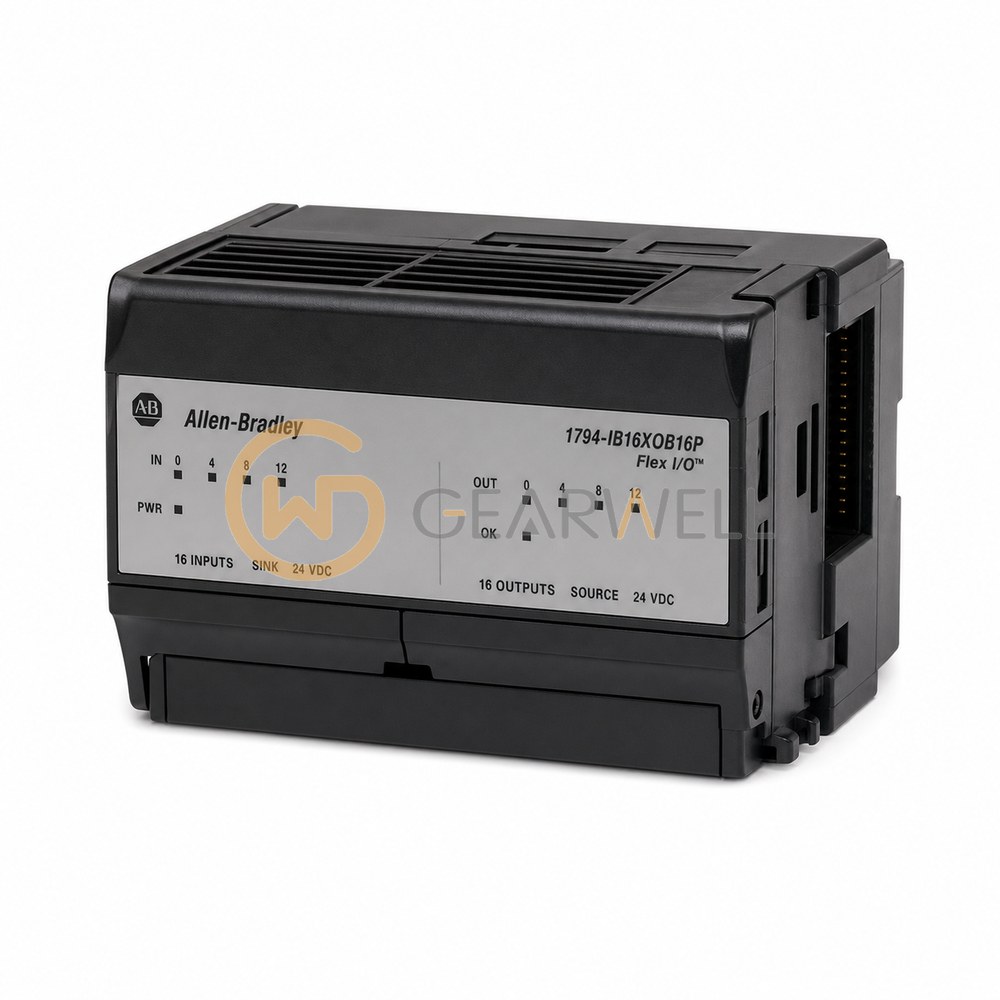

The Allen-Bradley 1794-IB16XOB16P is a FLEX I/O combination module with 16 nonisolated 24V DC inputs and 16 protected 24V DC outputs (10…31.2V DC), with up to 8 A per module on the outputs. It mounts on a 1794-TB32 or 1794-TB32S terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IB16XOB16P FLEX I/O 16-Input 16-Output DC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IB16XOB16P |
| Category | PLCs & I/O |
| Output channels | 16 current-sourcing outputs, electronically protected |
| Nominal supply voltage | 24 V DC nominal |
| Product type | FLEX I/O 16-input 16-output protected DC digital combination module |
| Output protection | Outputs are electronically protected. |
| FlexBus current | 80 mA |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | 0…55 °C |
| On-state input voltage and derating | 10…31.2 V DC; 24 V DC nominal. Maximum input/output voltage is 31.2 V DC through 40 °C, decreasing to 26.4 V DC at 55 °C for all mounting positions. |
| Product description | FLEX I/O combination module with 16 current-sinking inputs and 16 electronically protected current-sourcing outputs for 24 V DC systems. |
| Output current limits | 0.5 A per output; 8 A per module maximum across all 16 outputs. |
