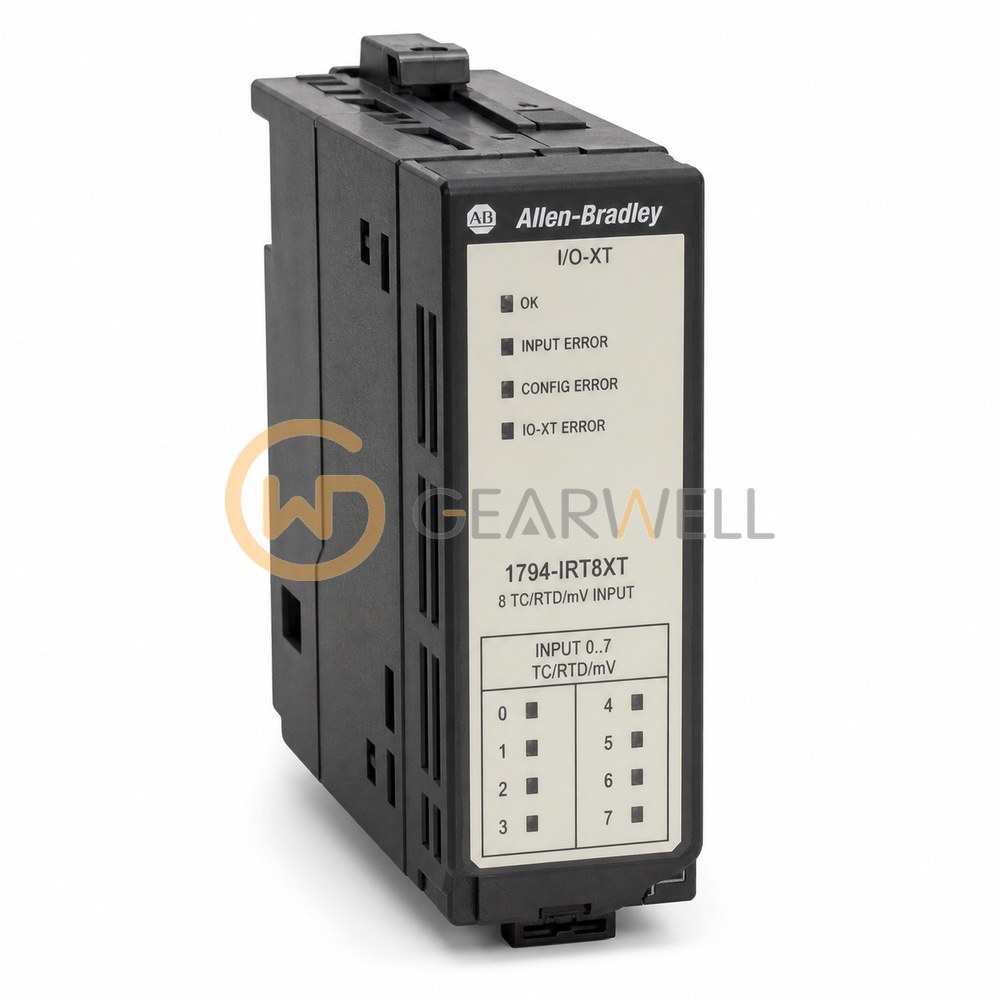

Allen-Bradley 1794-IRT8XT FLEX I/O-XT 8-Channel Thermocouple RTD Input Module
- Brand
- Allen-Bradley
- Model
- 1794IRT8XT
- GEARWELL SKU
- GWP-000001506
- Category
- PLCs & I/O
Key specifications
- Product type
- FLEX I/O-XT thermocouple/RTD input module
- Input channels (Series B)
- 8 channels in two groups of four; no isolation between individual channels.
- Compatible terminal bases (Series B)
- 1794-TB3G, 1794-TB3GS or 1794-TB3GK.
- External supply (Series B)
- 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple.
- Input resolution (Series B)
- 14 bits
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-IRT8XT is the extended temperature version of the 1794-IRT8 FLEX I/O thermocouple/RTD input module, with 8 inputs for thermocouples (-40…+100 mV DC), 2-wire, 3-wire and 4-wire RTDs (0…325 mV DC) and a 0…500 Ω resistance range, 14-bit resolution and a kit with 2 cold junction compensators. It draws 95 mA at 24V DC and is rated for -20…+70 °C (-4…+158 °F). FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IRT8XT FLEX I/O-XT 8-Channel Thermocouple RTD Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IRT8XT |
| Category | PLCs & I/O |
| Product type | FLEX I/O-XT thermocouple/RTD input module |
| Input channels (Series B) | 8 channels in two groups of four; no isolation between individual channels. |
| Compatible terminal bases (Series B) | 1794-TB3G, 1794-TB3GS or 1794-TB3GK. |
| External supply (Series B) | 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple. |
| Input resolution (Series B) | 14 bits |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | -20…70 °C |
| Supported thermocouples (Series B) | B, E, J, K, TXK/XK(L), N, R, S and T. |
| Product description | Eight-channel XT thermocouple, RTD and millivolt input module. |
