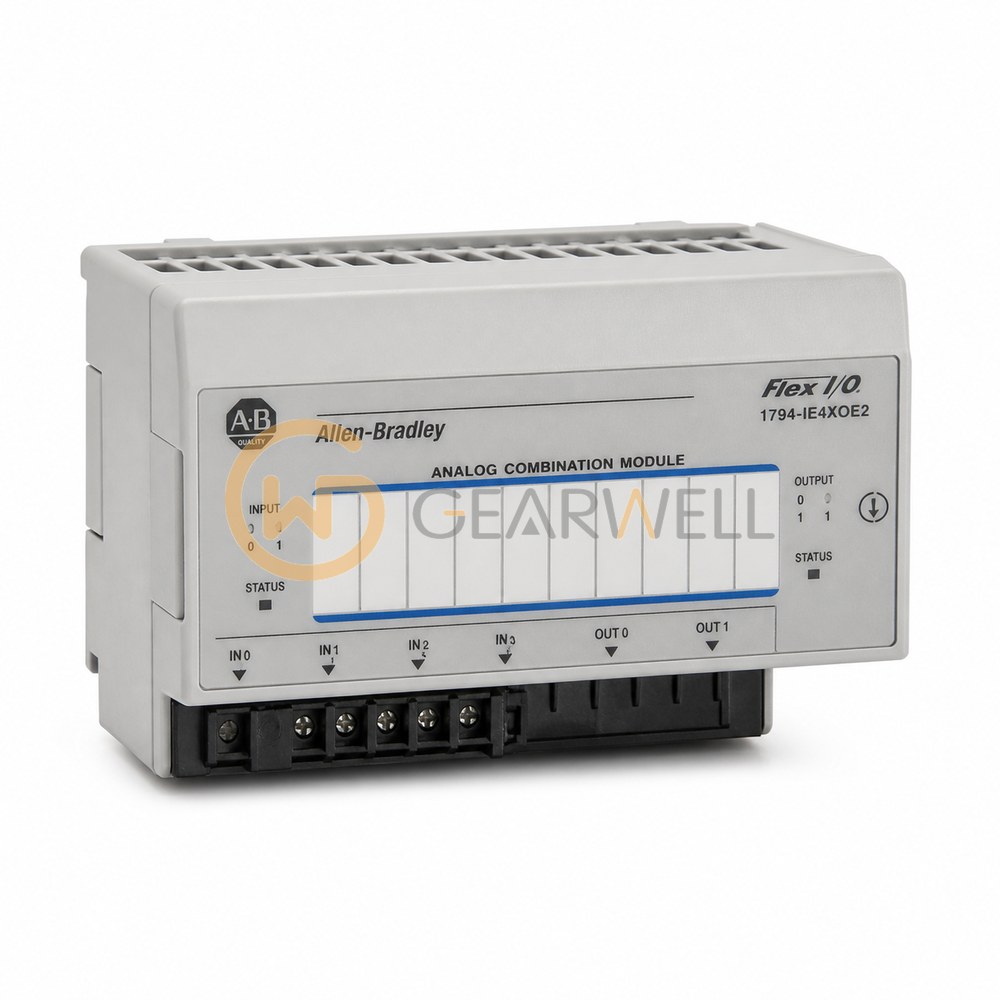

Allen-Bradley 1794-IE4XOE2 FLEX I/O 4-Input 2-Output Analog Module
- Brand
- Allen-Bradley
- Model
- 1794IE4XOE2
- GEARWELL SKU
- GWP-000004415
- Category
- PLCs & I/O
Key specifications
- Output channels
- 2 single-ended, nonisolated outputs.
- Resolution (Series B)
- Inputs: 12 bits unipolar or 11 bits plus sign bipolar; outputs: 12 bits plus sign.
- Nominal supply voltage
- 24 V DC
- Product type
- FLEX I/O four-input/two-output analog combination module
- Input and output ranges (Series B)
- Inputs and outputs: 4…20 mA or 0…20 mA; ±10 V or 0…10 V.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-IE4XOE2 is a FLEX I/O analog combination module with 4 inputs and 2 outputs, each individually configurable for 4…20 mA, 0…20 mA, ±10V or 0…10V. It draws 70 mA at 24V DC. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IE4XOE2 FLEX I/O 4-Input 2-Output Analog Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IE4XOE2 |
| Category | PLCs & I/O |
| Output channels | 2 single-ended, nonisolated outputs. |
| Resolution (Series B) | Inputs: 12 bits unipolar or 11 bits plus sign bipolar; outputs: 12 bits plus sign. |
| Nominal supply voltage | 24 V DC |
| Product type | FLEX I/O four-input/two-output analog combination module |
| Input and output ranges (Series B) | Inputs and outputs: 4…20 mA or 0…20 mA; ±10 V or 0…10 V. |
| Input channels (Series B) | 4 single-ended, nonisolated inputs. |
| Input conversion time (Series B) | 256 µs for all input channels. |
| Manufacturer lifecycle status | End of Life; manufacturer discontinuation scheduled for 28 February 2027. |
| Operating temperature | 0…55 °C (32…131 °F) |
| Product description | Four analog inputs and two analog outputs with configurable current or voltage signals. |
| Output step response (Series B) | 24 ms to 63% of the final value, voltage or current output. |
