Allen-Bradley 1794-IV16 FLEX I/O 16-Point DC Sourcing Input Module
- Brand
- Allen-Bradley
- Model
- 1794IV16
- GEARWELL SKU
- GWP-000003160
- Category
- PLCs & I/O
Key specifications
- Nominal supply voltage
- 24 V DC nominal
- Product type
- FLEX I/O 16-point DC sourcing input module
- On-state input current
- 2 mA minimum; 8 mA nominal at 24 V DC; 11 mA maximum.
- Input channels
- 16 nonisolated current-sourcing inputs
- FlexBus current
- 30 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

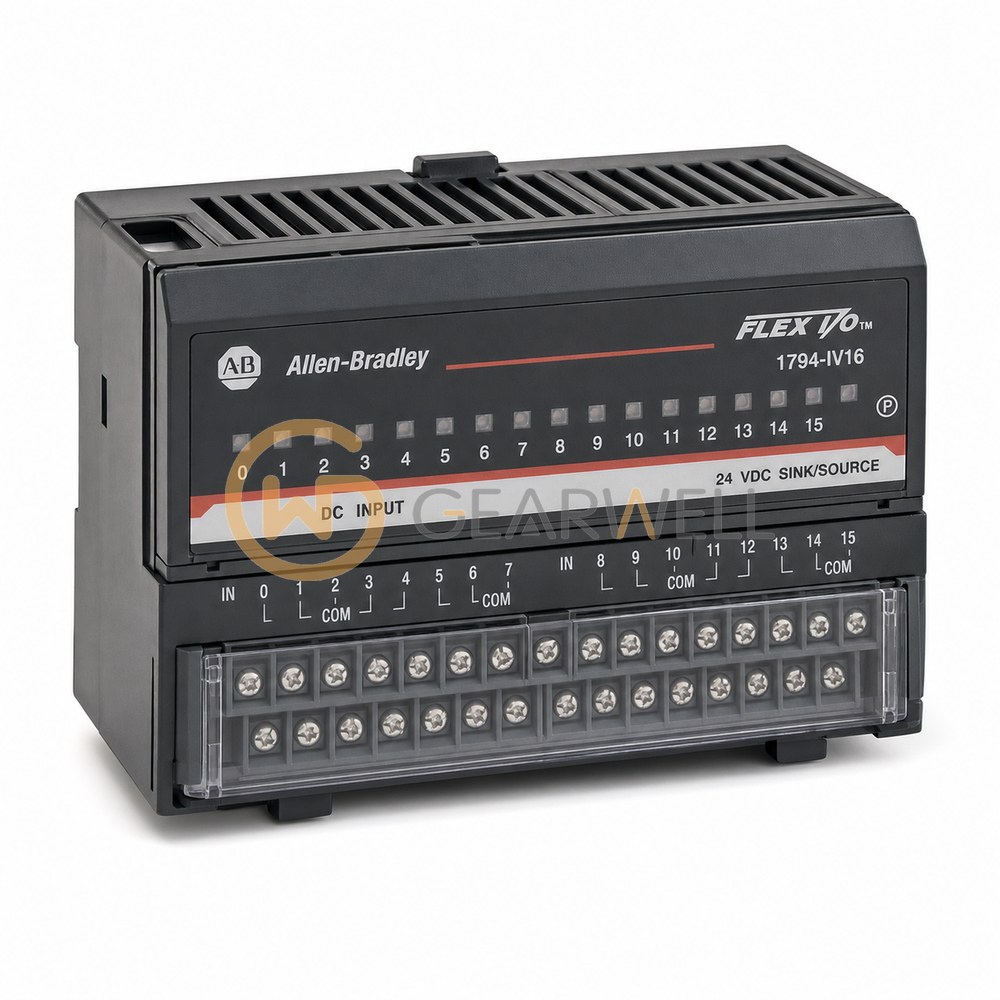

The Allen-Bradley 1794-IV16 is a FLEX I/O digital input module with 16 sourcing 24V DC inputs, an on-state input voltage of 10…31.2V DC and 8 mA nominal at 24V DC. It mounts on a 1794-TB3, 1794-TB3S, 1794-TB3K or 1794-TB3SK terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IV16 FLEX I/O 16-Point DC Sourcing Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IV16 |
| Category | PLCs & I/O |
| Nominal supply voltage | 24 V DC nominal |
| Product type | FLEX I/O 16-point DC sourcing input module |
| On-state input current | 2 mA minimum; 8 mA nominal at 24 V DC; 11 mA maximum. |
| Input channels | 16 nonisolated current-sourcing inputs |
| FlexBus current | 30 mA |
| Manufacturer lifecycle status | Active Mature |
| Input filter time | Selectable 0.25, 0.5, 1, 2, 4, 8, 16 or 32 ms for off-to-on and on-to-off transitions; 0.25 ms default. |
| Operating temperature | 0…55 °C (32…131 °F) |
| On-state input voltage and derating | 10…31.2 V DC; 24 V DC nominal. Maximum 31.2 V DC through 37 °C in normal mounting, decreasing to 28.5 V DC at 55 °C. In other mounting positions, maximum 31.2 V DC through 32 °C, decreasing to 27.5 V DC at 55 °C. |
| Product description | FLEX I/O module with 16 nonisolated current-sourcing 24 V DC inputs and configurable input filters. |
