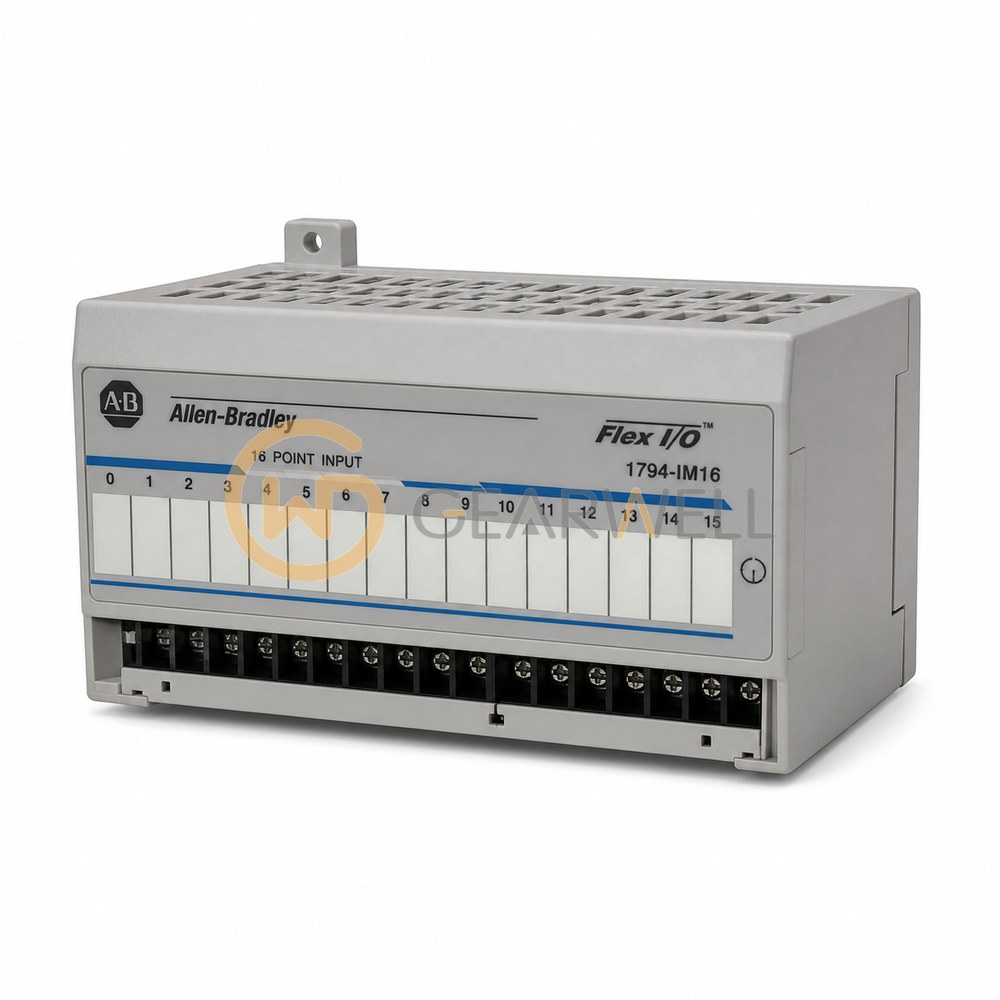

Allen-Bradley 1794-IM16 FLEX I/O 16-Point 240 V AC Input Module
- Brand
- Allen-Bradley
- Model
- 1794IM16
- GEARWELL SKU
- GWP-000001024
- Category
- PLCs & I/O
Key specifications
- Nominal supply voltage
- 240 V AC nominal
- Product type
- FLEX I/O 16-point AC digital input module
- On-state input current
- 5.30 mA minimum; 13.29 mA maximum; 11 mA nominal at 240 V AC.
- Input channels
- 16 nonisolated inputs
- FlexBus current
- 32 mA at 5 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-IM16 is a FLEX I/O digital input module with 16 nonisolated 240V AC inputs and an on-state input voltage of at least 159V AC. It mounts on a 1794-TBN or 1794-TBNK terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IM16 FLEX I/O 16-Point 240 V AC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IM16 |
| Category | PLCs & I/O |
| Nominal supply voltage | 240 V AC nominal |
| Product type | FLEX I/O 16-point AC digital input module |
| On-state input current | 5.30 mA minimum; 13.29 mA maximum; 11 mA nominal at 240 V AC. |
| Input channels | 16 nonisolated inputs |
| FlexBus current | 32 mA at 5 V DC |
| Manufacturer lifecycle status | End of Life; manufacturer discontinuation scheduled for 31 October 2026. |
| Operating temperature | 0…55 °C |
| On-state input voltage | 159…264 V AC; 240 V AC nominal |
| Product description | FLEX I/O module with 16 nonisolated AC inputs, rated 240 V AC nominal. |
| Recommended terminal bases | 1794-TBN or 1794-TBNK. |
