Allen-Bradley 1794-IB16D FLEX I/O 16-Point Diagnostic DC Input Module
- Brand
- Allen-Bradley
- Model
- 1794IB16D
- GEARWELL SKU
- GWP-000002714
- Category
- PLCs & I/O
Key specifications
- Diagnostic functions
- Open-wire and short-circuit diagnostic functions; detection depends on the connected sensor and wiring.
- Nominal supply voltage
- 24 V DC nominal
- Product type
- FLEX I/O 16-point diagnostic DC sinking input module
- On-state input current
- 2.0 mA minimum; 12.1 mA maximum.
- Input channels
- 16 current-sinking inputs; no isolation between individual channels.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

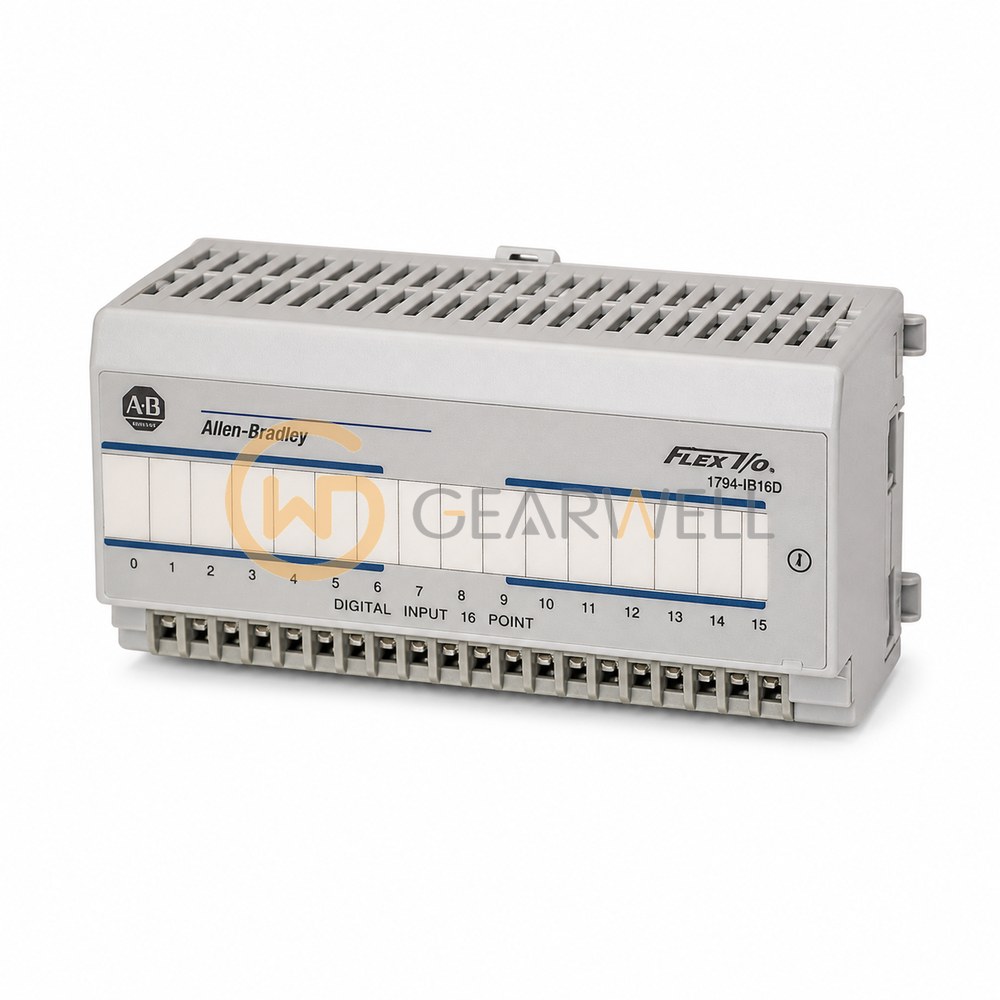

The Allen-Bradley 1794-IB16D is a FLEX I/O diagnostic input module with 16 sinking 24V DC inputs (10…31.2V DC on-state) that detects and reports open or shorted field wiring. It mounts on a 1794-TB32 or 1794-TB32S terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IB16D FLEX I/O 16-Point Diagnostic DC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IB16D |
| Category | PLCs & I/O |
| Diagnostic functions | Open-wire and short-circuit diagnostic functions; detection depends on the connected sensor and wiring. |
| Nominal supply voltage | 24 V DC nominal |
| Product type | FLEX I/O 16-point diagnostic DC sinking input module |
| On-state input current | 2.0 mA minimum; 12.1 mA maximum. |
| Input channels | 16 current-sinking inputs; no isolation between individual channels. |
| FlexBus current | 30 mA at 5 V DC |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | 0…55 °C |
| On-state input voltage and derating | 10…31.2 V DC; 24 V DC nominal. Maximum 31.2 V DC through 40 °C, decreasing to 26.4 V DC at 55 °C. |
| Product description | FLEX I/O module with 16 current-sinking 24 V DC inputs and sensor wiring diagnostics. |
