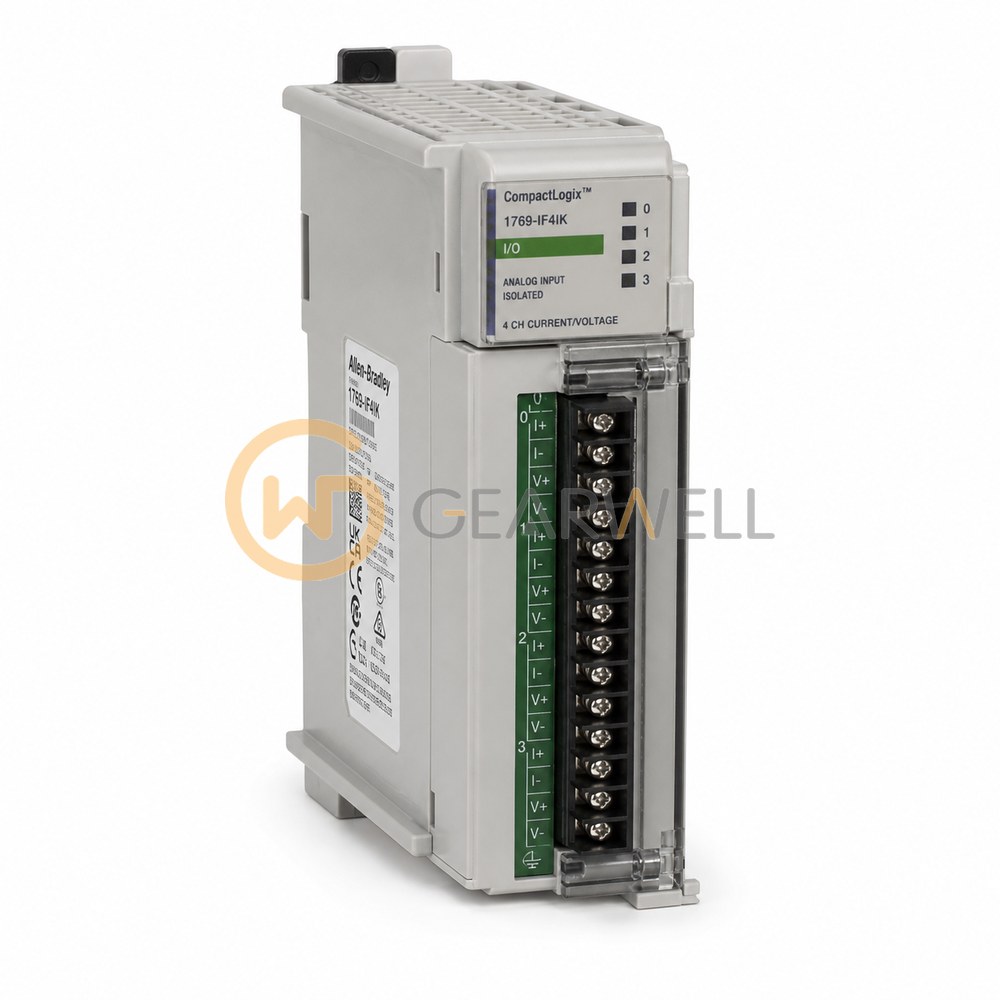

Allen-Bradley 1769-IF4IK Compact I/O 4-Channel Isolated Conformal-Coated Analog Input Module
- Brand
- Allen-Bradley
- Model
- 1769IF4IK
- GEARWELL SKU
- GWP-000002506
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm
- Input resolution
- 16 bits unipolar; 15 bits plus sign bipolar at 50/60 Hz filter settings
- Input ranges
- +/-10 V, 0-10 V, 0-5 V and 1-5 V; 0-20 mA and 4-20 mA
- Product type
- Conformal-coated isolated analog input module
- Converter type
- Delta-sigma
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 1769-IF4IK Compact I/O 4-Channel Isolated Conformal-Coated Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IF4IK |
| Category | PLCs & I/O |
| Dimensions | 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm |
| Input resolution | 16 bits unipolar; 15 bits plus sign bipolar at 50/60 Hz filter settings |
| Input ranges | +/-10 V, 0-10 V, 0-5 V and 1-5 V; 0-20 mA and 4-20 mA |
| Product type | Conformal-coated isolated analog input module |
| Converter type | Delta-sigma |
| Input channels | 4 isolated differential |
| Input impedance | 1 Mohm voltage input; 249 ohm current input |
| Maximum bus current draw | 140 mA at 5 V DC; 110 mA at 24 V DC |
| Maximum heat dissipation | 3.0 W |
| Power supply distance rating | 8 modules |
| Rated working voltage | 30 V AC/DC |
