Allen-Bradley 1769-IF4XOF2K Compact I/O 4-Input / 2-Output Conformal-Coated Analog Module
- Brand
- Allen-Bradley
- Model
- 1769IF4XOF2K
- GEARWELL SKU
- GWP-000002077
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm
- Nominal input and output resolution
- 8 bits plus sign
- Input ranges
- 0-10 V and 0-20 mA
- Product type
- Conformal-coated analog combination input/output module
- Output ranges
- 0-10 V and 0-20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

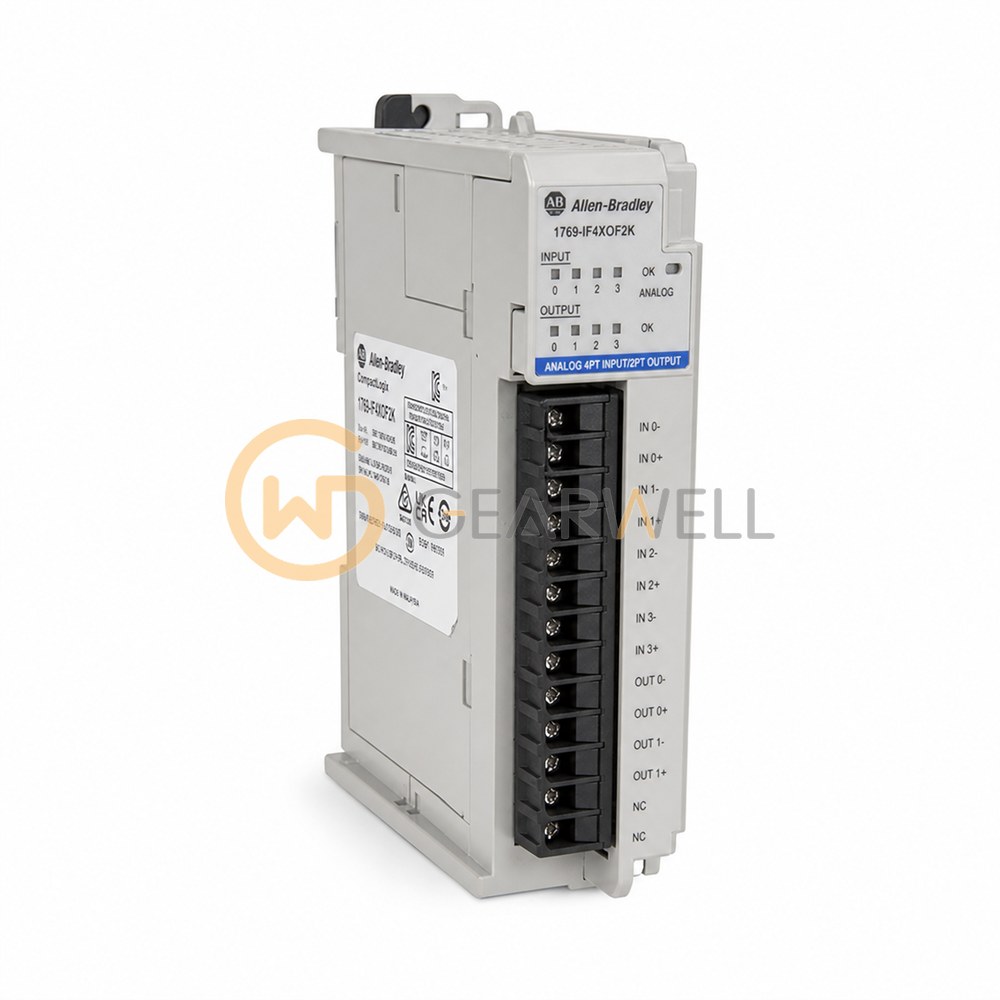

The Allen-Bradley 1769-IF4XOF2K is a Compact I/O combination analog module with 4 differential or single-ended inputs and 2 single-ended outputs, each for 0…10V or 0…20 mA, with a resolution of 8 bits plus sign. It draws 120 mA at 5.1V and 160 mA at 24V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation. This K version adds conformal coating.
Technical reference
| Product name | Allen-Bradley 1769-IF4XOF2K Compact I/O 4-Input / 2-Output Conformal-Coated Analog Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IF4XOF2K |
| Category | PLCs & I/O |
| Dimensions | 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm |
| Nominal input and output resolution | 8 bits plus sign |
| Input ranges | 0-10 V and 0-20 mA |
| Product type | Conformal-coated analog combination input/output module |
| Output ranges | 0-10 V and 0-20 mA |
| Input channels | 4 differential or single-ended |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Output channels | 2 single-ended |
| Maximum bus current draw | 120 mA at 5.1 V DC; 160 mA at 24 V DC |
| Maximum heat dissipation | 3.03 W |
| Power supply distance rating | 8 modules |
