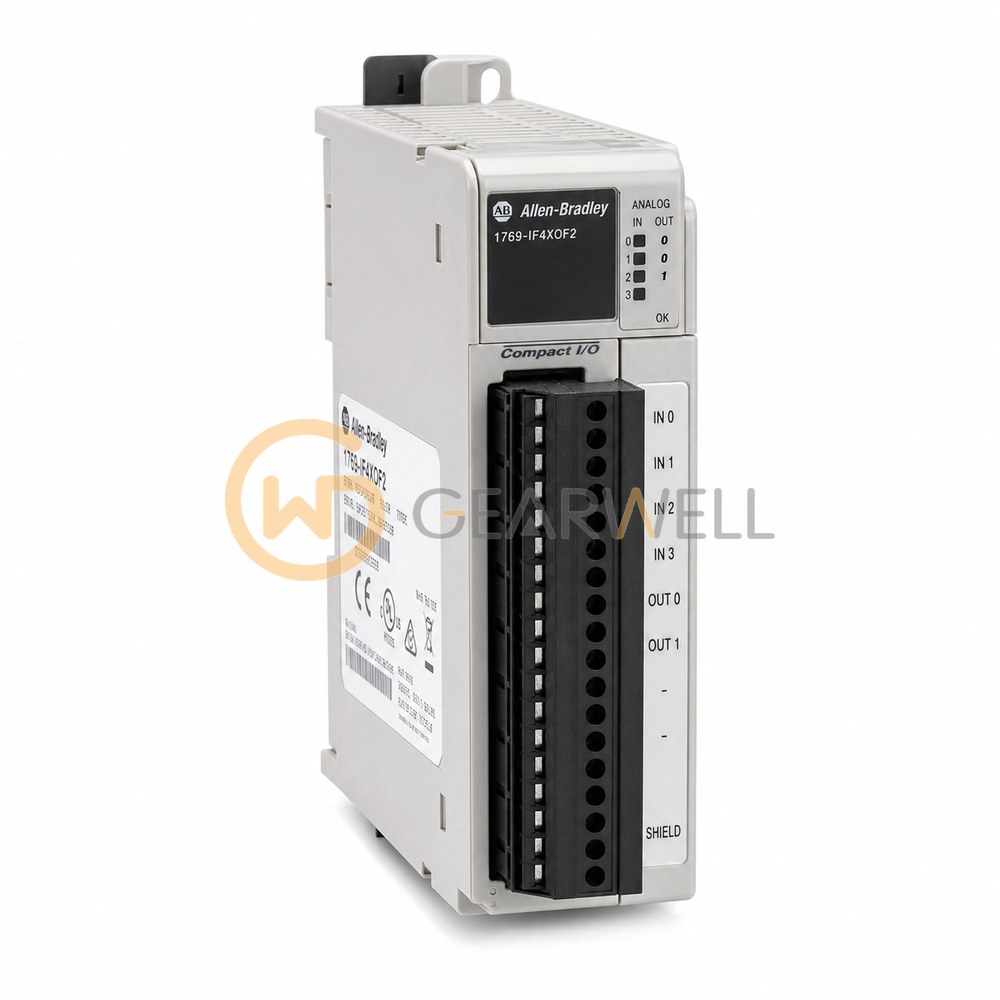

Allen-Bradley 1769-IF4XOF2 Compact I/O 4-Input / 2-Output Analog Module
- Brand
- Allen-Bradley
- Model
- 1769IF4XOF2
- GEARWELL SKU
- GWP-000001988
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Isolation test and working voltage
- 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage
- Nominal input and output resolution
- 8 bits plus sign
- Input ranges
- 0-10 V and 0-20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IF4XOF2 is a Compact I/O combination analog module with 4 differential or single-ended inputs and 2 single-ended outputs, each for 0…10V or 0…20 mA, with a resolution of 8 bits plus sign. It draws 120 mA at 5.1V and 160 mA at 24V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IF4XOF2 Compact I/O 4-Input / 2-Output Analog Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IF4XOF2 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Isolation test and working voltage | 500 V AC or 710 V DC for 60 s, qualification test, input/output group to bus; 30 V AC/DC working voltage |
| Nominal input and output resolution | 8 bits plus sign |
| Input ranges | 0-10 V and 0-20 mA |
| Maximum bus current draw | 120 mA at 5.1 V DC; 160 mA at 24 V DC |
| Output ranges | 0-10 V and 0-20 mA |
| Channels | 4 analog inputs and 2 analog outputs |
| Input wiring | Differential or single-ended |
| Output wiring | Single-ended |
| Power supply distance rating | 8 modules |
